Understanding the volatile Keyword in Embedded C

The volatile keyword is one of the most misunderstood yet critical qualifiers in embedded C programming. While it appears simple on the surface, improper use of volatile can lead to subtle bugs that are notoriously difficult to debug, especially in real-time systems where timing and deterministic behavior are paramount.

What Does volatile Actually Mean?

In C, volatile is a type qualifier that tells the compiler that a variable’s value can change at any time—without any action being taken by the code the compiler finds nearby. This has three important implications:

1. The compiler must not optimize away accesses to the variable
2. The compiler must not reorder accesses to the variable relative to other memory operations
3. Every access must be a genuine read/write to the memory location

Without volatile, the compiler assumes it knows when a variable’s value changes and may optimize code in ways that break embedded systems interacting with hardware.

Common Use Cases in Embedded Systems

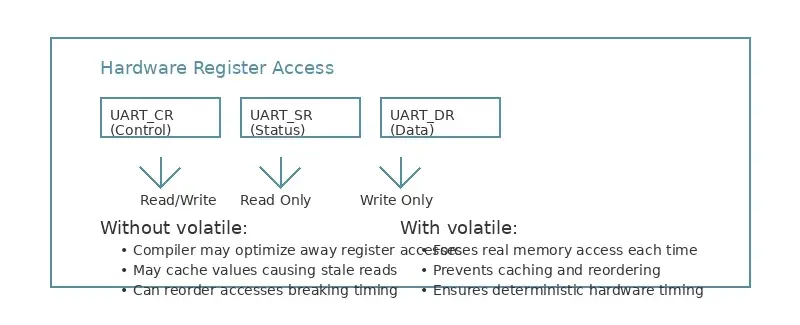

Hardware Registers

The most common use of volatile is for memory-mapped hardware registers:

#define UART_DR   (*(volatile uint32_t*)0x40011000)  // Data register
#define UART_SR   (*(volatile uint32_t*)0x40011004)  // Status register

void uart_send(char c) {
    // Wait until transmit buffer is empty
    while (!(UART_SR & 0x00000080)) ;  // Must read SR each time

    // Send character
    UART_DR = c;  // Must write to DR each time
}

Without volatile, the compiler might:

• Cache the status register value in a register and never re-read it
• Optimize away the write to the data register if it thinks the value isn’t used
• Reorder the memory accesses, breaking hardware timing requirements

Interrupt Service Routines (ISRs)

Variables shared between ISRs and main code must be declared volatile:

volatile uint16_t encoder_count = 0;

void TIM2_IRQHandler(void) {
    if (TIM2->SR & TIM_SR_UIF) {
        encoder_count++;  // Modified in ISR
        TIM2->SR &= ~TIM_SR_UIF;
    }
}

int main(void) {
    // ... initialization ...

    while (1) {
        uint16_t count = encoder_count;  // Must read fresh value each time
        // Process count...
    }
}

Without volatile on encoder_count, the compiler might:

• Cache the value in a register and never see updates from the ISR
• Optimize away multiple reads in a loop, assuming the value doesn’t change

Common Misconceptions and Pitfalls

Misconception: volatile Prevents All Optimization

volatile only prevents optimization on that specific variable. It does not:

• Prevent compiler reordering of other memory operations
• Act as a memory barrier or synchronization primitive
• Make operations atomic (unless the underlying hardware guarantees it)

For proper synchronization, you still need memory barriers or atomic operations:

#include <stdatomic.h>

volatile atomic_uint shared_flag = 0;

void isr_handler(void) {
    atomic_store_explicit(&shared_flag, 1, memory_order_release);
}

void main_loop(void) {
    if (atomic_load_explicit(&shared_flag, memory_order_acquire)) {
        // Process flag
        atomic_store_explicit(&shared_flag, 0, memory_order_relaxed);
    }
}

Pitfall: Pointer to volatile vs. volatile Pointer

volatile uint32_t* reg_ptr;    // Pointer to volatile uint32_t (correct for hardware)
uint32_t volatile* reg_ptr2;   // Same as above
uint32_t* volatile reg_ptr3;   // Volatile pointer to non-volatile int (rarely what you want)

For hardware registers, you almost always want “pointer to volatile”.

Pitfall: Structures and Arrays

When dealing with structures or arrays containing hardware registers, you need to apply volatile correctly:

// Correct: Each register is volatile
typedef struct {
    volatile uint32_t CR;  // Control register
    volatile uint32_t SR;  // Status register
    volatile uint32_t DR;  // Data register
} UART_TypeDef;

// Fragile: Relies entirely on the pointer's qualification
typedef struct {
    uint32_t CR;
    uint32_t SR;
    uint32_t DR;
} UART_TypeDef;

volatile UART_TypeDef* UART1 = (volatile UART_TypeDef*)0x40011000;  // Highly fragile!

In standard C, accessing struct members through a pointer-to-volatile (e.g. volatile UART_TypeDef* UART1) does technically qualify as a volatile access. However, this is considered extremely fragile in production firmware. If a developer accidentally assigns this pointer to a non-volatile pointer (e.g. UART_TypeDef* p = UART1), the volatile qualifier is silently cast away, and subsequent accesses can be optimized away by the compiler. Declaring the struct members themselves as volatile inside the struct definition is the industry standard (e.g., in CMSIS headers) because it guarantees that every register access is volatile regardless of how the pointer itself is qualified.

Best Practices

1. Use volatile only when necessary - Overuse can hurt performance
2. Apply it at the point of declaration - Not just when casting pointers
3. Remember it’s not a synchronization primitive - Use proper RTOS primitives or atomic variables for thread safety
4. Be consistent - If a variable needs volatile in one place, it needs it everywhere it’s accessed
5. Understand your hardware - Some architectures have stronger memory models that reduce the need for volatile in certain cases

Performance Considerations

While volatile prevents problematic optimizations, it does come with a cost:

• Forced Memory Access: Each access generates a real memory read/write, bypassing the CPU cache or internal registers.
• Optimization Barrier: It prevents the compiler from reordering code around the access, which can inhibit instruction scheduling and pipelining.
• Bus Overhead: Frequent reads to peripheral registers can saturate the system bus in high-speed applications.

In performance-critical code, follow these patterns to balance hardware accuracy with efficiency:

1. Polling a Register

In a polling loop, you cannot minimize reads because you need the most current hardware state. However, you can improve code quality by defining a constant pointer.

// Less optimal - Hardcoded address and messy syntax
// Note: Ensure parentheses are correct so you dereference before ANDing
while (*(volatile uint32_t*)0x40011000 & 0x01) {
    // Do work
}

// Better - Improved readability and pointer safety
// The 'const' ensures the pointer address itself isn't accidentally changed.
// Note: This still performs a fresh memory read every iteration.
volatile uint32_t* const status_reg = (volatile uint32_t*)0x40011000;
while (*status_reg & 0x01) {
    // Do work
}

2. Truly Minimizing Reads (The Snapshot Pattern)

If you need to check multiple flags in a single register, do not read the register multiple times. Instead, take a “snapshot” into a local variable. This reduces memory bus traffic and ensures you are evaluating a consistent state.

// Best - Minimizing volatile reads via snapshotting
volatile uint32_t* const status_reg = (volatile uint32_t*)0x40011000;

// Read once from hardware
uint32_t status = *status_reg;

// Perform multiple logic checks on the local copy (fast, register-based)
if ((status & 0x01) && !(status & 0x02)) {
    // Logic based on a single point-in-time state
}

Conclusion

The volatile keyword is essential for correct embedded C programming when dealing with hardware and asynchronous events. Understanding what it does (and doesn’t do) is crucial for writing reliable firmware. When used correctly, it ensures that your code interacts with hardware exactly as intended, preventing entire classes of subtle, timing-dependent bugs.

Remember: volatile tells the compiler “I know better than you when this value might change”—use it wisely, and always verify your assumptions about hardware behavior through careful reading of datasheets and reference manuals.
