FreeRTOS Memory Pool: Zero-Copy Data Transfer

Introduction

In real-time embedded systems, efficient data transfer between tasks is critical for meeting deadlines and minimizing CPU overhead. Traditional approaches often involve copying data from one buffer to another, which consumes CPU cycles and introduces non-deterministic delays. This article explores how FreeRTOS memory pools enable zero-copy data transfer, eliminating memcpy overhead and improving system predictability.

We’ll cover:

• The performance problems with traditional memcpy-based approaches
• How FreeRTOS memory pools work internally
• Step-by-step implementation of zero-copy data transfer
• Performance measurements and trade-offs
• Practical considerations and common pitfalls
• Real-world use cases where this technique excels

The Problem with Memcpy

When tasks communicate by copying data through intermediate buffers, each byte must be read and written, consuming CPU time proportional to the data size. For large data structures or high-frequency communication, this overhead can become significant. Moreover, memcpy execution time varies with data size, making timing analysis more complex and potentially causing deadline misses in hard real-time systems.

Consider a system where Task A produces 1KB sensor readings every millisecond (1,000 Hz) and Task B processes them:

• Memcpy overhead: Each transfer requires ~10–20 μs on typical Cortex-M microcontrollers.
• CPU time wasted: Consumes 10–20 ms per second (1.0%–2.0% continuous core utilization), adding up to ~87.6–175.2 hours of CPU time spent solely on memory copies each year.
• Determinism impact: Variable execution time proportional to buffer payload introduces scheduling jitter and complicates Worst-Case Execution Time (WCET) analysis.

In safety-critical systems following ISO 26262 or IEC 61508, such unpredictability can violate ASIL or SIL requirements. Even in non-safety applications, variable latency causes jitter that degrades control loop performance.

FreeRTOS Memory Pools Internals

While FreeRTOS does not provide a native memory pool API in its core kernel (unlike some other RTOSes or CMSIS-RTOS wrappers), we can implement a highly efficient, deterministic memory pool using standard FreeRTOS queues. Unlike the general-purpose heap implementation in heap_4.c, a custom memory pool offers:

Key Characteristics

• Deterministic allocation: Queue operations (xQueueReceive and xQueueSend) execute in constant time for pointer-sized items, with no heap traversal or search involved.
• No external fragmentation: All blocks are identical in size.
• Predictable memory usage: Memory is pre-allocated as a static array at compile time.
• Thread-safe: FreeRTOS queues safely handle concurrent access from multiple tasks and ISRs.

Implementation Details

The memory pool consists of:

1. A statically allocated memory array: uint8_t pool_memory[POOL_SIZE * BLOCK_SIZE];
2. A FreeRTOS Queue acting as a free list: QueueHandle_t memory_pool;

When a block is allocated:

1. The task calls xQueueReceive to retrieve a pointer from the free list.
2. If a pointer is available, it is returned immediately.
3. If not, the task can block for a specified timeout.

When a block is freed:

1. The task calls xQueueSend to push the pointer back into the queue.
2. Any tasks blocked waiting for memory are immediately unblocked.

This implementation ensures allocation and deallocation take constant time regardless of pool usage, avoiding the variable execution time of pvPortMalloc().

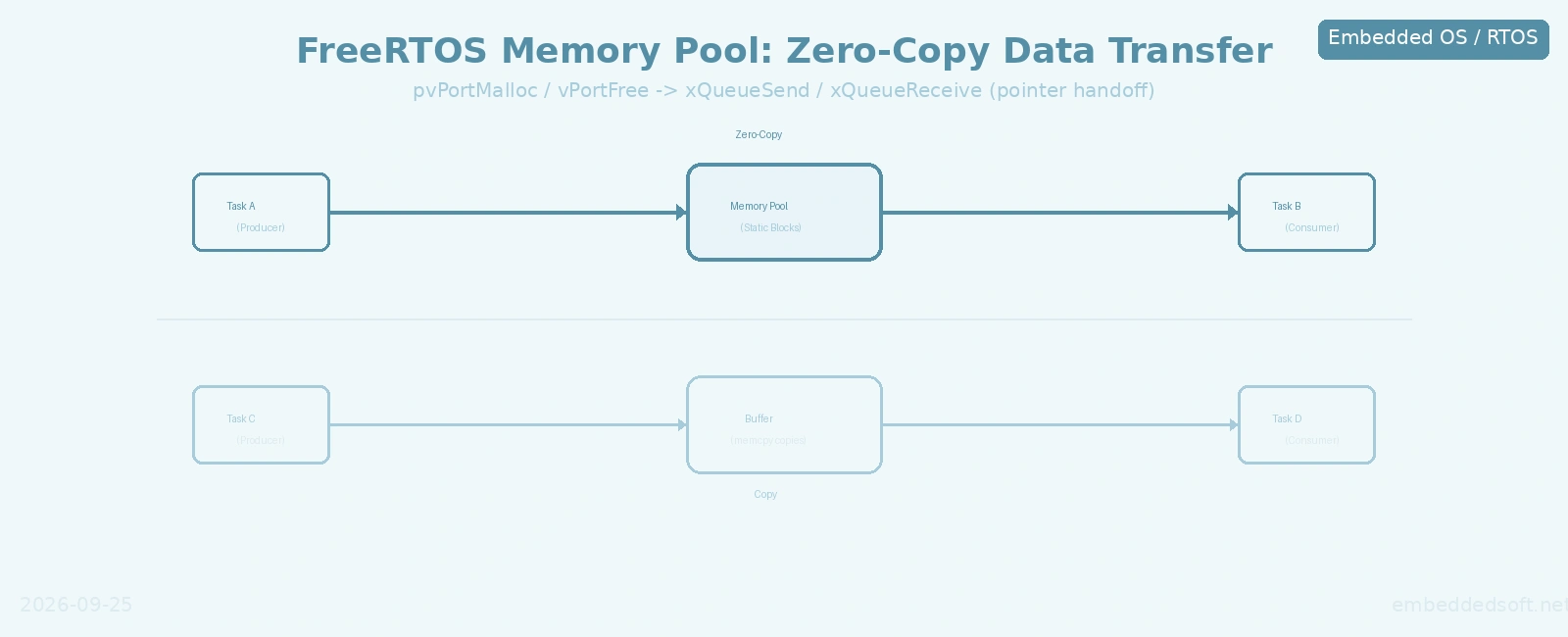

Zero-Copy Implementation Pattern

The zero-copy pattern uses FreeRTOS queues to pass pointers to memory pool blocks, ensuring data resides in a single memory location throughout its lifetime.

+--------------------------------------------------------------------+
|                FREERTOS ZERO-COPY MEMORY POOL FLOW                 |
+--------------------------------------------------------------------+
|                                                                    |
|  +--------------------------------------------------------------+  |
|  |   Static RAM: uint8_t pool_memory[POOL_SIZE * BLOCK_SIZE]    |  |
|  |   (Stationary storage: payload is never copied in memory)    |  |
|  +--------------------------------------------------------------+  |
|                                 |                                  |
|                 initialize_memory_pool() slices &                  |
|                 fills queue with block pointers                    |
|                                 v                                  |
|  +----------------------+                +----------------------+  |
|  |     memory_pool      |--[1. Alloc]--->|    vProducerTask     |  |
|  | (Free Pointer Queue) | xQueueReceive  | * Writes payload     |  |
|  | Holds: void* [10]    |                |   directly to *pBlock|  |
|  +----------------------+                +----------------------+  |
|             ^                                        |             |
|             |                                        |             |
|     [4. Return Block]                       [2. Handoff Pointer]   |
|    xQueueSend(pool, &p)                     xQueueSend(data, &p)   |
|             |                                        |             |
|             |                                        v             |
|  +----------------------+                +----------------------+  |
|  |    vConsumerTask     |<--[3. Read]----|      xDataQueue      |  |
|  | * Reads payload      |  xQueueReceive | (Zero-Copy Data Q)   |  |
|  |   in-place (no copy) |                | Holds: void* [10]    |  |
|  +----------------------+                +----------------------+  |
|                                                                    |
+--------------------------------------------------------------------+

Step-by-Step Data Flow

1. Memory Pool Initialization

#define POOL_SIZE      10
#define BLOCK_SIZE     1024  // Must match maximum message size

// Statically allocate the memory for the pool blocks
// Aligned to 32 bytes for cache line optimization and DMA compatibility
uint8_t pool_memory[POOL_SIZE * BLOCK_SIZE] __attribute__((aligned(32)));

// Queue handle to hold pointers to free blocks
QueueHandle_t memory_pool = NULL;

// Queue handle to transfer active data pointers between tasks
QueueHandle_t xDataQueue = NULL;

BaseType_t initialize_memory_pool(void)
{
    // Create queues to manage pointer handles (sizeof(void*))
    memory_pool = xQueueCreate(POOL_SIZE, sizeof(void *));
    xDataQueue  = xQueueCreate(POOL_SIZE, sizeof(void *));

    if ((memory_pool == NULL) || (xDataQueue == NULL)) {
        return pdFAIL;
    }

    // Fill the free list queue with pointers to our static blocks
    for (int i = 0; i < POOL_SIZE; i++) {
        void *block_ptr = &pool_memory[i * BLOCK_SIZE];
        if (xQueueSend(memory_pool, &block_ptr, 0) != pdPASS) {
            return pdFAIL;
        }
    }

    return pdPASS;
}

2. Task A (Producer) Workflow

void vProducerTask(void *pvParameters)
{
    const TickType_t xBlockTime = pdMS_TO_TICKS(5);
    void *pBlock = NULL;
    uint8_t *pData = NULL;

    for (;;) {
        // Wait for event trigger or periodic hardware timer
        uint32_t ulNotification = ulTaskNotifyTake(pdTRUE, xBlockTime);
        if (ulNotification > 0) {
            // Allocate block from memory pool (get pointer from free list)
            if (xQueueReceive(memory_pool, &pBlock, portMAX_DELAY) == pdPASS) {

                // Write directly into the allocated block in-place
                pData = (uint8_t *)pBlock;
                fill_sensor_data(pData, BLOCK_SIZE);

                // Send pointer via data queue (zero-copy transfer!)
                if (xQueueSend(xDataQueue, &pBlock, 0) != pdPASS) {
                    // Queue full: return block to pool to prevent buffer leaks
                    xQueueSend(memory_pool, &pBlock, 0);
                }
            }
        }
    }
}

3. Queue Operation (Zero-Copy Transfer)

The FreeRTOS queue stores only the pointer value (4 bytes on Cortex-M):

• xQueueSend/xQueueReceive internally copy only the pointer (4 bytes) into/out of the queue’s storage — the 1 KB payload is never touched
• Queue item size = sizeof(void*) regardless of actual data size
• Data remains in-place in the memory pool block throughout the transfer

4. Task B (Consumer) Workflow

void vConsumerTask(void *pvParameters)
{
    void *pBlock;
    uint8_t *pData;

    for (;;) {
        // Wait for data with timeout
        if (xQueueReceive(xDataQueue, &pBlock, pdMS_TO_TICKS(10)) == pdPASS) {
            // Use data directly - NO COPY NEEDED
            pData = (uint8_t *)pBlock;
            process_sensor_data(pData, BLOCK_SIZE);

            // Return block to pool for reuse
            xQueueSend(memory_pool, &pBlock, 0);
        }
    }
}

Why This Is Truly Zero-Copy

1. Single memory allocation: Data lives in one place from allocation to free
2. Pointer semantics: Only 4 bytes (the pointer on Cortex-M) are copied through the queue — the payload never moves
3. No intermediate buffers: Eliminates double-buffering requirements
4. Cache friendly: Data stays in cache lines allocated for the block (relevant on Cortex-M7 and above with D-Cache)

Performance Analysis and Measurements

Let’s quantify the benefits on a Cortex-M4 running at 168MHz:

CPU Cycle Comparison

The table below contrasts zero-copy pointer passing against naive C loops and CMSIS-optimized assembly memcpy (LDMIA/STMIA bursts) on an ARM Cortex-M4 @ 168MHz (1 cycle ≈ 5.95 ns):

Real-World Measurements

On STM32F407 (Cortex-M4 @ 168MHz) running FreeRTOS V10:

• Zero-copy overhead: ~0.25 μs (constant two-queue pointer handoff, independent of payload size)
• 64B memcpy: ~0.42 μs
• 1KB memcpy: ~4.80 μs
• 4KB memcpy: ~19.20 μs

System-Level Impact

For a system handling 10K messages/second: | Approach | CPU Usage for Copying | Available for Application | |----------|----------------------|---------------------------| | Zero-copy | 0.2% | 99.8% | | 64B memcpy | 0.8% | 99.2% | | 1KB memcpy | 9.6% | 90.4% | | 4KB memcpy | 38.4% | 61.6% |

This difference can mean:

• Meeting vs missing deadlines in hard real-time systems
• Ability to add more features without CPU upgrades
• Lower power consumption due to reduced active time

Memory Pool Design Considerations

Block Size Selection

Choose block size based on:

1. Maximum message size: Must accommodate largest possible data structure
2. Memory utilization: Too small forces allocation of oversized blocks (internal fragmentation); too large wastes RAM per block
3. Alignment requirements: Consider CPU cache line size (typically 32-64 bytes)
4. Pool count: Number of simultaneous allocations needed

Example calculation for variable-sized messages:

// For messages ranging from 32B to 1024B
#define SMALL_BLOCK_SIZE   64   // For headers, small commands
#define MEDIUM_BLOCK_SIZE  256  // For typical sensor packets
#define LARGE_BLOCK_SIZE  1024  // For maximum payloads

// Create three pools for different size ranges
QueueHandle_t small_pool;
QueueHandle_t medium_pool;
QueueHandle_t large_pool;

Pool Size Determination

Calculate based on:

1. Worst-case simultaneous allocations: Peak producer/consumer mismatch
2. Buffer depth requirements: Queue sizes in your system
3. Recovery time: How quickly consumers can free blocks
4. Safety margin: Typically 20-50% above calculated minimum

Formula:

Pool_Size = (Max_Producer_Rate * Max_Consumer_Latency) + Safety_Margin

Implementation Best Practices

1. Clear Ownership Semantics

Establish unambiguous rules:

• Allocator owns until first send
• Sender transfers ownership on successful queue send
• Receiver owns after successful queue receive
• Receiver returns ownership when done with data

2. Error Handling Patterns

Always check return values:

// Producer side
if (xQueueReceive(memory_pool, &pBlock, 0) == pdPASS) {
    fill_data(pBlock);
    if (xQueueSend(xQueue, &pBlock, 0) != pdPASS) {
        // Handle queue full - return buffer
        xQueueSend(memory_pool, &pBlock, 0);
        // Optional: notify application of dropped sample
    }
}

// Consumer side
if (xQueueReceive(xQueue, &pBlock, pdMS_TO_TICKS(5)) == pdPASS) {
    process_data(pBlock);
    xQueueSend(memory_pool, &pBlock, 0);
} else {
    // Handle timeout - optional recovery
}

3. Debugging and Validation Techniques

Add runtime checks:

// Validate pointer belongs to our pool
bool is_valid_pool_pointer(void *ptr) {
    uintptr_t addr = (uintptr_t)ptr;
    uintptr_t pool_start = (uintptr_t)&pool_memory[0];
    uintptr_t pool_end = pool_start + (POOL_SIZE * BLOCK_SIZE);
    return (addr >= pool_start) && (addr < pool_end) &&
           ((addr - pool_start) % BLOCK_SIZE == 0);
}

// Use in debug builds or via assertions
configASSERT(is_valid_pool_pointer(pBlock));

4. Cache and Memory Placement Optimization

For maximum performance:

• Align block sizes to cache line boundaries (32 bytes on Cortex-M7)
• Consider placing pools in TCM (Tightly Coupled Memory) for single-cycle access on Cortex-M4/M7
• Use __attribute__((aligned(32))) for pools that interact with DMA or cached memory
• On Cortex-M7 with D-Cache: pre-touch (read) memory blocks during initialization to warm cache lines and avoid first-access cache-fill penalties

Advanced Patterns

1. Double-Buffering for DMA

Combine zero-copy task transfer with DMA:

TaskHandle_t xDMATaskHandle;

// Task transfers memory pool buffer to DMA peripheral
void vDMATransmitTask(void *pvParameters) {
    void *tx_block;

    for (;;) {
        if (xQueueReceive(xTxQueue, &tx_block, portMAX_DELAY) == pdPASS) {
            // Start DMA transfer directly from memory pool buffer
            HAL_UART_Transmit_DMA(&huart1, (uint8_t *)tx_block, BLOCK_SIZE);

            // Wait for DMA completion interrupt notification
            ulTaskNotifyTake(pdTRUE, portMAX_DELAY);

            // Return block to pool once DMA hardware completes transmission
            xQueueSend(memory_pool, &tx_block, 0);
        }
    }
}

// DMA Transmission Complete Interrupt Callback
void HAL_UART_TxCpltCallback(UART_HandleTypeDef *huart) {
    if (huart->Instance == USART1) {
        BaseType_t xHigherPriorityTaskWoken = pdFALSE;
        vTaskNotifyGiveFromISR(xDMATaskHandle, &xHigherPriorityTaskWoken);
        portYIELD_FROM_ISR(xHigherPriorityTaskWoken);
    }
}

2. Message Chaining for Large Transfers

For data larger than single block size:

typedef struct {
    void *first_block;
    void *second_block;  // Optional for >2x block size
    uint32_t total_length;
} chained_message_t;

// Sender chains blocks, receiver reassembles

3. Priority Inversion Awareness

Be aware of priority inversion risks when tasks of different priorities share a pool:

• A high-priority task may block on xQueueReceive(memory_pool, ...) waiting for a low-priority task to free a buffer
• FreeRTOS queues do not support priority inheritance (only mutexes created with xSemaphoreCreateMutex() do), so this blocking is not automatically resolved
• Mitigation: Dedicate separate pools per priority level, or use xQueueSendToFront() for high-priority buffer returns to ensure they are recycled first

Use Case Examples

1. High-Speed Sensor Fusion

IMU + GPS + Barometer data at 1KHz:

• Each sensor produces 64-256 byte packets
• Zero-copy reduces CPU load from ~15% to <1%
• Enables adding Kalman filter without CPU upgrade

2. Audio Processing Pipeline

I2S input → FFT → Effects → I2S output:

• Audio buffers typically 128-1024 samples
• Zero-copy allows 48kHz stereo processing with headroom
• Critical for maintaining audio glitch-free performance

3. Network Packet Handling

Ethernet/IP packet processing:

• MTU = 1500 bytes fits nicely in memory pools
• Zero-copy enables line-rate processing on modest MCUs
• DMA engines can write directly to pool blocks

4. Motor Control Feedback Loop

Encoder + current sensing → PID → PWM update:

• Deterministic timing critical for stability
• Zero-copy removes variable latency from feedback path
• Enables higher loop frequencies for better performance

Comparison with Alternatives

Message Buffers vs Memory Pools

Traditional Queues vs Zero-Copy Queues

Common Pitfalls and How to Avoid Them

1. Buffer Lifetime Errors

Problem: Using buffer after returning to pool Solution:

• Establish clear ownership rules in documentation
• Use static analysis tools to check pointer usage
• Consider adding debug counters to track allocations/frees

2. Pool Exhaustion

Problem: Running out of blocks under peak load Solution:

• Monitor pool usage with debug counters
• Size pools for worst-case, not average
• Implement graceful degradation when pools are full
• Consider dynamic pool resizing (advanced)

3. Alignment Issues

Problem: Misaligned pointers causing hard faults Solution:

• Ensure block size is a multiple of the strictest alignment requirement (e.g., 4 bytes for uint32_t, 32 bytes for cache-line-aligned DMA buffers)
• Use uintptr_t for pointer arithmetic to avoid undefined behavior
• Validate pointers in debug builds using the is_valid_pool_pointer() check shown above
• Use __attribute__((aligned(N))) on the pool array or place it in a dedicated linker section with alignment constraints

4. Cache Coherency Problems

Problem: On high-performance cores with L1 Data Caches (such as ARM Cortex-M7 or Cortex-M55), the CPU and DMA access physical memory asynchronously. If Task A updates a buffer, the data may reside only in L1 D-Cache while DMA transmits stale data from SRAM. Conversely, when DMA writes into SRAM, the CPU may read stale cached lines. Solution:

• Cache line alignment: Ensure all memory pool blocks are 32-byte aligned (__attribute__((aligned(32)))) and block sizes are multiples of 32 bytes to avoid false sharing across cache lines.
• DMA Transmit (CPU to Peripheral): Clean D-Cache before triggering DMA:

  SCB_CleanDCache_by_Addr((uint32_t *)tx_block, BLOCK_SIZE);

• DMA Receive (Peripheral to CPU): Invalidate D-Cache before CPU reads the buffer:

  SCB_InvalidateDCache_by_Addr((uint32_t *)rx_block, BLOCK_SIZE);

• MPU Configuration: Alternatively, configure the SRAM region holding the memory pool as Shareable Non-Cacheable via the ARM Cortex-M MPU.

Measuring and Validating Your Implementation

Runtime Metrics to Track

Add these diagnostics to your production code:

typedef struct {
    volatile uint32_t allocations;
    volatile uint32_t frees;
    volatile uint32_t allocation_failures;
    volatile uint32_t max_used;
} pool_stats_t;

static pool_stats_t pool_stats;

// In allocation path (called within a single critical section or
// from a single task context; use taskENTER_CRITICAL() if multi-task):
if (success) {
    pool_stats.allocations++;
    uint32_t used = pool_stats.allocations - pool_stats.frees;
    if (used > pool_stats.max_used) pool_stats.max_used = used;
} else {
    pool_stats.allocation_failures++;
}

// In free path:
pool_stats.frees++;

Validation Checklist

Before deploying:

• Block size ≥ maximum message size
• Pool size calculated for worst-case load
• All send/receive paths checked for error handling
• Ownership semantics documented and followed
• Debug builds include pointer validation
• Performance measured with actual data loads
• Memory usage verified via linker map or runtime query

Conclusion

Zero-copy data transfer using FreeRTOS memory pools provides a deterministic, high-performance mechanism for inter-task communication in real-time systems. By eliminating memcpy overhead and ensuring fixed-time operations, developers can achieve better CPU utilization, meet tighter timing constraints, and build more responsive embedded applications.

The key to success lies in:

1. Proper design: Correct block sizing and pool dimensioning
2. Clear semantics: Unambiguous ownership rules between tasks
3. Careful implementation: Robust error handling and validation
4. Thorough testing: Validation under expected and edge-case loads

When implemented correctly, this technique can reduce CPU overhead by 90-99% for large data transfers, transforming resource-constrained systems from struggling to capable. The determinism benefits are equally valuable, simplifying timing analysis and improving system reliability.

💡 Tip: Start with a single pool size matching your most common message type, measure performance, then optimize for your specific use case. ⚠️ Warning: Never access a memory pool block after returning it to the pool without re-allocation—this leads to undefined behavior and difficult-to-debug issues.

Related Reading

• FreeRTOS Message and Stream Buffers for Data Streaming
• FreeRTOS Heap Implementations Compared: Heap_1 to Heap_5
• Fixing Sporadic Hard Faults in FreeRTOS Heap Allocation
• FreeRTOS Task Notification Latency vs Queue Performance
• RTOS Task Design Patterns: Producer-Consumer, Observer, and Event-Driven Architectures

References

• FreeRTOS Memory Management: https://www.freertos.org/a00111.html
• FreeRTOS Queues: https://www.freertos.org/a00116.html
• FreeRTOS Static Memory Allocation: https://www.freertos.org/Static_Vs_Dynamic_Memory_Allocation.html
• ARM Cortex-M Processor Devices: https://developer.arm.com/documentation/dui0552/a/
• CMSIS-RTOS2 API Reference: https://www.keil.com/pack/doc/CMSIS/RTOS2/html/
