Interrupt Handling and ISRs in Embedded Systems

Interrupts are fundamental to embedded systems, allowing microcontrollers to respond promptly to external events while maintaining efficient CPU utilization. An Interrupt Service Routine (ISR) is a special function that executes when an interrupt occurs, handling time-critical tasks without blocking the main program flow.

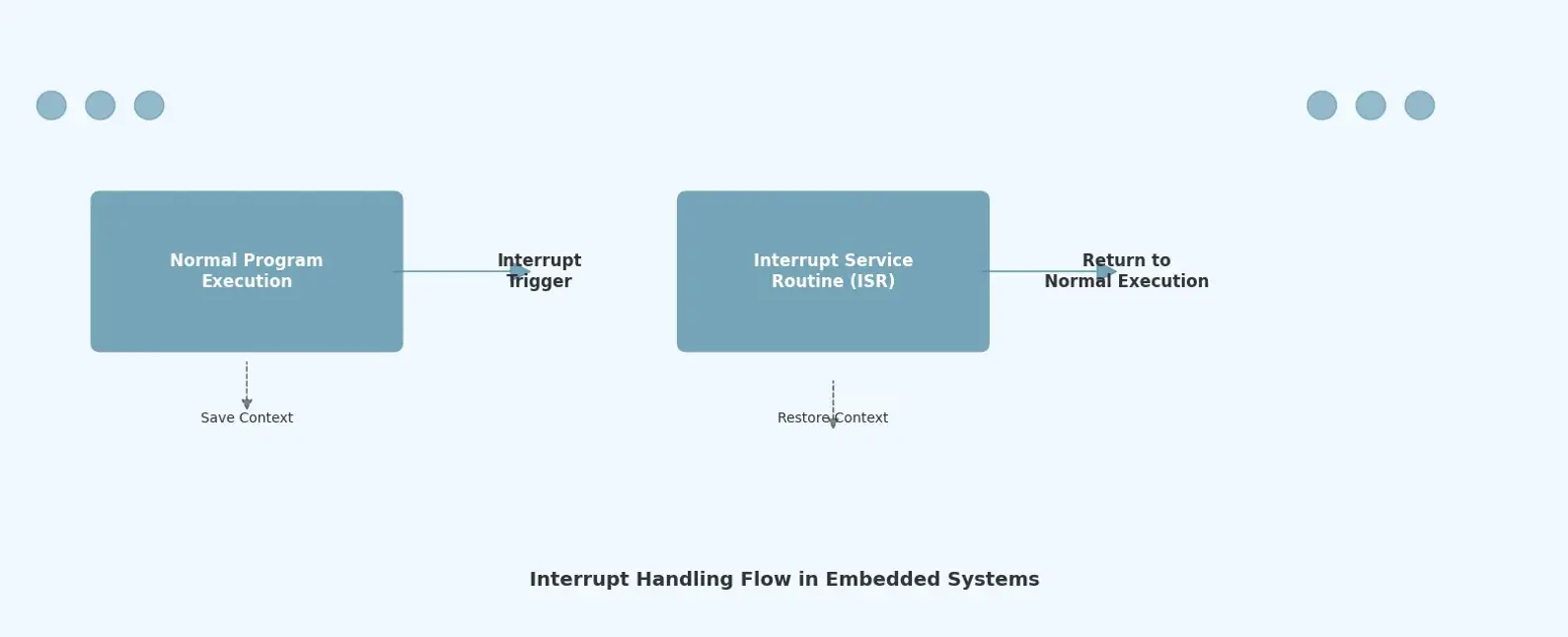

In bare-metal embedded systems, interrupts provide a mechanism for the processor to temporarily halt normal execution when a peripheral device requires attention. When an interrupt triggers, the CPU saves its current state, jumps to the ISR, processes the interrupt, and then restores the previous state to resume normal execution. This mechanism is crucial for real-time responsiveness in applications ranging from sensor data acquisition to communication protocols.

The effectiveness of an interrupt system depends heavily on proper ISR design. ISRs should be kept as short as possible to minimize interrupt latency and prevent blocking other interrupts. Long-running operations within an ISR can cause missed interrupts and system instability. Best practices dictate that ISRs should only perform essential tasks like reading sensor data, setting flags, or triggering DMA transfers, while deferring complex processing to the main application loop.

Modern Real-Time Operating Systems (RTOS) add layers of complexity to interrupt handling. In RTOS environments, ISRs often interact with kernel services through specialized APIs that are safe to call from interrupt context. These services might include sending messages to queues, setting semaphores, or triggering task switches. The RTOS kernel manages interrupt nesting and ensures that critical sections are properly protected.

Interrupt prioritization is another critical aspect of embedded interrupt systems. Most microcontrollers support multiple interrupt priority levels, allowing designers to ensure that the most critical interrupts (like watchdog timers or fault detectors) can preempt less critical ones. Proper priority assignment prevents priority inversion scenarios where a low-priority interrupt blocks a high-priority one.

Nested interrupts occur when a higher-priority interrupt interrupts an already executing ISR. While some architectures support nested interrupts by default, others require explicit configuration. Handling nested interrupts correctly requires careful consideration of stack usage and register preservation to avoid corruption of the interrupted ISR’s context.

Interrupt latency – the time between an interrupt trigger and the start of ISR execution – is a key performance metric in real-time systems. Factors affecting latency include interrupt synchronization, priority resolution, and the time needed to save processor context. Deterministic low-latency interrupt response is essential for applications like motor control, digital signal processing, and communication interfaces where timing jitter must be minimized.

Debugging interrupt-related issues presents unique challenges due to their asynchronous nature. Common problems include missed interrupts, spurious interrupts, and ISR execution taking too long. Effective debugging strategies involve using hardware breakpoints in ISRs, monitoring interrupt counts, and analyzing timing with oscilloscopes or logic analyzers to correlate interrupt events with system behavior.

Power consumption considerations also influence interrupt system design. Many microcontrollers use interrupts to wake from low-power sleep modes, enabling energy-efficient operation in battery-powered devices. Configuring which interrupts can wake the system and ensuring proper peripheral configuration before entering sleep modes are critical for reliable low-power operation.

Interrupt Sources and Types

Embedded systems typically encounter various interrupt sources that require different handling approaches. Understanding these sources is crucial for designing effective interrupt systems.

External interrupts originate from peripherals outside the CPU core, such as GPIO pins, communication interfaces (UART, SPI, I2C), timers, and analog-to-digital converters. These interrupts are essential for interacting with the external world and responding to real-time events.

Internal interrupts, also known as exceptions, are generated by the CPU itself. Examples include division by zero, invalid memory access, breakpoint instructions, and system calls. While less common in bare-metal applications, these interrupts are crucial for operating system functionality and error handling.

Software interrupts are triggered by specific instructions in the program code. They provide a mechanism for applications to request services from the operating system or monitor kernel. In embedded systems, software interrupts are often used for system calls and supervisory functions.

Each interrupt source typically has a dedicated interrupt vector in the interrupt vector table. The processor uses this vector to determine the address of the corresponding ISR when an interrupt occurs. Some architectures support vectored interrupts where the interrupt number is automatically provided to the CPU, while others require software to determine the interrupt source.

ISR Design Best Practices

Designing effective ISRs requires adherence to several key principles that ensure system reliability and responsiveness.

First and foremost, ISRs must be deterministic. The execution time should be predictable and bounded, as jitter in ISR execution can disrupt real-time guarantees. This means avoiding loops with variable iteration counts, dynamic memory allocation, or any operations that could cause unpredictable delays.

Second, ISRs should minimize shared resource access. When ISRs need to share data with the main application or other ISRs, proper synchronization mechanisms must be employed. This often involves using atomic operations, disabling interrupts during critical sections, or using lock-free data structures designed for concurrent access.

Third, ISRs should avoid calling functions that are not interrupt-safe. Many library functions, particularly those involving dynamic memory allocation or complex data structures, are not designed to be called from interrupt context. Calling such functions from an ISR can lead to corruption, deadlocks, or other unpredictable behavior.

Fourth, ISRs should clear interrupt flags promptly. Failing to clear the interrupt source flag can cause the same interrupt to trigger repeatedly, leading to interrupt storms that consume all available CPU time. The timing of flag clearing is important – it should typically be done after processing the interrupt but before exiting the ISR.

Fifth, ISRs should use the minimum stack space necessary. Excessive stack usage in ISRs can lead to stack overflow, especially in systems with limited memory. This is particularly important in nested interrupt scenarios where multiple ISRs may be active simultaneously.

RTOS Considerations for Interrupts

When using a Real-Time Operating System, interrupt handling becomes more sophisticated due to the presence of kernel services and task management.

Most RTOS kernels provide special APIs for ISR-to-task communication. These APIs are designed to be called from interrupt context and typically include functions for sending data to queues, setting semaphores, or giving event flags. These mechanisms allow ISRs to quickly capture time-sensitive data and defer processing to appropriate task contexts.

Interrupt nesting behavior varies between RTOS implementations. Some kernels fully support nested interrupts, allowing higher-priority interrupts to preempt lower-priority ISRs. Others disable interrupts during ISR execution to simplify kernel design. Understanding the specific nesting behavior of your RTOS is crucial for designing appropriate interrupt handlers.

The RTOS kernel often manages context switching decisions based on ISR activity. For example, if an ISR makes a high-priority task ready to run, the kernel may decide to perform a context switch upon ISR exit rather than returning to the interrupted task. This ensures that urgent tasks are scheduled promptly after interrupt processing.

Some RTOS implementations provide interrupt service routines that run in a special interrupt context or thread. This approach separates interrupt handling from task execution while still providing access to kernel services. Understanding your RTOS’s specific interrupt handling model is essential for correct implementation.

Performance Optimization Techniques

Several techniques can be employed to optimize interrupt system performance in embedded applications.

Interrupt coalescing combines multiple similar interrupts into a single interrupt event, reducing interrupt overhead. This is particularly useful for high-frequency interrupt sources like network interfaces or timer ticks where processing every individual interrupt would be wasteful.

Interrupt throttling limits the rate at which interrupts are processed, preventing interrupt floods from overwhelming the system. This technique is valuable when dealing with noisy or unreliable interrupt sources that might generate spurious interrupts.

Direct Memory Access (DMA) can significantly reduce interrupt burden by allowing peripherals to transfer data directly to/from memory without CPU intervention. Instead of generating an interrupt for each byte transferred, DMA controllers typically interrupt only when a complete buffer has been transferred or when an error occurs.

Double buffering techniques work well with DMA to further minimize interrupt overhead. While the CPU processes one buffer, the DMA controller fills the other buffer, allowing continuous data transfer with minimal CPU intervention.

Interrupt prioritization should be carefully tuned based on system requirements. Not all interrupts need the same priority level – critical interrupts like watchdog timers should have the highest priority, while less time-sensitive interrupts can be assigned lower priorities.

Conclusion

Effective interrupt handling is a cornerstone of reliable embedded system design. By understanding the fundamentals of interrupt mechanics, following ISR design best practices, considering RTOS-specific requirements, and applying performance optimization techniques, developers can create responsive and deterministic embedded systems.

The key principles to remember are: keep ISRs short and deterministic, prioritize interrupts appropriately, use proper synchronization for shared data, clear interrupt flags promptly, and leverage hardware features like DMA to minimize CPU overhead. With these practices in place, interrupt systems can provide the real-time responsiveness needed for demanding embedded applications while maintaining system stability and reliability.

As embedded systems continue to evolve with increasing complexity and performance requirements, mastering interrupt handling remains an essential skill for embedded engineers. Whether working on simple microcontroller applications or complex multiprocessor systems, the principles of effective interrupt design will continue to serve as a foundation for successful embedded development.
