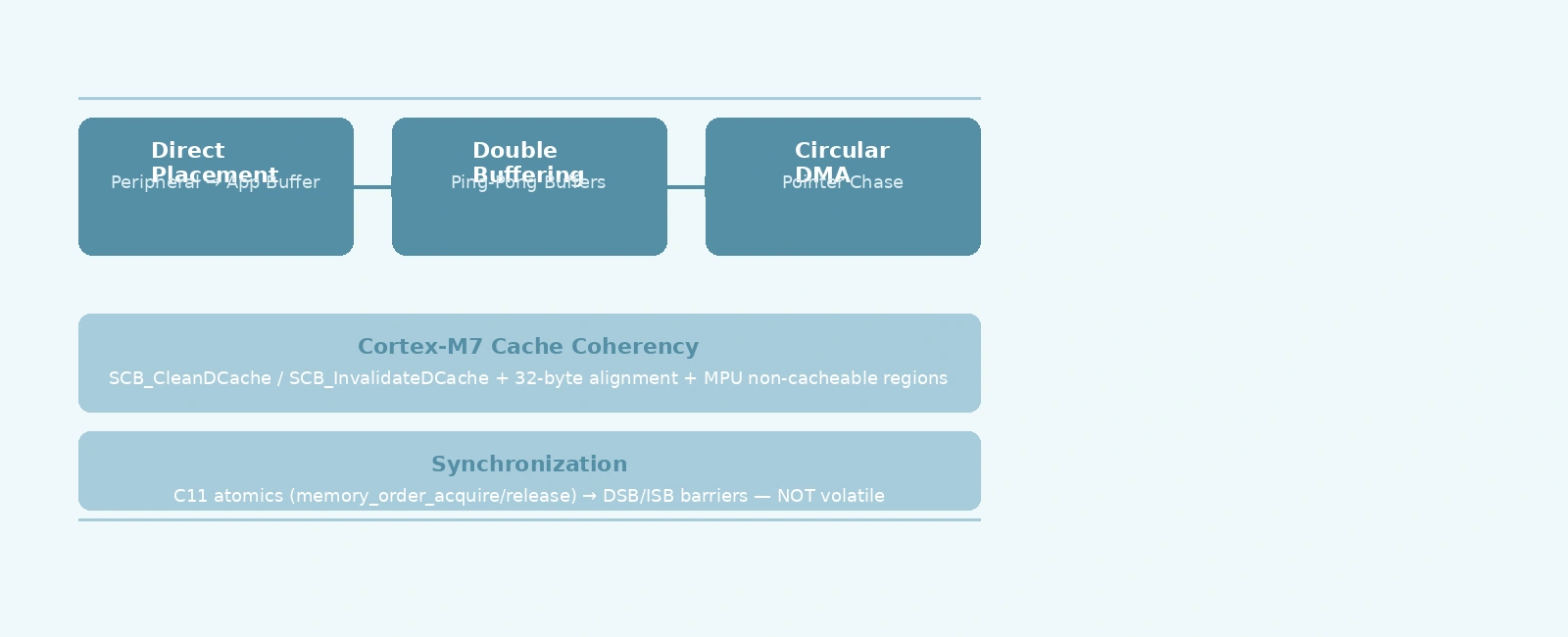

Zero-Copy DMA Patterns on ARM Cortex-M

By Jithin Tom

Published in Embedded C/C++

July 19, 2026

3 min read

Peripheral-to-Memory Direct Placement

Double-Buffered Ping-Pong

Circular DMA with Pointer Chasing

Cache Coherency Checklist for Cortex-M7

MPU vs Cache Maintenance Trade-offs

Synchronization Primitives

Summary

Peripheral-to-Memory Direct Placement

The simplest zero-copy pattern: configure DMA to write directly into your application’s working buffer. No intermediate staging buffer, no memcpy.

#define ADC_BUFFER_SIZE  2048
#define ADC_BUFFER_ALIGN  4096  // ARMv7-M MPU requires alignment to region size (4KB)

__attribute__((aligned(ADC_BUFFER_ALIGN)))
static uint16_t adc_buffer[ADC_BUFFER_SIZE];

static void adc_dma_init(void) {
    __HAL_RCC_DMA2_CLK_ENABLE();

    hdma_adc.Instance = DMA2_Stream0;
    hdma_adc.Init.Channel = DMA_CHANNEL_0;
    hdma_adc.Init.Direction = DMA_PERIPH_TO_MEMORY;
    hdma_adc.Init.PeriphInc = DMA_PINC_DISABLE;
    hdma_adc.Init.MemInc = DMA_MINC_ENABLE;
    hdma_adc.Init.PeriphDataAlignment = DMA_PDATAALIGN_HALFWORD;
    hdma_adc.Init.MemDataAlignment = DMA_MDATAALIGN_HALFWORD;
    hdma_adc.Init.Mode = DMA_CIRCULAR;
    hdma_adc.Init.Priority = DMA_PRIORITY_HIGH;
    hdma_adc.Init.FIFOMode = DMA_FIFOMODE_ENABLE;
    hdma_adc.Init.FIFOThreshold = DMA_FIFO_THRESHOLD_HALFFULL;
    hdma_adc.Init.MemBurst = DMA_MBURST_SINGLE;
    hdma_adc.Init.PeriphBurst = DMA_PBURST_SINGLE;

    HAL_DMA_Init(&hdma_adc);
    __HAL_LINKDMA(&hadc1, DMA_Handle, hdma_adc);

    HAL_NVIC_SetPriority(DMA2_Stream0_IRQn, 5, 0);
    HAL_NVIC_EnableIRQ(DMA2_Stream0_IRQn);
}

On Cortex-M7, the buffer must be 32-byte aligned and you must invalidate the cache region before DMA starts writing:

static void adc_start_zero_copy(void) {
    SCB_InvalidateDCache_by_Addr((uint32_t*)adc_buffer, sizeof(adc_buffer));
    HAL_ADC_Start_DMA(&hadc1, (uint32_t*)adc_buffer, ADC_BUFFER_SIZE);
}

The ADC conversion complete callback processes data directly from adc_buffer — no copy needed. The buffer lives in your application’s address space from the first byte.

Critical: On Cortex-M7, if the buffer is in cacheable memory (default SRAM), you must invalidate before DMA writes and clean before DMA reads. The alternative: place the buffer in a non-cacheable MPU region.

static void mpu_config_non_cacheable_buffer(void) {
    MPU_Region_InitTypeDef mpu_region = {0};
    mpu_region.Enable = MPU_REGION_ENABLE;
    mpu_region.Number = MPU_REGION_NUMBER0;
    mpu_region.BaseAddress = (uint32_t)adc_buffer;
    mpu_region.Size = MPU_REGION_SIZE_4KB;  // Must exactly match buffer size (4KB)
    mpu_region.SubRegionDisable = 0x00;
    mpu_region.TypeExtField = MPU_TEX_LEVEL0;
    mpu_region.AccessPermission = MPU_REGION_FULL_ACCESS;
    mpu_region.DisableExec = MPU_INSTRUCTION_ACCESS_DISABLE;
    mpu_region.IsShareable = MPU_ACCESS_SHAREABLE;
    mpu_region.IsCacheable = MPU_ACCESS_NOT_CACHEABLE;  // Key: non-cacheable
    mpu_region.IsBufferable = MPU_ACCESS_NOT_BUFFERABLE;

    HAL_MPU_ConfigRegion(&mpu_region);
    HAL_MPU_Enable(MPU_PRIVILEGED_DEFAULT);
}

With non-cacheable MPU region, you skip all cache maintenance. The trade-off: CPU reads/writes to this region bypass L1 cache, costing ~2-3 cycles per access vs 1 cycle cached. For DMA buffers written once and read once, this is optimal.

+------------------------------------------------------------------+
|                    ZERO-COPY DMA DATA FLOW                       |
+------------------------------------------------------------------+
|                                                                  |
|  PERIPHERAL (ADC/UART/SPI)                                       |
|       |                                                          |
|       v  DMA REQUEST                                             |
|  +-----------+     DMA TRANSFER     +------------------------+   |
|  |  DMA CTRL | -------------------> |   APPLICATION BUFFER   |   |
|  +-----------+    (NO CPU COPY)     |   (32-byte aligned)    |   |
|                                     +------------------------+   |
|                                               |                  |
|                                CACHE INVALIDATE (M7 only)        |
|                                               |                  |
|                                               v                  |
|                                     +------------------+         |
|                                     |  CPU PROCESSES   |         |
|                                     |  DATA DIRECTLY   |         |
|                                     +------------------+         |
|                                                                  |
+------------------------------------------------------------------+

Double-Buffered Ping-Pong

For frame-based processing (audio blocks, sensor frames, protocol packets), double buffering lets you process one frame while DMA fills the next. The CPU never touches the active DMA buffer.

#define FRAME_SIZE     1024
#define FRAME_ALIGN    32

// STM32 HAL expects a single contiguous buffer for half/full complete callbacks
__attribute__((aligned(FRAME_ALIGN)))
static uint16_t dma_buffer[FRAME_SIZE * 2];

static volatile uint8_t active_half = 0;  // 0 = first half, 1 = second half
static volatile uint8_t frame_ready = 0;

void HAL_ADC_ConvHalfCpltCallback(ADC_HandleTypeDef* hadc) {
    if (hadc->Instance == ADC1) {
        // First half complete - process first half while DMA fills second half
        active_half = 0;
        frame_ready = 1;
    }
}

void HAL_ADC_ConvCpltCallback(ADC_HandleTypeDef* hadc) {
    if (hadc->Instance == ADC1) {
        // Second half complete - process second half while DMA fills first half
        active_half = 1;
        frame_ready = 1;
    }
}

static void process_frame_zero_copy(void) {
    uint16_t* process_buf = (active_half == 0) ? &dma_buffer[0] : &dma_buffer[FRAME_SIZE];

    // Cache maintenance if not using MPU non-cacheable region
    SCB_InvalidateDCache_by_Addr((uint32_t*)process_buf, FRAME_SIZE * sizeof(uint16_t));

    // Process directly - no memcpy
    for (uint32_t i = 0; i < FRAME_SIZE; i++) {
        // DSP algorithm here - FIR, FFT, decimation, etc.
        process_sample(process_buf[i]);
    }

    frame_ready = 0;
}

The key synchronization: The active_half variable is explicitly set in each callback to indicate which half of the buffer is ready for processing. The half-complete callback signals the first half is ready, while the full-complete callback signals the second half is ready. This ensures you process the correct chunk while the DMA safely writes to the other half.

+------------------------------------------------------------------+
|                    DOUBLE BUFFER TIMELINE                        |
+------------------------------------------------------------------+
|                                                                  |
|  TIME  --------------------------------------------------------> |
|                                                                  |
| DMA: [===== FILL FIRST HALF ====][==== FILL SECOND HALF ====]    |
|                                 |                           |    |
|                                 v                           v    |
| CPU: [==== PROCESS 2ND HALF ====][==== PROCESS 1ST HALF ====]    |
|                                 ^                           ^    |
|                                 |                           |    |
|                             HALF CPLT                  FULL CPLT |
|                           (1ST READY)                 (2ND READY)|
|                                                                  |
|  BUFFER OWNERSHIP:                                               |
|  1ST HALF: DMA owns [0...HALF_CPLT)   CPU owns [HALF_CPLT...END] |
|  2ND HALF: CPU owns [0...HALF_CPLT)   DMA owns [HALF_CPLT...END] |
|                                                                  |
+------------------------------------------------------------------+

Circular DMA with Pointer Chasing

For continuous streams (UART RX, SPI slave, I2S audio), circular DMA with a write pointer is optimal. The CPU chases the DMA write pointer, processing data up to the current position.

#define RING_SIZE      8192
#define RING_ALIGN     32

__attribute__((aligned(RING_ALIGN)))
static uint8_t uart_rx_ring[RING_SIZE];

static volatile uint32_t cpu_read_pos = 0;

void uart_rx_circular_init(void) {
    __HAL_RCC_DMA1_CLK_ENABLE();

    hdma_uart_rx.Instance = DMA1_Stream1;
    hdma_uart_rx.Init.Channel = DMA_CHANNEL_4;
    hdma_uart_rx.Init.Direction = DMA_PERIPH_TO_MEMORY;
    hdma_uart_rx.Init.PeriphInc = DMA_PINC_DISABLE;
    hdma_uart_rx.Init.MemInc = DMA_MINC_ENABLE;
    hdma_uart_rx.Init.PeriphDataAlignment = DMA_PDATAALIGN_BYTE;
    hdma_uart_rx.Init.MemDataAlignment = DMA_MDATAALIGN_BYTE;
    hdma_uart_rx.Init.Mode = DMA_CIRCULAR;
    hdma_uart_rx.Init.Priority = DMA_PRIORITY_HIGH;
    hdma_uart_rx.Init.FIFOMode = DMA_FIFOMODE_DISABLE;

    HAL_DMA_Init(&hdma_uart_rx);
    __HAL_LINKDMA(&huart3, hdma_rx, hdma_uart_rx);

    __HAL_DMA_ENABLE_IT(&hdma_uart_rx, DMA_IT_HT | DMA_IT_TC);
    HAL_NVIC_SetPriority(DMA1_Stream1_IRQn, 6, 0);
    HAL_NVIC_EnableIRQ(DMA1_Stream1_IRQn);

    HAL_UART_Receive_DMA(&huart3, uart_rx_ring, RING_SIZE);
}

static uint32_t get_dma_write_pos(void) {
    return RING_SIZE - __HAL_DMA_GET_COUNTER(&hdma_uart_rx);
}

static void process_uart_stream(void) {
    uint32_t write_pos = get_dma_write_pos();

    if (write_pos == cpu_read_pos) {
        return;  // No new data
    }

    // Cache invalidate only the new region (using safe alignment wrapper)
    if (write_pos > cpu_read_pos) {
        cache_invalidate_range(
            (void*)(uart_rx_ring + cpu_read_pos),
            write_pos - cpu_read_pos
        );

        // Process linear chunk
        parse_uart_data(uart_rx_ring + cpu_read_pos, write_pos - cpu_read_pos);
    } else {
        // Wrapped - two chunks
        cache_invalidate_range(
            (void*)(uart_rx_ring + cpu_read_pos),
            RING_SIZE - cpu_read_pos
        );
        parse_uart_data(uart_rx_ring + cpu_read_pos, RING_SIZE - cpu_read_pos);

        cache_invalidate_range(
            (void*)uart_rx_ring,
            write_pos
        );
        parse_uart_data(uart_rx_ring, write_pos);
    }

    cpu_read_pos = write_pos;
}

The DMA counter (NDTR register) counts remaining transfers. Subtracting from buffer size gives the write position. Cache invalidation targets only the newly-written region, not the entire ring. Note that we use a custom cache_invalidate_range function here (defined in the next section) rather than bare SCB_InvalidateDCache_by_Addr because UART write positions are typically unaligned, which would cause an alignment fault on Cortex-M7.

+------------------------------------------------------------------+
|                    CIRCULAR DMA POINTER CHASE                    |
+------------------------------------------------------------------+
|                                                                  |
|  RING BUFFER (8 KB)                                              |
|                                                                  |
|    +----+----+----+----+----+----+----+----+----+----+----+----+ |
|    | D  | A  | T  | A  |  1 |  2 |  3 |  4 |  5 |  6 |  7 |  8 | |
|    +----+----+----+----+----+----+----+----+----+----+----+----+ |
|      ^                                                     ^     |
|      |                                                     |     |
| cpu_read_pos                                           write_pos |
| (CPU processed)                                       (DMA head) |
|                                                                  |
|  NEW DATA = (write_pos - cpu_read_pos) mod RING_SIZE             |
|                                                                  |
|  CPU processes from cpu_read_pos up to write_pos,                |
|  then updates cpu_read_pos = write_pos                           |
|                                                                  |
+------------------------------------------------------------------+

Cache Coherency Checklist for Cortex-M7

Operation	Cache Action	Function
DMA writes to memory (Periph->Mem)	Invalidate before DMA starts	`SCB_InvalidateDCache_by_Addr()`
DMA reads from memory (Mem->Periph)	Clean before DMA starts	`SCB_CleanDCache_by_Addr()`
CPU reads after DMA write	Invalidate after DMA complete	`SCB_InvalidateDCache_by_Addr()`
CPU writes before DMA read	Clean after CPU write	`SCB_CleanDCache_by_Addr()`

Alignment requirement: All SCB_*DCache_by_Addr calls require 32-byte aligned address and size multiple of 32 bytes. Use __attribute__((aligned(32))) on buffers and round sizes up.

#define CACHE_LINE_SIZE 32

static void cache_invalidate_range(void* addr, uint32_t len) {
    uint32_t start = (uint32_t)addr & ~(CACHE_LINE_SIZE - 1);
    uint32_t end = ((uint32_t)addr + len + CACHE_LINE_SIZE - 1) & ~(CACHE_LINE_SIZE - 1);
    SCB_InvalidateDCache_by_Addr((uint32_t*)start, end - start);
}

static void cache_clean_range(void* addr, uint32_t len) {
    uint32_t start = (uint32_t)addr & ~(CACHE_LINE_SIZE - 1);
    uint32_t end = ((uint32_t)addr + len + CACHE_LINE_SIZE - 1) & ~(CACHE_LINE_SIZE - 1);
    SCB_CleanDCache_by_Addr((uint32_t*)start, end - start);
}

MPU vs Cache Maintenance Trade-offs

Approach	Pros	Cons
MPU non-cacheable region	Zero cache maintenance, deterministic timing	CPU accesses 2-3x slower, consumes MPU region (8 max)
Explicit cache maintenance	Full cache speed for CPU, flexible	Easy to get wrong → data corruption, adds code complexity

Recommendation: Use MPU non-cacheable for high-frequency DMA buffers (ADC, UART, SPI > 100 kHz). Use explicit cache maintenance for infrequent large transfers (SD card, flash, display) where CPU cache speed matters.

Synchronization Primitives

Never use bare volatile for DMA-CPU synchronization. Use C11 atomics with memory ordering:

#include <stdatomic.h>

static _Atomic uint32_t dma_write_index = 0;
static _Atomic uint32_t cpu_read_index = 0;

void dma_complete_callback(void) {
    // Release: ensure all DMA writes visible before index update
    atomic_store_explicit(&dma_write_index, new_write_pos, memory_order_release);
}

void cpu_process_loop(void) {
    // Acquire: ensure we see all DMA writes after index read
    uint32_t write_pos = atomic_load_explicit(&dma_write_index, memory_order_acquire);

    if (write_pos != cpu_read_index) {
        process_data(cpu_read_index, write_pos);
        atomic_store_explicit(&cpu_read_index, write_pos, memory_order_release);
    }
}

On Cortex-M (ARMv7-M), memory_order_release compiles to DMB + STR, memory_order_acquire compiles to LDR + DMB. The DMB (Data Memory Barrier) ensures ordering of memory accesses without the heavier completion semantics of DSB. Correct and portable.

Summary

Zero-copy DMA on Cortex-M eliminates the memcpy tax entirely. Three patterns cover most use cases:

Direct placement — simplest, best for single-shot or continuous processing where CPU keeps up
Double buffering — best for frame-based DSP (audio, vision, sensor fusion) with predictable frame sizes
Circular with pointer chase — best for variable-rate streams (UART, SPI slave, CAN) where processing latency varies

The Cortex-M7 cache is the main complexity. Either configure MPU non-cacheable regions for DMA buffers (simplest, safest) or apply disciplined cache maintenance with 32-byte alignment. Use C11 atomics for synchronization — not volatile.

Measure your memcpy overhead before and after. On a typical Cortex-M4 application with 50 KB/s UART + 200 KB/s ADC + 1 MB/s SPI, zero-copy saves 15-30% CPU cycles. That margin is often the difference between adding a new feature and hitting the thermal limit.

References

ARM Cortex-M7 Processor Technical Reference Manual, “Cache Maintenance Operations” (ARM DDI 0489)
STM32F7 Series Reference Manual, “DMA Controller (DMA)” (RM0410)
ARM Application Note 321, “ARM Cortex-M Programming Guide to Memory Barrier Instructions” (ARM DAI 0321)
“Real-Time Embedded Systems with ARM Cortex-M” — Jonathan Valvano, ISBN 978-1477508992
“Embedded Systems: Real-Time Operating Systems for ARM Cortex-M” — Jonathan Valvano, ISBN 978-1466468863

Frequently Asked Questions

What is zero-copy DMA and why does it matter on Cortex-M?

Zero-copy DMA transfers data directly between peripherals and memory without intermediate CPU copies, eliminating memcpy overhead. On Cortex-M, this reduces latency by 30-50% for high-throughput streams like ADC, UART, or SPI, although cache coherency must be explicitly managed on Cortex-M7.

How does cache coherency affect zero-copy DMA on Cortex-M7?

Cortex-M7 has L1 data cache. DMA bypasses cache, so software must clean (write-back) cache lines before DMA reads and invalidate cache lines after DMA writes. Use SCB_CleanDCache_by_Addr and SCB_InvalidateDCache_by_Addr with 32-byte aligned buffers.

When should I use double buffering vs circular DMA for zero-copy?

Double buffering suits fixed-size frames (e.g., audio blocks, sensor frames) where you process one buffer while DMA fills the other. Circular DMA suits continuous streams with variable processing latency — the CPU chases the write pointer.

What alignment constraints apply to zero-copy DMA buffers?

Buffers must be 32-byte aligned for cache line operations on Cortex-M7. For Cortex-M4/M3 without cache, 4-byte alignment suffices. Always place DMA buffers in non-cacheable regions (MPU) or use __attribute__((aligned(32))) with explicit cache maintenance.

How do I prevent data corruption when CPU and DMA access the same buffer?

Use memory barriers (DSB/ISB) and cache maintenance around DMA triggers. For double buffering, use a volatile buffer index flag updated with __atomic_store_n/__atomic_load_n. Never access the active DMA buffer until the transfer complete interrupt confirms ownership transfer.
