Cortex-M Cache Maintenance for DMA Coherency

Cache coherency between CPU and DMA is one of the most subtle sources of data corruption in Cortex-M7 systems. The CPU sees the world through its L1 cache; DMA sees physical memory directly. When both access the same buffer without explicit maintenance, one of them operates on stale data. This article covers the exact operations, barriers, and patterns you need for correct DMA on Cortex-M7 (STM32H7, NXP RT1170, similar cores).

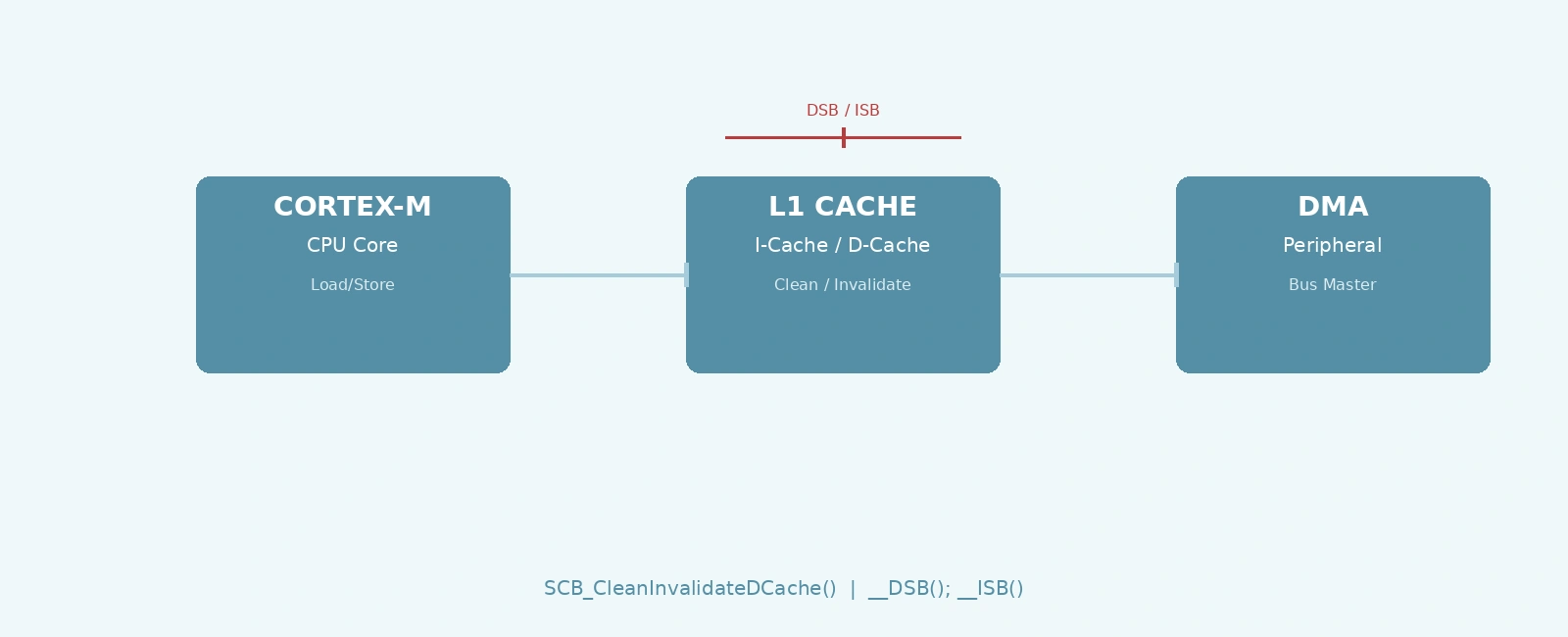

The Coherency Problem

+----------+     Load/Store      +----------+     Bus Master      +----------+
|  CORTEX-M7  | <----------------> |  L1 D-CACHE  | <----------------> |   DMA    |
|  CPU CORE  |     (cached)       |  (32B lines) |    (uncached)       | CONTROLLER|
+----------+                      +----------+                      +----------+
       ^                                                          ^
       |                                                          |
       |                    PHYSICAL RAM                          |
       +---------------------------+------------------------------+
                                   |
                          Single physical memory

When the CPU writes to a buffer, data lands in D-Cache (write-back policy). DMA reads physical RAM — it sees old data. When DMA writes to a buffer, CPU reads from D-Cache — it sees old data. The fix is explicit cache maintenance via the SCB (System Control Block) registers.

Cache Maintenance Operations

Cortex-M7 provides three D-Cache maintenance operations through the SCB:

// CMSIS-Core (core_cm7.h)
void SCB_CleanDCache(void);                    // Clean entire D-Cache
void SCB_CleanDCache_by_Addr(uint32_t *addr, int32_t dsize);  // Clean by address range
void SCB_InvalidateDCache(void);               // Invalidate entire D-Cache
void SCB_InvalidateDCache_by_Addr(uint32_t *addr, int32_t dsize); // Invalidate by address range
void SCB_CleanInvalidateDCache(void);          // Clean + Invalidate entire D-Cache
void SCB_CleanInvalidateDCache_by_Addr(uint32_t *addr, int32_t dsize); // By address range

Operation Semantics

Critical: The *_by_Addr variants operate on address ranges. The size parameter dsize is in bytes, and the address must be 32-byte aligned (cache line size on Cortex-M7). The hardware rounds the range up to full cache lines.

#define CACHE_LINE_SIZE 32U

// Align buffer to cache line boundary
static uint8_t dma_buffer[1024] __attribute__((aligned(32)));

void dma_tx_prepare(void *buf, uint32_t len) {
    // CPU wrote data, DMA will read: CLEAN
    SCB_CleanDCache_by_Addr((uint32_t*)buf, len);
    __DSB(); __ISB();  // Barriers: ensure clean completes before DMA starts
}

void dma_rx_complete(void *buf, uint32_t len) {
    // DMA wrote data, CPU will read: INVALIDATE
    SCB_InvalidateDCache_by_Addr((uint32_t*)buf, len);
    __DSB(); __ISB();  // Barriers: ensure invalidate completes before CPU reads
}

Memory Barriers: DSB and ISB

Cache maintenance operations are not memory barriers. They initiate cache maintenance but return before it completes globally. You need:

// After cache maintenance, before DMA starts / CPU reads
__DSB();  // Data Synchronization Barrier: completes all explicit memory accesses
__ISB();  // Instruction Synchronization Barrier: flushes pipeline, refetches instructions

Why Both?

Timeline without barriers:
CPU: SCB_CleanDCache_by_Addr()  ----> returns immediately
DMA: Starts transfer              ----> may see partially cleaned cache

Timeline with barriers:
CPU: SCB_CleanDCache_by_Addr()
CPU: __DSB()  -------------------> waits for clean to reach RAM
CPU: __ISB()  -------------------> pipeline sees new memory state
DMA: Starts transfer              ----> sees fully cleaned data

On Cortex-M7, __DSB() ensures the cache maintenance operation has completed to the point of coherency (L2 or main memory). __ISB() ensures subsequent instruction fetches see the updated memory (relevant if code is in the same region, or for self-modifying code scenarios).

Practical Patterns

Pattern 1: TX Buffer (CPU → DMA → Peripheral)

// Buffer aligned to cache line
static uint8_t tx_buf[256] __attribute__((aligned(32)));

void uart_dma_send(const uint8_t *data, uint16_t len) {
    memcpy(tx_buf, data, len);

    // Clean: push CPU writes to RAM so DMA sees them
    SCB_CleanDCache_by_Addr((uint32_t*)tx_buf, len);
    __DSB(); __ISB();

    // Start DMA transfer
    HAL_UART_Transmit_DMA(&huart3, tx_buf, len);
}

Pattern 2: RX Buffer (Peripheral → DMA → CPU)

static uint8_t rx_buf[256] __attribute__((aligned(32)));

void uart_dma_receive(uint16_t len) {
    // Invalidate: discard any stale cache lines before DMA writes
    SCB_InvalidateDCache_by_Addr((uint32_t*)rx_buf, len);
    __DSB(); __ISB();

    HAL_UART_Receive_DMA(&huart3, rx_buf, len);
}

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart) {
    // DMA done, invalidate again to ensure CPU sees DMA's writes
    SCB_InvalidateDCache_by_Addr((uint32_t*)rx_buf, huart->RxXferSize);
    __DSB(); __ISB();

    process_data(rx_buf, huart->RxXferSize);
}

Note: Invalidate before DMA starts is defensive — it ensures no stale cache lines from prior CPU reads. Invalidate after DMA completes is mandatory.

Pattern 3: Bidirectional / Ping-Pong Buffers

For continuous streaming, use two buffers and alternate:

+------------------+     DMA active      +------------------+
|   BUFFER A       | <-----------------  |   BUFFER B       |
|  (CPU fills)     |                     |  (DMA drains)    |
+------------------+                     +------------------+
        ^                                         ^
        | Clean + DSB/ISB                         | Invalidate + DSB/ISB
        |                                         |
    CPU writes                              DMA writes

#define BUF_SIZE 512
static uint8_t ping_buf[BUF_SIZE] __attribute__((aligned(32)));
static uint8_t pong_buf[BUF_SIZE] __attribute__((aligned(32)));

volatile uint8_t *active_tx_buf = ping_buf;
volatile uint8_t *active_rx_buf = pong_buf;

void dma_tx_complete_callback(void) {
    // Switch buffers
    active_tx_buf = (active_tx_buf == ping_buf) ? pong_buf : ping_buf;

    // Prepare next buffer (CPU fills it)
    fill_buffer(active_tx_buf, BUF_SIZE);

    // Clean and start next DMA
    SCB_CleanDCache_by_Addr((uint32_t*)active_tx_buf, BUF_SIZE);
    __DSB(); __ISB();
    start_dma_tx(active_tx_buf, BUF_SIZE);
}

void dma_rx_complete_callback(uint16_t len) {
    // Invalidate so CPU sees DMA's data
    SCB_InvalidateDCache_by_Addr((uint32_t*)active_rx_buf, len);
    __DSB(); __ISB();

    process_data(active_rx_buf, len);

    // Switch and restart RX
    active_rx_buf = (active_rx_buf == ping_buf) ? pong_buf : ping_buf;
    SCB_InvalidateDCache_by_Addr((uint32_t*)active_rx_buf, BUF_SIZE);
    __DSB(); __ISB();
    start_dma_rx(active_rx_buf, BUF_SIZE);
}

Alignment and Size Gotchas

1. Alignment: Buffers must be 32-byte aligned. Use __attribute__((aligned(32))) or alignas(32) (C++11). Unaligned addresses cause the hardware to clean/invalidate adjacent cache lines — potentially corrupting unrelated data.

2. Size rounding: SCB_CleanDCache_by_Addr(addr, size) rounds size up to the next cache line boundary. If your buffer is 100 bytes, it cleans 128 bytes (4 lines). Ensure adjacent data isn’t corrupted by padding or separation.

3. Stack buffers: Never use stack buffers for DMA without cache maintenance. Stack is cached. If you must, clean/invalidate the exact stack range — but prefer static/global aligned buffers.

4. Cache line size: Hardcoded 32 bytes for Cortex-M7. Read CTR_EL0 (Cache Type Register) at runtime for portability:

static inline uint32_t get_dcache_line_size(void) {
    uint32_t ctr = __get_CTR();
    // CTR[15:0] = DminLine (log2 of line size in words)
    return 4U << ((ctr & 0xF) - 2);  // Convert to bytes
}

Common Mistakes

STM32H7 Specifics

On STM32H7, the Cortex-M7 core has 32 KB D-Cache and 32 KB I-Cache. The MDMA and DMA2D peripherals also access memory. Key points:

• D1/D2/D3 domains: DMA in D2 domain accessing D1 SRAM crosses domain boundaries — cache maintenance still required
• MPU regions: Configure buffers as Device or Normal Non-Cacheable to bypass cache entirely (simpler but slower)
• SCB_EnableDCache() / SCB_DisableDCache(): Enable early in SystemInit(), disable only for debugging

// Alternative: MPU non-cacheable region (no cache maintenance needed)
static void mpu_config_noncacheable(uint32_t addr, uint32_t size) {
    MPU_Region_InitTypeDef region = {0};
    region.Enable = MPU_REGION_ENABLE;
    region.BaseAddress = addr;
    region.Size = MPU_REGION_SIZE_256B;  // Adjust to cover buffer
    region.AccessPermission = MPU_REGION_FULL_ACCESS;
    region.IsBufferable = MPU_ACCESS_NOT_BUFFERABLE;
    region.IsCacheable = MPU_ACCESS_NOT_CACHEABLE;  // Key: non-cacheable
    region.IsShareable = MPU_ACCESS_SHAREABLE;
    region.Number = MPU_REGION_NUMBER0;
    region.TypeExtField = MPU_TEX_LEVEL0;
    region.SubRegionDisable = 0;
    HAL_MPU_ConfigRegion(&region);
}

Using MPU non-cacheable regions eliminates cache maintenance overhead but costs ~2-3x memory bandwidth. For high-throughput DMA (Ethernet, SDIO, DCMI), explicit cache maintenance with write-back cache is faster.

Summary

• DMA bypasses cache — explicit maintenance is mandatory on Cortex-M7
• Clean (CPU→DMA), Invalidate (DMA→CPU), CleanInvalidate (ownership swap)
• Always pair with __DSB(); __ISB() — barriers ensure completion and visibility
• Align buffers to 32 bytes — prevents adjacent data corruption
• Ping-pong buffers for continuous streaming — clean/invalidate per buffer, not global
• MPU non-cacheable regions are a valid alternative for simpler code at bandwidth cost

The cost of cache maintenance is negligible compared to the debugging hours saved. Make it a habit: every DMA buffer gets its maintenance calls, every time.
