Function Pointers Explained for Embedded Systems

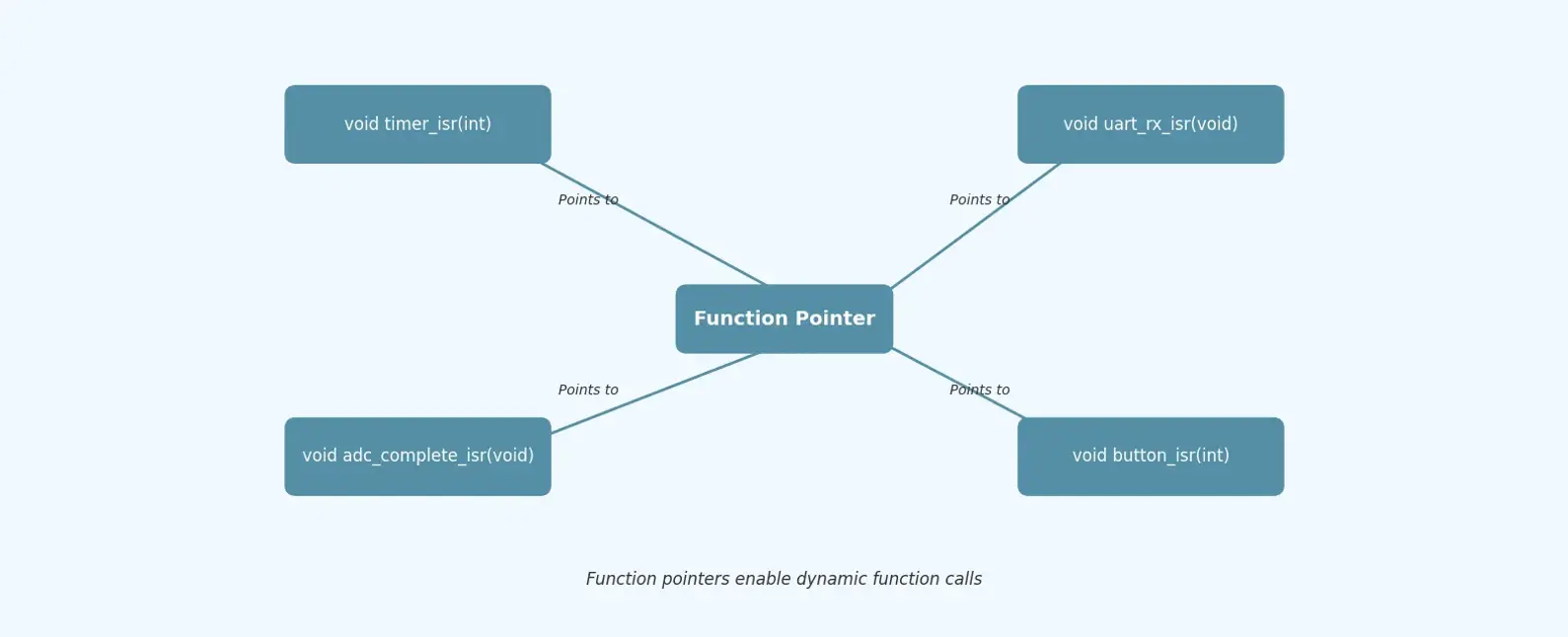

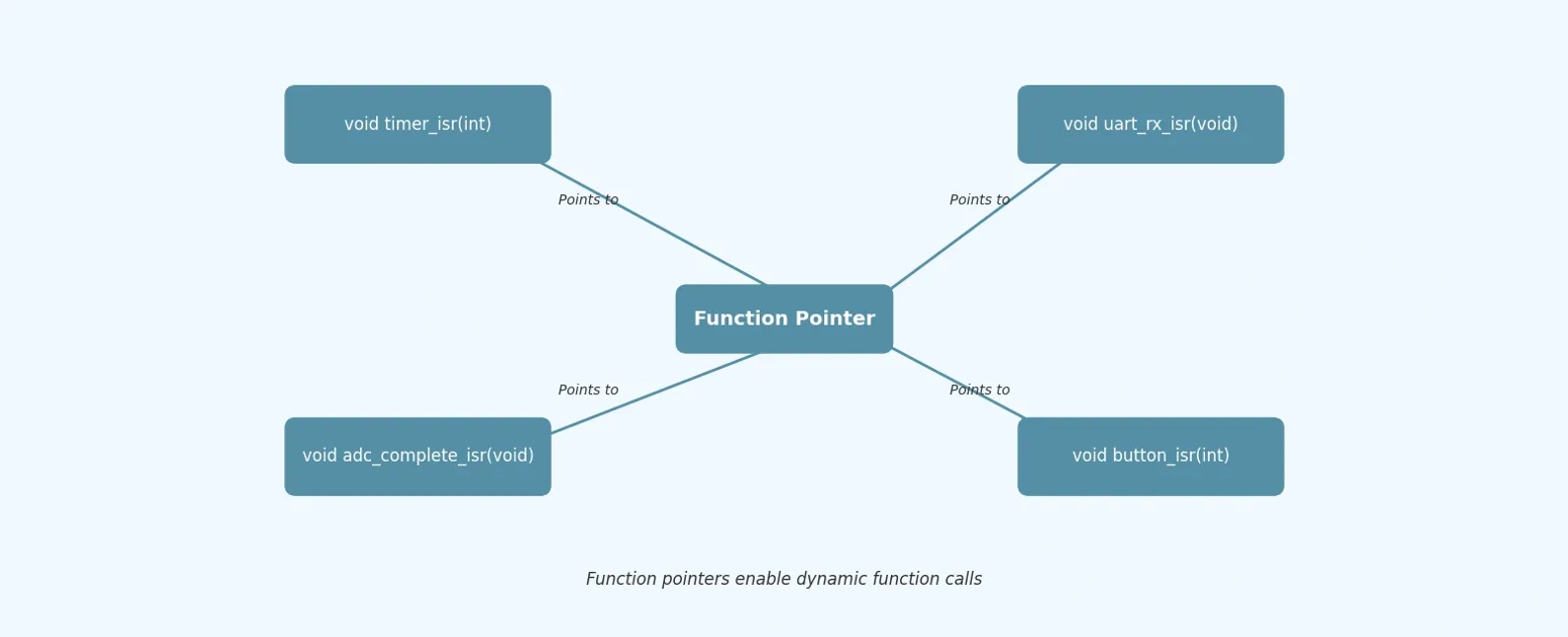

Function pointers are a powerful feature in the C programming language that enable dynamic behavior, modularity, and abstraction in embedded systems. By storing the address of a function in a pointer variable, developers can create flexible designs where the function to be called is determined at runtime. This capability is particularly valuable in resource-constrained environments where adaptability and code reuse are essential.

In embedded systems, function pointers find extensive use in implementing callback mechanisms for interrupt service routines, hardware abstraction layers, event-driven architectures, and state machines. They allow developers to decouple the invariant parts of an algorithm from the variable parts, leading to cleaner, more maintainable code. Understanding how to declare, initialize, and use function pointers is fundamental for any embedded programmer aiming to write efficient and scalable firmware.

Declaring and Using Function Pointers

A function pointer declaration specifies the return type and parameter types of the functions it can point to. The syntax can be intimidating at first, but breaking it down helps clarify its meaning.

// Declaration of a function pointer that points to a function
// returning void and taking an integer parameter
void (*func_ptr)(int);

To make function pointers easier to use, especially when dealing with complex signatures, the typedef keyword is commonly employed to create an alias for the function pointer type.

// Using typedef to create a function pointer type alias
typedef void (*callback_func_t)(int);

// Now we can declare variables of this type more intuitively
callback_func_t my_callback;

Assigning a function to a function pointer is straightforward: simply use the function name (without parentheses) as the address.

// Example function that matches the callback_func_t signature
void timer_expired_handler(int timer_id) {
    // Handle timer expiration
}

// Assign the function to the function pointer
my_callback = timer_expired_handler;

// Calling the function through the pointer
my_callback(42);  // Calls timer_expired_handler(42)

It’s important to note that the function pointer must point to a function with a matching signature; otherwise, the behavior is undefined. Especially critical on embedded systems where calling convention mismatches can corrupt registers or stack frames.

Practical Applications in Embedded Systems

Interrupt Service Routines (ISRs)

One of the most common uses of function pointers in embedded systems is in configuring interrupt service routines. Instead of hardcoding the ISR function, a function pointer allows the ISR to be dynamically assigned within a dispatcher, rather than changing the actual hardware ISR.

// In a device driver header
typedef void (*isr_func_t)(void);

// Function to set the ISR for a particular interrupt
void set_interrupt_handler(int interrupt_number, isr_func_t handler);

// In the application code
void uart_rx_isr(void) {
    // Process received byte
}

// During initialization
set_interrupt_handler(UART_RX_IRQ, uart_rx_isr);

This approach enables the same driver code to work with different ISR implementations, enhancing flexibility and reusability.

Hardware Abstraction Layers (HALs)

Function pointers are instrumental in creating hardware abstraction layers where the same API can be used with different underlying hardware implementations.

// HAL structure containing function pointers for pin operations
typedef struct {
    void (*set_pin_high)(uint8_t pin);
    void (*set_pin_low)(uint8_t pin);
    void (*toggle_pin)(uint8_t pin);
    uint8_t (*read_pin)(uint8_t pin);
} gpio_hal_t;

// Implementation for a specific microcontroller
void stm32_set_pin_high(uint8_t pin) { /* STM32-specific code */ }
void stm32_set_pin_low(uint8_t pin)  { /* STM32-specific code */ }
// ... other functions

// Initialize the HAL with the specific implementations
gpio_hal_t gpio_hal = {
    .set_pin_high = stm32_set_pin_high,
    .set_pin_low  = stm32_set_pin_low,
    .toggle_pin   = stm32_toggle_pin,
    .read_pin     = stm32_read_pin
};

// Application code uses the HAL without knowing the underlying MCU
gpio_hal.set_pin_high(5);

This pattern allows the application layer to remain unchanged when switching between different microcontrollers or peripheral implementations.

State Machines

Function pointers provide an elegant way to implement state machines, where each state is represented by a function pointer, and transitions are achieved by changing the current state pointer.

// Forward declaration
typedef struct state_machine_t state_machine_t;

// State function type
typedef void (*state_func_t)(state_machine_t *);

// State machine context
struct state_machine_t {
    state_func_t current_state;
    // Other state machine data
};

// State functions
void state_idle(state_machine_t *sm) {
    // Idle state behavior
    if (condition_a) {
        sm->current_state = state_processing;
    }
}

void state_processing(state_machine_t *sm) {
    // Processing state behavior
    if (condition_b) {
        sm->current_state = state_complete;
    }
}

// State machine update function
void state_machine_update(state_machine_t *sm) {
    sm->current_state(sm);  // Call the current state function
}

This technique results in state machines that are easy to extend and modify, as each state is encapsulated in its own function.

Callback Frameworks

Many embedded libraries and frameworks use function pointers to allow users to customize behavior without modifying the library code. This is particularly useful for event-driven architectures where specific actions need to be taken in response to events like button presses, sensor thresholds, or communication timeouts.

// Event types
typedef enum {
    EVENT_BUTTON_PRESS,
    EVENT_SENSOR_THRESHOLD,
    EVENT_COMM_TIMEOUT
} event_t;

// Callback function type
typedef void (*event_callback_t)(event_t event, void *context);

// Event manager structure
typedef struct {
    event_callback_t callback;
    void *context;
} event_manager_t;

// Register a callback
void event_manager_register_callback(event_manager_t *em, event_callback_t cb, void *ctx) {
    em->callback = cb;
    em->context = ctx;
}

// Trigger an event
void event_manager_trigger_event(event_manager_t *em, event_t event) {
    if (em->callback) {
        em->callback(event, em->context);
    }
}

// Application callback
void my_event_handler(event_t event, void *context) {
    switch (event) {
        case EVENT_BUTTON_PRESS:
            // Handle button press
            break;
        case EVENT_SENSOR_THRESHOLD:
            // Handle sensor event
            break;
        // ... other cases
    }
}

// During initialization
event_manager_t em;
event_manager_register_callback(&em, my_event_handler, NULL);

This pattern enables the application to extend the functionality of the event manager without altering its source code.

Best Practices and Pitfalls

Initialization and Null Checks

Always initialize function pointers to a known value, preferably NULL if they are not immediately assigned a valid function. Before calling a function through a pointer, verify that the pointer is not NULL to avoid undefined behavior.

callback_func_t cb = NULL;
// ... later
if (cb != NULL) {
    cb(parameter);
}

Type Safety

Ensure that the function pointer type exactly matches the signature of the functions it points to. Mismatched signatures can lead to stack corruption or unexpected behavior, especially on architectures with strict calling conventions.

Memory Considerations

Function pointers themselves typically consume only a few bytes (the size of a pointer on the target architecture). However, be mindful of placing large numbers of function pointers in memory-constrained sections like the stack or small RAM banks.

Function Pointer Arrays

For scenarios involving multiple related functions (e.g., a set of driver operations or state handlers), consider using arrays of function pointers. This can simplify dispatch logic and improve performance.

// Array of function pointers for different operations
void (*operation_table[OP_COUNT])(void) = {
    op_init,
    op_read,
    op_write,
    op_deinit
};

// Call operation by index
operation_table[op_index]();

Avoiding Function Pointers in ISRs (When Possible)

While function pointers are useful in ISRs for flexibility, they introduce an indirect function call which may add a few cycles of overhead. In time-critical ISRs, direct function calls might be preferable. However, the flexibility often outweighs the minimal performance cost, especially when the ISR is not extremely time-sensitive.

Summary

Function pointers are a versatile tool in the embedded C programmer’s arsenal, enabling dynamic behavior, code reuse, and modular design. They are particularly valuable in:

• Interrupt Service Routines: Allowing flexible ISR assignment
• Hardware Abstraction Layers: Providing a consistent API across different hardware
• State Machines: Encapsulating state behavior in functions
• Callback Frameworks: Enabling user-defined behavior in libraries and middleware

By mastering function pointers, embedded developers can create firmware that is not only functional but also adaptable, maintainable, and scalable. Key takeaways include:

1. Always use typedef to simplify complex function pointer syntax
2. Initialize function pointers and validate them before use
3. Ensure type safety between function pointers and their target functions
4. Leverage function pointer arrays for dispatch tables and state machines
5. Consider the trade-offs between flexibility and performance in time-critical code

As embedded systems continue to grow in complexity, the ability to write flexible and reusable code becomes increasingly important. Function pointers provide a mechanism to achieve this flexibility without sacrificing the efficiency and control that C offers in the embedded domain.
