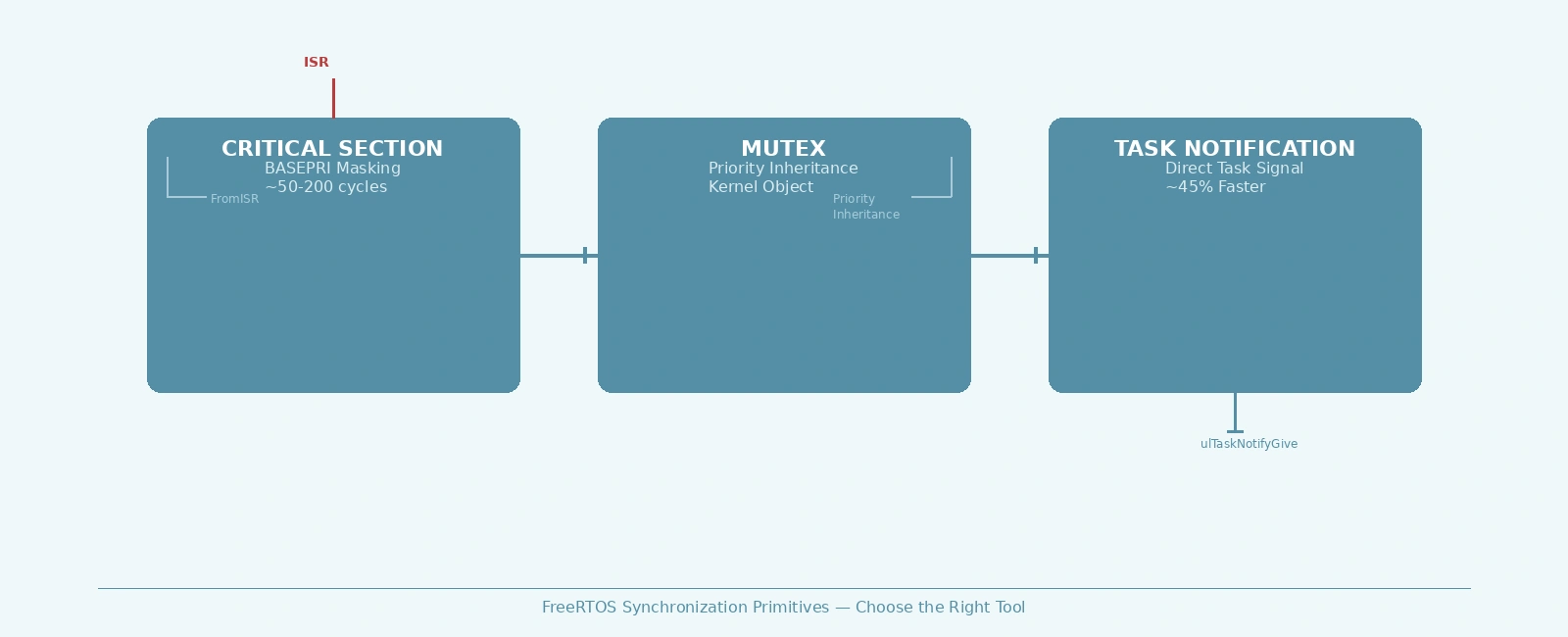

FreeRTOS Critical Sections and Synchronization Primitives

FreeRTOS critical sections are the most primitive synchronization mechanism in the kernel, yet they are frequently misused. Understanding when to use taskENTER_CRITICAL versus a mutex, semaphore, or task notification is essential for building responsive, deterministic real-time systems.

The Critical Section Mechanism

On ARM Cortex-M, FreeRTOS implements critical sections by manipulating the BASEPRI register rather than globally disabling interrupts with PRIMASK. This distinction matters: BASEPRI masks interrupts with priority values equal to or greater than configMAX_SYSCALL_INTERRUPT_PRIORITY (lower urgency in Cortex-M’s inverted numbering), while interrupts with numerically lower priority values (higher urgency) remain enabled — preserving responsiveness for critical ISRs like motor control loops or safety monitors.

/* FreeRTOS critical section macros expand to: */
#define taskENTER_CRITICAL()    vPortEnterCritical()
#define taskEXIT_CRITICAL()     vPortExitCritical()

/* Simplified Cortex-M implementation: */
void vPortEnterCritical(void) {
    portDISABLE_INTERRUPTS();
    uxCriticalNesting++;
}

void vPortExitCritical(void) {
    configASSERT( uxCriticalNesting );
    uxCriticalNesting--;
    if( uxCriticalNesting == 0 ) {
        portENABLE_INTERRUPTS();
    }
}

/* Where portDISABLE_INTERRUPTS() expands to: */
static inline void vPortRaiseBASEPRI(void) {
    uint32_t ulNewBASEPRI;
    __asm volatile (
        "mov %0, %1       \n"  /* Load priority threshold         */
        "cpsid i          \n"  /* Disable interrupts (PRIMASK)    */
        "msr basepri, %0  \n"  /* Set BASEPRI to mask threshold   */
        "isb              \n"  /* Flush pipeline                  */
        "dsb              \n"  /* Complete all memory accesses    */
        "cpsie i          \n"  /* Re-enable interrupts (PRIMASK)  */
        : "=r" (ulNewBASEPRI)
        : "i" (configMAX_SYSCALL_INTERRUPT_PRIORITY)
        : "memory"
    );
}

The nesting count (uxCriticalNesting) allows recursive entry — each taskENTER_CRITICAL increments the counter, and interrupts only re-enable when the count reaches zero.

When to Use Critical Sections

Critical sections are appropriate for:

1. Hardware register access — Modifying peripheral registers that aren’t atomic
2. Small shared variables — Updating a few bytes (flags, counters) where a mutex would add excessive overhead
3. Interrupt context — ISRs cannot use mutexes; taskENTER_CRITICAL_FROM_ISR/taskEXIT_CRITICAL_FROM_ISR provide the only mutual exclusion option

/* Example: Atomic flag update shared with ISR */
volatile uint32_t g_system_flags = 0;

void set_flag_from_task(uint32_t flag) {
    taskENTER_CRITICAL();
    g_system_flags |= flag;
    taskEXIT_CRITICAL();
}

uint32_t get_and_clear_flags_from_isr(void) {
    uint32_t flags;
    UBaseType_t saved = taskENTER_CRITICAL_FROM_ISR();
    flags = g_system_flags;
    g_system_flags = 0;
    taskEXIT_CRITICAL_FROM_ISR(saved);
    return flags;
}

When NOT to Use Critical Sections

Avoid critical sections for:

• Long operations — Anything exceeding ~10 µs degrades interrupt latency
• Complex data structures — Linked lists, queues, trees need mutex protection
• Blocking operations — Never call vTaskDelay, queue sends, or semaphore takes inside a critical section
• Cross-task synchronization — Use mutexes, semaphores, or task notifications instead

Mutex vs Critical Section: The Trade-off

+-------------------+----------------------+------------------------+
| Aspect            | Critical Section     | Mutex                  |
+-------------------+----------------------+------------------------+
| Interrupt Latency | Blocks all ISRs      | Only blocks contending |
|                   | up to configMAX_     | tasks; ISRs run free   |
|                   | SYSCALL_INTERRUPT_   |                        |
|                   | PRIORITY             |                        |
+-------------------+----------------------+------------------------+
| Priority Inversion| None (no ownership)  | Prevented by priority  |
|                   |                      | inheritance            |
+-------------------+----------------------+------------------------+
| Overhead          | ~20-40 cycles        | ~500-2000 cycles       |
|                   | (enter + exit pair)  | (kernel calls)         |
+-------------------+----------------------+------------------------+
| Scope             | Global (all code)    | Per-resource           |
+-------------------+----------------------+------------------------+
| Usable in ISR     | Yes (FromISR vars)   | No                     |
+-------------------+----------------------+------------------------+

Priority Inheritance in FreeRTOS Mutexes

FreeRTOS mutexes implement priority inheritance automatically. When a high-priority task blocks on a mutex held by a low-priority task, the low-priority task temporarily inherits the high priority until it releases the mutex.

SemaphoreHandle_t i2c_mutex;

void i2c_task_high_priority(void *pvParameters) {
    for (;;) {
        if (xSemaphoreTake(i2c_mutex, pdMS_TO_TICKS(100)) == pdTRUE) {
            /* High-priority task gets the bus */
            i2c_transfer(I2C1, ...);
            xSemaphoreGive(i2c_mutex);
        }
        vTaskDelay(pdMS_TO_TICKS(10));
    }
}

void i2c_task_low_priority(void *pvParameters) {
    for (;;) {
        if (xSemaphoreTake(i2c_mutex, pdMS_TO_TICKS(1000)) == pdTRUE) {
            /* Low-priority task inherits high priority while holding mutex */
            i2c_transfer(I2C1, ...);
            xSemaphoreGive(i2c_mutex);  /* Priority drops back here */
        }
        vTaskDelay(pdMS_TO_TICKS(100));
    }
}

Without priority inheritance, a medium-priority task could preempt the low-priority mutex holder, causing unbounded priority inversion — the classic Mars Pathfinder failure mode.

Task Notifications as Lightweight Synchronization

Since FreeRTOS v8.2.0, task notifications provide a faster alternative to binary semaphores for task-to-task and ISR-to-task signaling. Each task has a 32-bit notification value and a state flag.

/* ISR signaling a task */
void EXTI0_IRQHandler(void) {
    BaseType_t xHigherPriorityTaskWoken = pdFALSE;
    vTaskNotifyGiveFromISR(xTaskToNotify, &xHigherPriorityTaskWoken);
    portYIELD_FROM_ISR(xHigherPriorityTaskWoken);
}

/* Task waiting for notification */
void waiting_task(void *pvParameters) {
    for (;;) {
        ulTaskNotifyTake(pdTRUE, portMAX_DELAY);  /* Blocks until notified */
        process_event();
    }
}

Notifications are ~45% faster than binary semaphores and use less RAM (no queue structure). However, they only support one-to-one signaling — use semaphores or queues for many-to-one patterns.

Choosing the Right Primitive

+--------------------+--------------------------------------------------+
| Scenario           | Recommended Primitive                            |
+--------------------+--------------------------------------------------+
| Hardware register  | taskENTER_CRITICAL /                             |
| update (few insns) | taskENTER_CRITICAL_FROM_ISR                      |
+--------------------+--------------------------------------------------+
| Shared buffer /    | Mutex (priority inheritance)                     |
| complex struct     |                                                  |
+--------------------+--------------------------------------------------+
| ISR -> Task signal | Task notification (ulTaskNotifyTake/Give)        |
+--------------------+--------------------------------------------------+
| Task -> Task sync  | Binary semaphore or task notification            |
| (one-to-one)       |                                                  |
+--------------------+--------------------------------------------------+
| Task -> Task sync  | Counting semaphore or queue                      |
| (many-to-one)      |                                                  |
+--------------------+--------------------------------------------------+
| Data transfer      | Queue (or stream/message buffer for large)       |
| between tasks      |                                                  |
+--------------------+--------------------------------------------------+
| Mutual exclusion   | Mutex (NOT binary semaphore)                     |
| with priority      |                                                  |
| inheritance        |                                                  |
+--------------------+--------------------------------------------------+

Common Pitfalls

1. Calling API functions in critical sections:

/* WRONG - undefined behavior */
taskENTER_CRITICAL();
xQueueSend(queue, &item, 0);  /* May yield or re-enable interrupts! */
taskEXIT_CRITICAL();

/* CORRECT - queues are inherently thread-safe */
xQueueSend(queue, &item, pdMS_TO_TICKS(10));

2. Forgetting FromISR variants in ISRs:

/* WRONG - crashes or corrupts kernel */
void BAD_IRQHandler(void) {
    taskENTER_CRITICAL();  /* Not ISR-safe! */
    ...
    taskEXIT_CRITICAL();
}

/* CORRECT */
void GOOD_IRQHandler(void) {
    UBaseType_t saved = taskENTER_CRITICAL_FROM_ISR();
    ...
    taskEXIT_CRITICAL_FROM_ISR(saved);
}

3. Excessive critical section duration:

/* WRONG - blocks interrupts for milliseconds */
taskENTER_CRITICAL();
for (int i = 0; i < 1000; i++) {
    process_byte(buffer[i]);
}
taskEXIT_CRITICAL();

/* CORRECT - copy data quickly, process outside */
taskENTER_CRITICAL();
memcpy(local_buf, shared_buf, sizeof(local_buf));
taskEXIT_CRITICAL();
process_buffer(local_buf);  /* No interrupts blocked */

Measuring Critical Section Impact

Instrument your critical sections to measure actual duration:

#include "SEGGER_RTT.h"  /* Or use DWT cycle counter */

void measured_critical_section(void) {
    uint32_t start = DWT->CYCCNT;
    taskENTER_CRITICAL();
    /* ... critical work ... */
    taskEXIT_CRITICAL();
    uint32_t cycles = DWT->CYCCNT - start;
    uint32_t us_int = cycles / (SystemCoreClock / 1000000U);
    uint32_t us_frac = (cycles % (SystemCoreClock / 1000000U)) * 100
                       / (SystemCoreClock / 1000000U);

    if (us_int > 10) {
        /* SEGGER_RTT_printf does not support %f — use integer math */
        SEGGER_RTT_printf(0, "WARN: Critical section took %u.%02u us\n",
                          us_int, us_frac);
    }
}

Enable configUSE_TRACE_FACILITY and configGENERATE_RUN_TIME_STATS for kernel-level profiling.

Summary

• Critical sections are for ultra-short, interrupt-safe atomic operations — typically hardware register access or a few bytes of shared data
• Mutexes are the default choice for mutual exclusion between tasks — they provide priority inheritance and don’t block ISRs
• Task notifications are the fastest ISR-to-task and one-to-one task signaling mechanism
• Semaphores and queues handle many-to-one synchronization and data transfer
• Never call FreeRTOS APIs inside critical sections; never use critical sections for long operations
• Measure your critical section durations — keep them under 10 µs on Cortex-M

The right primitive minimizes both latency and priority inversion while keeping code maintainable. When in doubt, start with a mutex — the overhead is negligible compared to the cost of a subtle race condition or priority inversion bug in production.
