Zephyr Dynamic Memory Allocation Failures: Debugging

Introduction

Dynamic memory allocation is a powerful feature in embedded systems, but it introduces risks such as fragmentation, leaks, and allocation failures. In Zephyr RTOS, dynamic memory allocation failures can lead to system instability, crashes, or undefined behavior. This article explores the root causes of such failures, provides debugging techniques, and offers practical solutions to ensure reliable memory usage in your Zephyr applications.

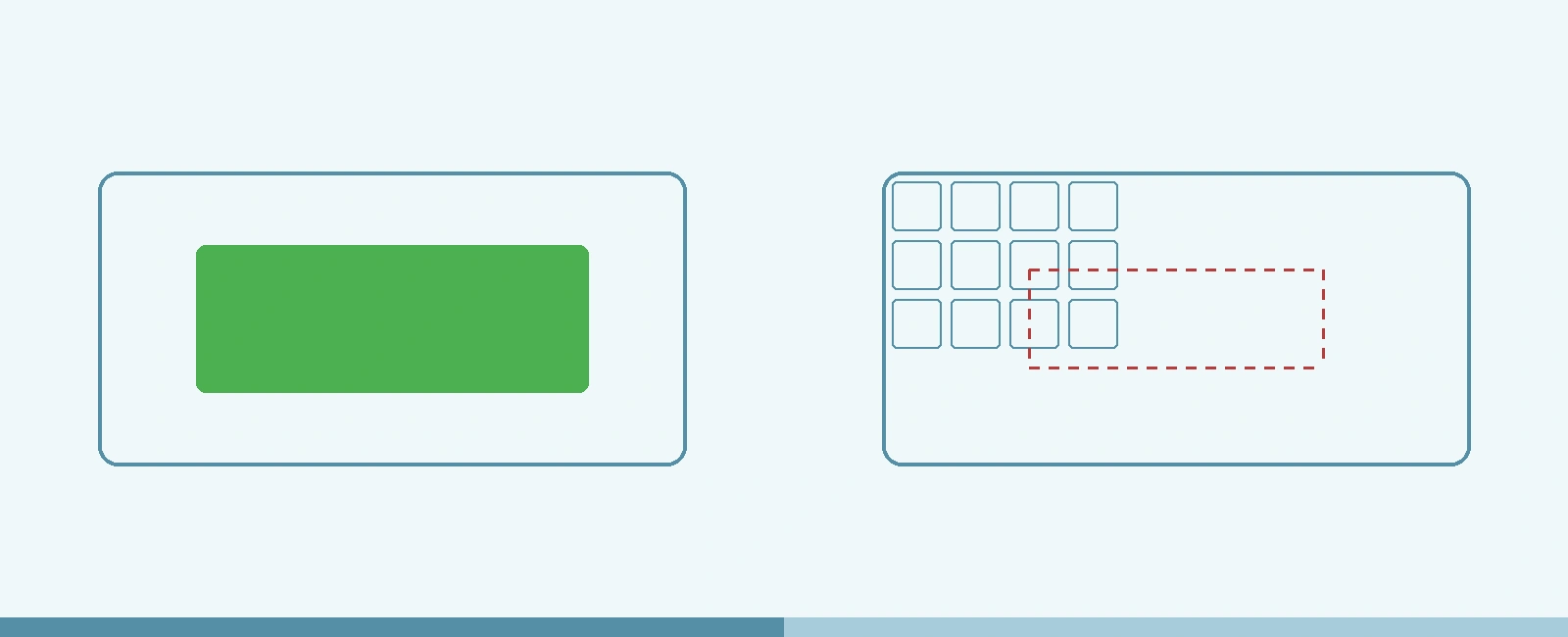

Initial Contiguous System Heap (128 Bytes Free):
+---------------------------------------------------------------+
|                      128 Bytes Free Pool                      |
+---------------------------------------------------------------+

Four Interleaved Allocations (A=32B, B=32B, C=32B, D=32B):
+-----------+-----------+-----------+-----------+
| Chunk A   | Chunk B   | Chunk C   | Chunk D   |
|  (32B)    |  (32B)    |  (32B)    |  (32B)    |
| [Alloc'd] | [Alloc'd] | [Alloc'd] | [Alloc'd] |
+-----------+-----------+-----------+-----------+

External Fragmentation: Chunks A and C Freed (B and D remain live):
+-----------+-----------+-----------+-----------+
| Chunk A   | Chunk B   | Chunk C   | Chunk D   |
|  (32B)    |  (32B)    |  (32B)    |  (32B)    |
|  [FREE]   | [Alloc'd] |  [FREE]   | [Alloc'd] |
+-----------+-----------+-----------+-----------+
  Total Free = 64B across two non-adjacent 32B spans.

Attempt to Allocate 64 Contiguous Bytes --> FAILS (-ENOMEM):
+-----------+-----------+-----------+-----------+
|   32B     |   32B     |   32B     |   32B     |
|  [FREE]   | [BLOCKED] |  [FREE]   | [BLOCKED] |
+-----------+-----------+-----------+-----------+
  Largest contiguous free span = 32B < 64B requested.
  Result: k_malloc(64) returns NULL despite 64B total free.

Root Cause Analysis

Heap Fragmentation

Over time, repeated allocation and deallocation of memory blocks of varying sizes can lead to severe heap fragmentation. In Zephyr RTOS, dynamic memory allocations through k_malloc() and k_heap_alloc() draw from a Cartesian-tree / multi-bucket allocator (sys_heap). Although sys_heap automatically coalesces adjacent free chunks during deallocation, it cannot relocate or compact live memory.

Fragmentation manifests in two forms:

• Internal Fragmentation: Wasted space inside an allocated chunk due to word alignment constraints (e.g., 4-byte or 8-byte boundaries) or allocator chunk header overhead.
• External Fragmentation: Free memory becomes divided into non-contiguous slices between active allocations.

For example, if you allocate four 32-byte blocks (A, B, C, and D) and later free A and C while retaining B and D, the heap contains 64 bytes of total unallocated space split across two non-adjacent 32-byte spans (between B and D, and before B). If an incoming task requests a 64-byte contiguous buffer, the allocator traverses its free lists and discovers that no single chunk can satisfy the request, returning NULL (-ENOMEM) despite sufficient aggregate free RAM.

Memory Leaks

A memory leak occurs when dynamically allocated memory is never returned to the heap, steadily diminishing the available pool until allocations fail. In embedded Zephyr applications, memory leaks frequently stem from:

• Bypassed Error Paths: A function allocates a memory block (such as an incoming UART framing buffer), encounters a validation error or timeout on a subsequent peripheral read, and returns immediately without invoking k_free().
• Orphaned Thread Pointers: Thread termination or unjoined workqueue items that leave dynamically allocated contexts uncollected.
• Asymmetric Driver Hand-offs: Passing pointers through Zephyr message queues (k_msgq) or FIFO channels (k_fifo) where the consumer assumes static ownership or fails to pair deallocation on packet rejection.

Because memory leaks consume RAM gradually, they rarely trigger immediate crashes. Instead, the application degrades silently over hours or days until a critical allocation fails, precipitating hard faults or watchdogs.

Insufficient Heap Size

If the configured heap size is smaller than the peak concurrent allocation demand of the application, exhaustion occurs even in the absence of leaks or fragmentation. The global system heap in Zephyr is sized using CONFIG_HEAP_MEM_POOL_SIZE (specified in bytes in prj.conf).

Underestimating peak memory demand is particularly common in networking (Zephyr Bluetooth LE, OpenThread, or TCP/IP socket buffers) and sensor hub processing pipelines. When multiple high-priority events burst simultaneously, temporary buffers exhaust the available pool. Sizing the heap requires empirical high-water mark profiling rather than nominal steady-state estimation.

Incorrect API Usage and Execution Context Violations

Misusing Zephyr’s memory management primitives creates subtle bugs, memory corruption, and allocation panics:

• Ignoring Return Pointers: All Zephyr allocation primitives (k_malloc(), k_calloc(), k_heap_alloc()) return NULL upon failure. Failing to validate the returned pointer before dereference induces immediate HardFaults or MPU memory management exceptions.
• Calling Dynamic Allocators in ISR Context: While k_malloc() executes with K_NO_WAIT and technically does not sleep, allocating from sys_heap within an Interrupt Service Routine (ISR) is a dangerous anti-pattern. Heap traversal operates under a spinlock; executing variable-duration chunk searches inside an ISR introduces unpredictable latency jitter and violates real-time determinism. Furthermore, attempting to call k_heap_alloc() with any blocking timeout (timeout > 0) from an ISR triggers a fatal kernel assertion failure (z_is_in_isr()).
• Heap and Slab Mismatches: Passing a block allocated via k_mem_slab_alloc() into k_free(), or conversely returning a k_malloc() pointer with k_mem_slab_free(), corrupts allocator bookkeeping headers and leads to catastrophic heap breakdown.
• Double Free Operations: Calling k_free() multiple times on the same pointer corrupts the free-list chunk pointers inside sys_heap, causing subsequent allocation loops or kernel oops.

Solution Approaches

Increasing Heap Size

Adjust CONFIG_HEAP_MEM_POOL_SIZE in your project’s prj.conf to accommodate peak buffer utilization:

CONFIG_HEAP_MEM_POOL_SIZE=32768

While increasing heap capacity resolves immediate capacity constraints, it consumes dedicated SRAM that cannot be reclaimed by thread stacks or static bss segments. If root causes like memory leaks or external fragmentation remain unaddressed, increasing the heap merely defers the eventual failure.

Fixing Memory Leaks via Runtime Monitoring and Shell Telemetry

Zephyr provides robust instrumentation tools to monitor allocation dynamics and pinpoint uncollected memory:

1. Runtime Statistics (CONFIG_SYS_HEAP_RUNTIME_STATS): Enables tracking of current allocated bytes, total free bytes, and historical high-water marks (max_allocated_bytes).
2. Interactive Kernel Shell (CONFIG_SHELL=y and CONFIG_KERNEL_SHELL=y): Exposes the live kernel heap command over serial UART or RTT, allowing engineers to query heap health in real time without external debuggers.
3. Heap Validation (CONFIG_SYS_HEAP_VALIDATE): Instruments sys_heap routines to perform integrity audits on boundary tags and chunk pointers during every allocation and release.

Replacing Variable Heap with Fixed-Size Memory Slabs (k_mem_slab)

For high-frequency, repetitive allocations (such as network packets, telemetry frames, or sensor sample queues), dynamic heaps should be replaced with Zephyr Memory Slabs.

The k_mem_slab kernel primitive manages a pre-allocated pool of fixed-size memory blocks using an internal free list:

• Zero External Fragmentation: Because all blocks within a slab are identically sized, external fragmentation is structurally eliminated.
• O(1) Determinism: Allocation (k_mem_slab_alloc()) and release (k_mem_slab_free()) operate in deterministic, constant time, making them safe and predictable even under heavy system load.
• ISR-Safe: Memory slabs can be allocated from ISRs using K_NO_WAIT without risking heap spinlock latency spikes.

Robust Error Handling and Defensive Unwinding

In multi-resource initialization, partial allocations must be rigorously unwound when a subsequent allocation fails. Adopting the canonical structured cleanup pattern (goto fail or single-point-of-exit) ensures no orphaned memory blocks remain allocated when errors occur.

Code Examples

Example 1: Multi-Resource Allocation with Defensive Error Unwinding

This example demonstrates how to allocate multiple dynamic buffers and employ a structured cleanup label to prevent memory leaks if a secondary allocation fails:

#include <zephyr/kernel.h>
#include <zephyr/logging/log.h>
#include <string.h>
#include <errno.h>

LOG_MODULE_REGISTER(mem_mgmt, LOG_LEVEL_INF);

int construct_network_payload(size_t header_sz, size_t payload_sz,
                              uint8_t **out_hdr, uint8_t **out_payload) {
    uint8_t *header_buf = NULL;
    uint8_t *payload_buf = NULL;

    /* Primary buffer allocation */
    header_buf = (uint8_t *)k_malloc(header_sz);
    if (header_buf == NULL) {
        LOG_ERR("Failed to allocate header buffer (%zu bytes)", header_sz);
        return -ENOMEM;
    }

    /* Secondary buffer allocation */
    payload_buf = (uint8_t *)k_malloc(payload_sz);
    if (payload_buf == NULL) {
        LOG_ERR("Failed to allocate payload buffer (%zu bytes)", payload_sz);
        goto fail_payload;
    }

    /* Initialise buffers */
    memset(header_buf, 0x00, header_sz);
    memset(payload_buf, 0x00, payload_sz);

    /* Transfer ownership to caller */
    *out_hdr = header_buf;
    *out_payload = payload_buf;
    return 0;

fail_payload:
    k_free(header_buf);
    return -ENOMEM;
}

Example 2: Deterministic Memory Allocation Using k_mem_slab

This example demonstrates setting up and consuming a zero-fragmentation memory slab for uniform packet buffers:

#include <zephyr/kernel.h>
#include <zephyr/sys/printk.h>

#define PACKET_BLOCK_SIZE  128
#define PACKET_BLOCK_COUNT 16
#define PACKET_ALIGNMENT   4

/* Statically define slab: 16 blocks of 128 bytes each, 4-byte aligned */
K_MEM_SLAB_DEFINE(packet_slab, PACKET_BLOCK_SIZE, PACKET_BLOCK_COUNT, PACKET_ALIGNMENT);

int process_telemetry_frame(const uint8_t *src_data, size_t len) {
    void *slab_block = NULL;

    if (len > PACKET_BLOCK_SIZE) {
        return -EINVAL;
    }

    /* O(1) allocation with non-blocking timeout */
    int status = k_mem_slab_alloc(&packet_slab, &slab_block, K_NO_WAIT);
    if (status != 0) {
        printk("Packet slab exhausted (status: %d)\n", status);
        return -ENOMEM;
    }

    memcpy(slab_block, src_data, len);

    /* Process packet ... */

    /* Release block back to slab */
    k_mem_slab_free(&packet_slab, slab_block);
    return 0;
}

Example 3: Enabling Heap Debugging in prj.conf

Add the following lines to your project configuration to enable heap debugging and monitoring:

# Sizing the global kernel system heap
CONFIG_HEAP_MEM_POOL_SIZE=32768

# Enable runtime heap statistics collection
CONFIG_SYS_HEAP_RUNTIME_STATS=y

# Enable heap integrity boundary audits
CONFIG_SYS_HEAP_VALIDATE=y

# Enable Zephyr Shell subsystem and Kernel Shell module
CONFIG_SHELL=y
CONFIG_KERNEL_SHELL=y

This configuration sets up a 32 KB system heap, activates real-time allocation telemetry, enables integrity boundary audits, and exposes the interactive kernel heap shell command.

Example 4: Stack Checking to Detect Allocation-Induced Stack Overflows

While distinct from heap allocations, stack overflows often corrupt nearby heap boundaries or occur when developers replace failed heap calls with excessive automatic stack variables:

# Enable hardware MPU/MMU stack overflow protection
CONFIG_HW_STACK_PROTECTION=y

# Enable runtime thread stack tracking and high-water mark logging
CONFIG_THREAD_STACK_INFO=y
CONFIG_INIT_STACKS=y
CONFIG_THREAD_ANALYZER=y
CONFIG_THREAD_ANALYZER_AUTO=y
CONFIG_THREAD_ANALYZER_AUTO_INTERVAL=10

Example 5: Programmatic Heap Diagnostics with sys_heap_runtime_stats_get

For headless or automated monitoring, applications can query heap statistics directly:

#include <zephyr/kernel.h>
#include <zephyr/sys/sys_heap.h>
#include <zephyr/logging/log.h>

LOG_MODULE_REGISTER(heap_monitor, LOG_LEVEL_INF);

#if defined(CONFIG_SYS_HEAP_RUNTIME_STATS)
void log_system_heap_health(struct sys_heap *heap) {
    struct sys_memory_stats stats;

    if (sys_heap_runtime_stats_get(heap, &stats) == 0) {
        LOG_INF("Heap Status: Free=%zu B, Allocated=%zu B, Peak Usage=%zu B",
                stats.free_bytes, stats.allocated_bytes, stats.max_allocated_bytes);
    } else {
        LOG_WRN("Unable to read heap runtime statistics");
    }
}
#endif

Verification and Testing

Step 1: Real-Time Shell Inspection

With CONFIG_SHELL=y, CONFIG_KERNEL_SHELL=y, and CONFIG_SYS_HEAP_RUNTIME_STATS=y compiled in, connect to the device console and execute:

uart:~$ kernel heap
free:      24192 B
allocated:  8576 B
max alloc: 14336 B

If allocated steadily increases over repeated operational cycles while free fails to return to baseline, a memory leak is actively depleting RAM.

Step 2: Run Memory Stress and Fragmentation Tests

Implement a firmware soak test that allocates and deallocates buffers with varying lifespans to expose fragmentation boundaries:

#include <zephyr/kernel.h>
#include <zephyr/sys/printk.h>

#define STRESS_ITERATIONS 100
#define MAX_CHUNKS        32

void run_heap_stress_test(void) {
    void *allocated_chunks[MAX_CHUNKS] = {NULL};

    printk("Starting heap fragmentation stress test...\n");

    for (int iter = 0; iter < STRESS_ITERATIONS; iter++) {
        int idx = iter % MAX_CHUNKS;

        /* Free prior chunk if present */
        if (allocated_chunks[idx] != NULL) {
            k_free(allocated_chunks[idx]);
            allocated_chunks[idx] = NULL;
        }

        /* Allocate dynamic variable-sized chunk */
        size_t req_sz = ((iter * 17) % 256) + 16;
        allocated_chunks[idx] = k_malloc(req_sz);

        if (allocated_chunks[idx] == NULL) {
            printk("STRESS TEST FAILURE: Allocation failed at iter %d for %zu bytes\n",
                   iter, req_sz);
            break;
        }
    }

    /* Final cleanup */
    for (int i = 0; i < MAX_CHUNKS; i++) {
        if (allocated_chunks[i] != NULL) {
            k_free(allocated_chunks[i]);
        }
    }
    printk("Stress test complete.\n");
}

Step 3: Audit Heap Boundary Integrity

When CONFIG_SYS_HEAP_VALIDATE=y is set, invoke sys_heap_validate() periodically across unit tests to assert that chunk headers, guard words, and free list pointers remain uncorrupted by buffer overruns.

Step 4: Long-Duration Soak Verification

Deploy firmware builds under full peripheral stress (BLE advertisements, sensor DMA transfers, network socket transactions) for 48 to 72 hours. Validate that the high-water mark (max alloc) plateaus beneath safe operating limits and does not crawl toward heap exhaustion.

Summary

Dynamic memory allocation failures in Zephyr RTOS typically result from external heap fragmentation, unhandled error leaks, undersized heap configuration, or misuse of allocators in interrupt contexts.

Engineers can resolve and prevent these failures by:

• Replacing high-frequency variable allocations with deterministic k_mem_slab memory pools.
• Structuring multi-allocation routines with explicit error unwinding to guarantee resource reclamation.
• Monitoring live heap health through the kernel heap shell command and CONFIG_SYS_HEAP_RUNTIME_STATS.
• Hardening the memory subsystem with CONFIG_SYS_HEAP_VALIDATE and hardware MPU stack protection (CONFIG_HW_STACK_PROTECTION).
