Zephyr PM Subsystem: Deep Sleep, Device Runtime PM, and Policy-Driven Power Control

Zephyr’s Power Management (PM) subsystem is not a single feature — it’s a layered architecture spanning CPU idle states, device runtime power management, and policy-driven orchestration. For battery-operated devices running on nRF52, STM32, or ESP32, understanding how these layers interact is the difference between weeks of battery life and days.

System Power Management: CPU Idle States

The System PM layer manages CPU power states. When the scheduler finds no runnable threads, it calls pm_system_suspend() which delegates to the PM policy. The policy selects a target state from the SoC’s supported states:

+--------------------------------------------------------------+
|                    CPU POWER STATES                          |
+--------------------------------------------------------------+
|  ACTIVE (RUNNING)                                            |
|     |                                                        |
|     | pm_system_suspend()                                    |
|     v                                                        |
|  IDLE (WFI/WFE)           <-- Light sleep, instant wake      |
|     |                                                        |
|     | Deeper sleep requested                                 |
|     v                                                        |
|  STANDBY / DEEP SLEEP     <-- SRAM retention, ~10-50us wake  |
|     |                                                        |
|     | Deeper sleep requested                                 |
|     v                                                        |
|  SHUTDOWN / OFF           <-- Full power loss, cold boot     |
+--------------------------------------------------------------+

Each SoC defines its states in soc_power_states.h. For example, nRF52840 defines:

/* soc_power_states.h snippet for nRF52840 */
enum power_states {
    SYS_POWER_STATE_ACTIVE = 0,
    SYS_POWER_STATE_CPU_IDLE,      /* WFI - 1-2 cycle wake */
    SYS_POWER_STATE_DEEP_SLEEP,    /* System ON idle - ~10us wake, RAM retained */
    SYS_POWER_STATE_SYSTEM_OFF,    /* System OFF - ~1ms wake, cold boot */
};

The PM policy’s job is to pick the deepest state that satisfies:

1. Residency requirement: Predicted idle time > (target state wake latency + entry latency)
2. Device constraints: No device has vetoed the transition via runtime PM
3. Wake source availability: At least one enabled wake source can exit the state

Device Runtime PM: Per-Device Power Control

Device Runtime PM operates independently of system sleep. Each device driver implements pm_device_action_cb to handle state transitions:

/* Driver pm_action callback */
static int my_device_pm_action(const struct device *dev,
                               enum pm_device_action action)
{
    switch (action) {
    case PM_DEVICE_ACTION_RESUME:
        /* Restore registers, re-enable clocks, clear wake flags */
        my_device_restore_context(dev);
        return 0;
    case PM_DEVICE_ACTION_SUSPEND:
        /* Save context, gate clocks, configure wake sources */
        my_device_save_context(dev);
        return 0;
    case PM_DEVICE_ACTION_TURN_OFF:
        /* Power down completely, lose context */
        my_device_power_off(dev);
        return 0;
    case PM_DEVICE_ACTION_TURN_ON:
        /* Full reinitialization from reset state */
        return my_device_init(dev);
    default:
        return -ENOTSUP;
    }
}

Devices advertise supported states via pm_device_init():

PM_DEVICE_DT_DEFINE(DT_NODELABEL(my_spi), my_device_pm_action);

The runtime PM framework tracks device usage with a reference count. Call pm_device_runtime_get(dev) before using a device (increments count, ensures ACTIVE), and pm_device_runtime_put(dev) after (decrements, may auto-suspend).

The PM Policy: Orchestrating System Sleep

The PM policy is the brain. Zephyr ships with a default policy (pm_policy_default) but you can replace it. The policy implements:

/* pm_policy.h - simplified */
struct pm_policy {
    int (*init)(void);
    enum pm_state (*next_state)(uint32_t idle_ticks);
    void (*post_sleep)(enum pm_state state, uint32_t sleep_ticks);
};

A custom policy for an application with periodic sensor reads might look like:

#include <zephyr/pm/pm.h>
#include <zephyr/pm/policy.h>
#include <zephyr/kernel.h>

#define MIN_DEEP_SLEEP_TICKS  K_MSEC(10)  /* 10ms minimum residency */

static enum pm_state my_policy_next_state(uint32_t idle_ticks)
{
    /* Check if any device vetoes deep sleep */
    if (pm_device_any_busy()) {
        return SYS_POWER_STATE_CPU_IDLE;
    }

    /* Check wake sources - need at least one */
    if (!pm_wake_source_any_enabled()) {
        return SYS_POWER_STATE_CPU_IDLE;
    }

    /* Residency check */
    if (idle_ticks >= MIN_DEEP_SLEEP_TICKS) {
        return SYS_POWER_STATE_DEEP_SLEEP;
    }

    return SYS_POWER_STATE_CPU_IDLE;
}

static int my_policy_init(void)
{
    /* Register wake sources, configure policy-specific HW */
    return 0;
}

static struct pm_policy my_policy = {
    .init = my_policy_init,
    .next_state = my_policy_next_state,
    .post_sleep = NULL,
};

SYS_INIT(pm_policy_register, POST_KERNEL, CONFIG_KERNEL_INIT_PRIORITY_DEFAULT);

Register with pm_policy_register(&my_policy) — only one policy can be active.

Wake Sources and Latency

Wake sources are hardware interrupts that can exit a sleep state. Each SoC defines which peripherals can wake from which states. The PM subsystem tracks enabled wake sources:

/* Enable RTC alarm as wake source for deep sleep */
pm_wake_source_enable(PM_WAKE_SOURCE_RTC_ALARM);

/* Enable GPIO interrupt as wake source */
pm_wake_source_enable(PM_WAKE_SOURCE_GPIO);

/* Check if any wake source is enabled */
if (pm_wake_source_any_enabled()) {
    /* Safe to enter deep sleep */
}

Wake latency is critical. The policy must account for:

• Entry latency: Cycles to gate clocks, save context, enter sleep
• Exit latency: Cycles to restore clocks, context, resume execution
• Total residency = entry + exit + minimum time in state

For nRF52840 deep sleep: entry ~50us, exit ~10us. Minimum residency ~100us means you need >100us predicted idle to break even.

Device Veto: Preventing Unsafe Sleep

Devices can block system sleep via the runtime PM veto mechanism. When a device has pending DMA, ongoing flash write, or unprocessed interrupts, it calls:

/* In driver ISR or async completion */
pm_device_busy_set(dev);   /* Veto system sleep */

/* Later, when safe */
pm_device_busy_clear(dev); /* Allow sleep */

The policy checks pm_device_any_busy() before allowing deep sleep. This is why your SPI driver must call pm_device_busy_set() before starting a DMA transfer and pm_device_busy_clear() in the completion callback.

Practical Example: BLE Sensor Node

A typical BLE sensor node on nRF52840:

• Advertises every 1s (connection interval)
• Reads sensor via I2C every 10s
• Sleeps between events

/* Main loop */
void main(void)
{
    /* Initialize BLE, sensors, PM policy */
    ble_init();
    sensor_init();

    while (1) {
        /* Process BLE events - keeps CPU active during connection */
        ble_process_events();

        /* Read sensor periodically */
        if (k_uptime_get() - last_read > 10000) {
            sensor_read();
            last_read = k_uptime_get();
        }

        /* Idle - PM subsystem takes over */
        k_msleep(100);  /* Or k_cpu_idle() in a dedicated idle thread */
    }
}

During advertising intervals, the BLE controller handles RF, CPU sleeps in WFI. Between advertisements, policy sees ~900ms idle — deep sleep engaged. I2C sensor read takes ~2ms — device runtime PM suspends I2C controller after each read.

Debugging PM Issues

Enable PM debug tracing:

/* prj.conf */
CONFIG_PM_DEBUG=y
CONFIG_PM_DEVICE_RUNTIME_DEBUG=y

Log output shows state transitions:

[00:00:01.123] PM: Policy selected DEEP_SLEEP (idle=950ms)
[00:00:01.124] PM: I2C_0: SUSPEND
[00:00:01.125] PM: SPI_1: SUSPEND
[00:00:01.125] PM: Entering DEEP_SLEEP
[00:00:02.123] PM: Wake source: RTC_ALARM
[00:00:02.124] PM: Exiting DEEP_SLEEP (slept=1000ms)
[00:00:02.125] PM: SPI_1: RESUME
[00:00:02.125] PM: I2C_0: RESUME

Common issues:

• Device never suspends: Missing pm_device_runtime_put() after use
• System never deep sleeps: Device veto not cleared, or no wake source enabled
• Wake latency too high: Policy residency threshold too aggressive

Summary

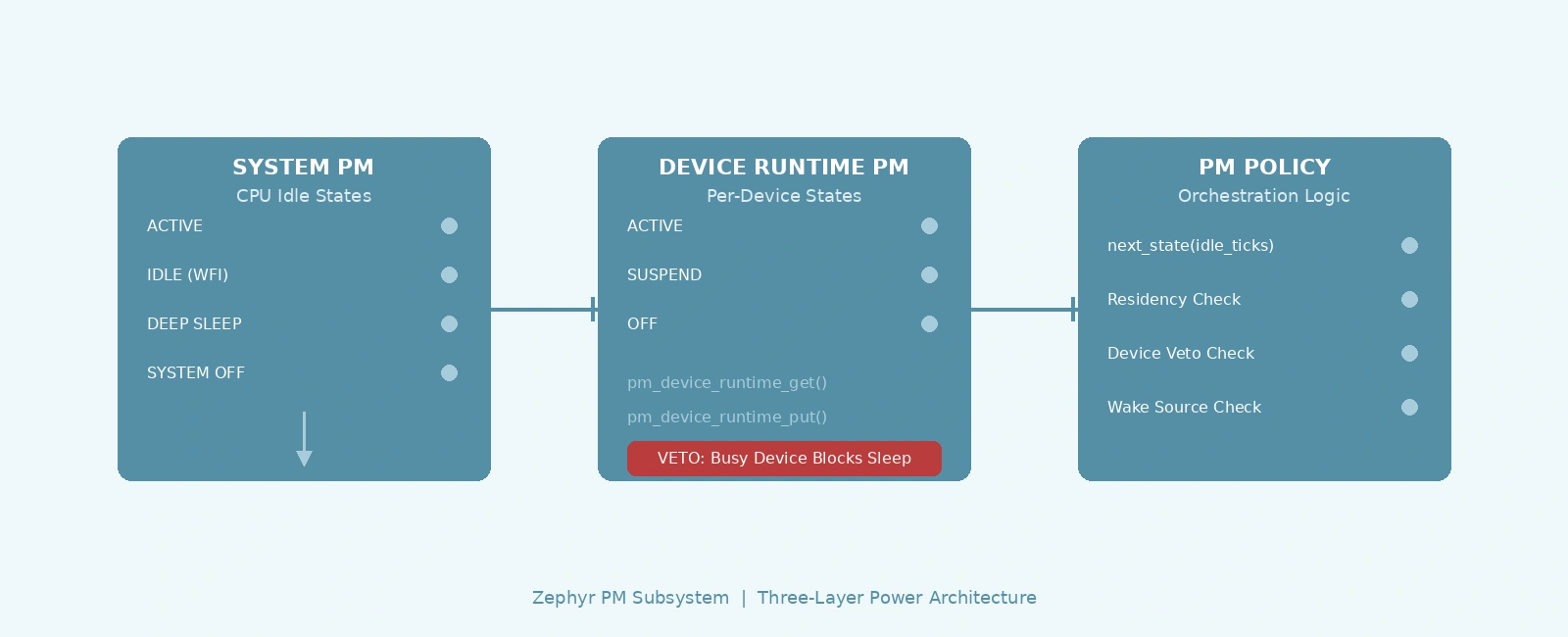

Zephyr’s PM subsystem is a three-layer stack: System PM (CPU states), Device Runtime PM (per-device states), and PM Policy (orchestration). The policy is the only component you typically customize — it decides when and how deep to sleep based on idle predictions, device constraints, and wake sources. Device drivers must implement proper pm_action callbacks and use runtime PM get/put pairs. For battery life, every microsecond counts — profile with CONFIG_PM_DEBUG and adjust residency thresholds to match your hardware’s wake latencies.
