Cortex-M FPU Context Switching: Lazy Stacking vs Eager State Save

FPU context switching on Cortex-M is a subtle but critical design decision that directly impacts worst-case interrupt latency and real-time determinism. The ARMv7-M and ARMv8-M architectures provide two mechanisms: lazy stacking (default) and eager state preservation. Choosing between them — or configuring them per-task — requires understanding the exact hardware behavior and your application’s FPU usage profile.

Lazy Stacking Mechanism

On exception entry, the Cortex-M processor hardware automatically stacks the general-purpose registers (R0-R3, R12, LR, PC, xPSR) onto the current stack. For the FPU registers (S0-S31, FPSCR), the behavior is controlled by FPCCR.LSPEN (Lazy State Preservation Enable, bit 30):

• LSPEN = 1 (default): The processor marks the FPU state as “dirty” in the CONTROL register (FPCA bit) but does not push S0-S31/FPSCR. The first FPU instruction executed after return triggers a deferred stacking exception, where the processor saves the full FPU state before executing the instruction.
• LSPEN = 0: The processor unconditionally pushes all 33 FPU registers on every exception entry (eager save).

The lazy path saves cycles when the interrupted code never touches FPU — common in interrupt handlers that only manipulate integer state.

+--------------------------------------------------------------+
|                  EXCEPTION ENTRY SEQUENCE                    |
+--------------------------------------------------------------+
|                                                              |
|  Hardware auto-saves:   R0-R3, R12, LR, PC, xPSR            |
|                         (8 registers, ~12 cycles)           |
|                                                              |
|  If LSPEN=1 (lazy):                                         |
|    - Sets CONTROL.FPCA = 1 (FPU context active)             |
|    - No FPU registers stacked                               |
|    - Cost: ~2 cycles                                        |
|                                                              |
|  If LSPEN=0 (eager):                                        |
|    - Pushes S0-S31, FPSCR (33 registers)                    |
|    - Cost: ~34-50 cycles                                    |
|                                                              |
+--------------------------------------------------------------+

The Deferred Stacking Trap

When the task resumes and executes its first FPU instruction (e.g., VADD.F32 S0, S1, S2), the processor detects CONTROL.FPCA=1 and takes a deferred stacking exception (a special exception type, not a standard interrupt). This exception:

1. Pushes S0-S31 and FPSCR onto the stack
2. Clears CONTROL.FPCA
3. Returns to the FPU instruction, which now executes normally

The latency of this deferred stacking is non-deterministic from the application’s perspective — it depends on when the first FPU instruction occurs. In a hard real-time system, this spike can cause deadline misses if it happens inside a high-priority control loop.

+--------------------------------------------------------------+

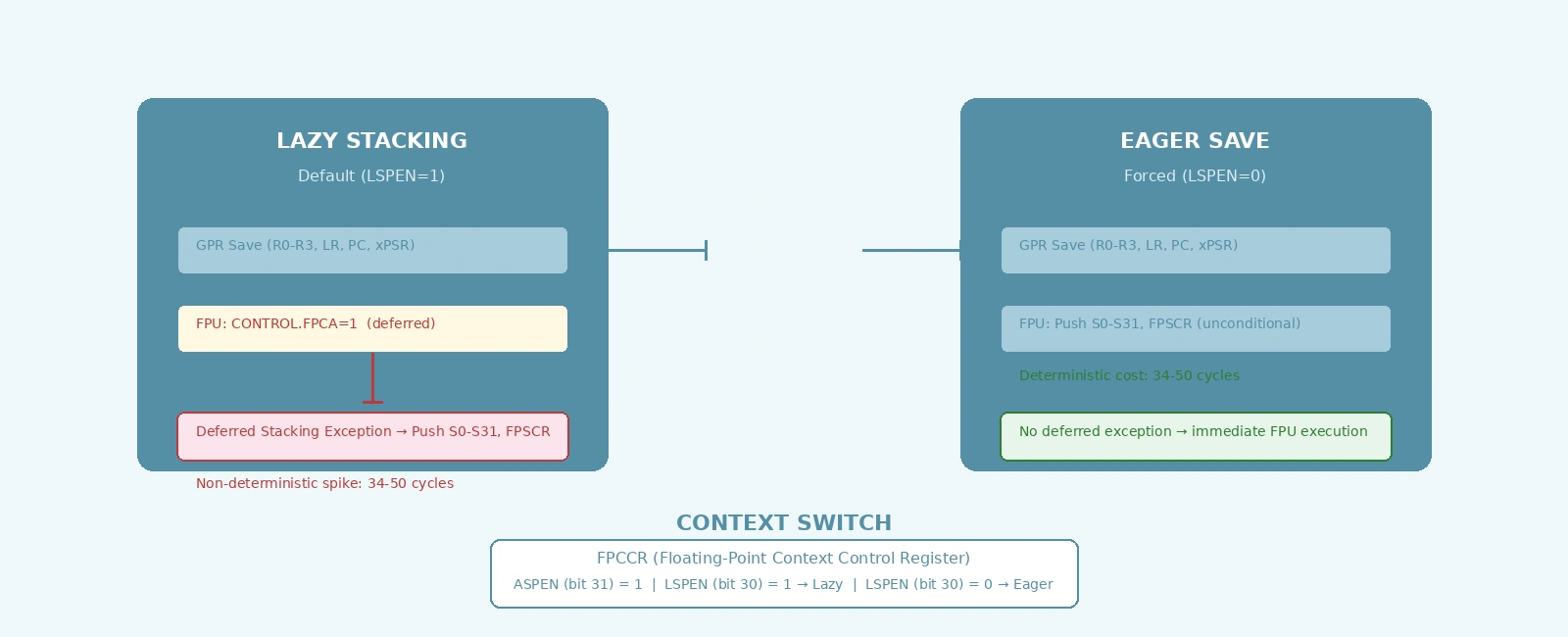

|              DEFERRED STACKING EXCEPTION FLOW                |
+--------------------------------------------------------------+
|                                                              |
|  Task Context          Kernel/ISR            Task Resumes    |
|  +------------+        +------------+       +------------+   |
|  | ...        |        | Exception  |       | VADD.F32   |   |
|  | VADD.F32   |  -->   | Entry      |  -->  | (traps)    |   |
|  | ...        |        | (lazy)     |       | Deferred   |   |
|  +------------+        +------------+       | Stacking   |   |
|                                               | Exception  |   |
|                                               | Push S0-31 |   |
|                                               | Clear FPCA |   |
|                                               | Retry VADD |   |
|                                               +------------+   |
|                                                              |
|  Latency spike: 34-50 cycles on Cortex-M4/M7                |
|  Unpredictable: depends on when first FPU insn executes     |
|                                                              |
+--------------------------------------------------------------+

Eager State Preservation

Setting FPCCR.LSPEN = 0 forces the processor to push all 33 FPU registers on every exception entry, regardless of whether the interrupted code uses FPU. The cost is paid upfront and deterministically:

• Exception entry: +34-50 cycles (vs ~2 for lazy)
• Exception return: +34-50 cycles for FPU register restore
• No deferred stacking exception — FPU instructions execute immediately on resume

Eager preservation makes sense when:

1. Most tasks use FPU heavily (DSP, motor control, sensor fusion) — the lazy trap fires on nearly every context switch anyway
2. Deterministic latency is required — safety-critical systems where WCET analysis must account for worst-case stacking
3. Interrupt frequency is high — the overhead of repeated deferred stacking traps exceeds the one-time eager cost

Per-Task Configuration in an RTOS

A well-designed RTOS exposes FPU policy per-task. The typical implementation:

// Task creation with FPU policy
typedef enum {
    FPU_POLICY_LAZY   = 0,  // Default: LSPEN=1
    FPU_POLICY_EAGER  = 1,  // Force eager: LSPEN=0
    FPU_POLICY_NONE   = 2   // Task never uses FPU (compiler flag)
} fpu_policy_e;

BaseType_t xTaskCreateWithFPU(TaskFunction_t pxTaskCode,
                              const char *pcName,
                              configSTACK_DEPTH_TYPE usStackDepth,
                              void *pvParameters,
                              UBaseType_t uxPriority,
                              TaskHandle_t *pxCreatedTask,
                              fpu_policy_e fpuPolicy);

// During task context switch (simplified)
void vTaskSwitchContext(void) {
    // Save outgoing task's FPU state if FPU was active
    if (pxCurrentTCB->fpuPolicy == FPU_POLICY_EAGER) {
        vFPU_SaveState(pxCurrentTCB->fpuContext);
    } else if (pxCurrentTCB->fpuPolicy == FPU_POLICY_LAZY) {
        // Lazy: FPCCR.LSPEN=1, hardware handles on first FPU use
        FPCCR |= (1 << 30);  // LSPEN = 1
    }

    // Configure incoming task
    if (pxNextTCB->fpuPolicy == FPU_POLICY_EAGER) {
        FPCCR &= ~(1 << 30);  // LSPEN = 0 (eager)
        vFPU_RestoreState(pxNextTCB->fpuContext);
    } else {
        FPCCR |= (1 << 30);   // LSPEN = 1 (lazy)
    }
}

The RTOS must also manage FPCCR.ASPEN (Automatic State Preservation Enable, bit 31) which controls whether the processor automatically preserves FPU state on nested exceptions. For most RTOS ports, ASPEN=1 is correct.

Quantitative Comparison

Rule of thumb: If >80% of context switches involve FPU usage, eager save wins. If FPU usage is rare or sporadic, lazy stacking saves significant cycles.

Practical Recommendations

1. Default to lazy stacking for general-purpose tasks — it costs nearly nothing when FPU is unused.
2. Enable eager save for tasks running control loops, DSP filters, or sensor fusion where FPU is used on every iteration.
3. Disable FPU entirely (FPU_POLICY_NONE) for tasks that provably never use floating-point — the compiler won’t emit FPU instructions, and the kernel skips all FPU context logic.
4. Measure, don’t guess — instrument your RTOS port to count lazy vs eager context switches and deferred stacking exceptions in your actual workload.

Summary

Cortex-M FPU context switching is not a one-size-fits-all setting. Lazy stacking is the safe default for mixed workloads, but eager preservation eliminates non-deterministic latency spikes for FPU-intensive real-time tasks. A capable RTOS should expose this as a per-task policy, allowing the firmware engineer to match the hardware behavior to the task’s computational profile. The key insight: the deferred stacking exception is a hardware-managed trap with variable timing — if your deadline analysis cannot tolerate that variance, force eager save.
