Debugging Hard Faults on ARM Cortex-M: A Systematic Approach

Hard faults on ARM Cortex-M are the embedded equivalent of a blue screen — the CPU has encountered a condition it cannot recover from, and your carefully crafted firmware has come to an abrupt halt. Unlike higher-level exceptions, a HardFault provides no automatic recovery path. The processor saves context, vectors to HardFault_Handler, and waits. What happens next determines whether you ship a fix or ship a brick.

This article presents a systematic, production-hardened approach to HardFault diagnosis on Cortex-M3/M4/M7. We cover register capture, stack frame decoding, fault status register interpretation, and post-mortem analysis techniques that work in flash-constrained, RTOS-hosted environments.

The Fault Escalation Hierarchy

Before diving into HardFault specifics, understand the escalation chain. Cortex-M implements a nested fault model:

MemManage Fault (CFSR.MMFSR)  --->  Disabled or priority too high?  --->  HardFault (HFSR.FORCED)
BusFault      (CFSR.BFSR)     --->  Disabled or priority too high?  --->  HardFault (HFSR.FORCED)
UsageFault    (CFSR.UFSR)     --->  Disabled or priority too high?  --->  HardFault (HFSR.FORCED)
                                           |
                                           v
                              HardFault Handler (fixed priority -1)
                                           |
                                           v
                              Lockup (if HardFault itself faults)

Key registers:

• CFSR (Configurable Fault Status Register) — 0xE000ED28: concatenation of MMFSR (byte 0), BFSR (byte 1), UFSR (bytes 2-3)
• HFSR (HardFault Status Register) — 0xE000ED2C: VECTTBL (bit 1), FORCED (bit 30), DEBUGEVT (bit 31)
• DFSR (Debug Fault Status Register) — 0xE000ED30: debug-related faults
• MMFAR/BFAR — fault address registers (valid only if MMARVALID/BFARVALID set)

Critical rule: CFSR bits are sticky. Read CFSR and HFSR before clearing them — writing 1 to CFSR bits clears them. If you clear CFSR first, you lose the root cause when HFSR.FORCED=1.

Minimal HardFault Handler: Capture First, Analyze Later

A production HardFault handler has one job: preserve context. No printf, no RTOS calls, no flash writes. Capture to a reserved RAM section, then reset.

// hardfault_handler.c
// Place in .noinit section so data survives soft reset
__attribute__((section(".noinit.hardfault"))) struct {
    uint32_t msp;
    uint32_t psp;
    uint32_t lr;           // EXC_RETURN value
    uint32_t cfsr;
    uint32_t hfsr;
    uint32_t dfsr;
    uint32_t mmfar;
    uint32_t bfar;
    uint32_t afsr;
    uint32_t abfsr;        // Cortex-M7 Auxiliary Bus Fault Status
    uint32_t stack_frame[8]; // R0-R3, R12, LR, PC, xPSR
    uint32_t magic;        // 0xDEADBEEF = valid capture
} hardfault_ctx;

/* WARNING: This simple handler assumes MSP is valid. If a stack overflow corrupted
 * MSP, calling a C function here will trigger a double fault. A production
 * handler should test LR bit 2 in assembly, extract the active SP, and switch
 * to a safe dedicated stack before branching to C code. */
void __attribute__((naked)) HardFault_Handler(void) {
    __asm volatile (
        "mrs r0, msp          \n"  // Main stack pointer
        "mrs r1, psp          \n"  // Process stack pointer
        "mov r2, lr           \n"  // Link register (EXC_RETURN)
        "b   hardfault_capture\n"
        ::: "r0", "r1", "r2", "memory"
    );
}

void hardfault_capture(uint32_t msp, uint32_t psp, uint32_t lr) {
    // Determine which stack was active (bit 2 of EXC_RETURN)
    uint32_t *sp = (lr & 0x4) ? (uint32_t *)psp : (uint32_t *)msp;

    hardfault_ctx.msp = msp;
    hardfault_ctx.psp = psp;
    hardfault_ctx.lr  = lr;
    hardfault_ctx.cfsr = SCB->CFSR;
    hardfault_ctx.hfsr = SCB->HFSR;
    hardfault_ctx.dfsr = SCB->DFSR;
    hardfault_ctx.mmfar = SCB->MMFAR;
    hardfault_ctx.bfar  = SCB->BFAR;
    hardfault_ctx.afsr  = SCB->AFSR;
#if defined(__CORTEX_M) && (__CORTEX_M == 7U)
    hardfault_ctx.abfsr = SCB->ABFSR;
#else
    hardfault_ctx.abfsr = 0;
#endif

    // Stack frame: R0-R3, R12, LR, PC, xPSR (8 words)
    for (int i = 0; i < 8; i++) {
        hardfault_ctx.stack_frame[i] = sp[i];
    }

    hardfault_ctx.magic = 0xDEADBEEF;

    // Disable interrupts, trigger watchdog reset
    __disable_irq();
    NVIC_SystemReset();

    // Should never reach here
    while (1) { __asm("wfi"); }
}

Linker script reservation:

/* Reserve 256 bytes in RAM for fault context, no initialization */
.noinit.hardfault (NOLOAD) :
{
    . = ALIGN(4);
    *(.noinit.hardfault)
    . = ALIGN(4);
} > RAM

Decoding the Stack Frame

The ARMv7-M exception entry pushes 8 registers (32 bytes) onto the active stack:

+------------------+  <-- SP after exception entry (MSP or PSP)
|      xPSR        |  sp[7]  -- EPSR T-bit (bit 24); 1 for Thumb state
+------------------+
|       PC         |  sp[6]  -- Return address (faulting instruction for precise faults)
+------------------+
|       LR         |  sp[5]  -- Saved Link Register (return address of interrupted function)
+------------------+
|       R12        |  sp[4]
+------------------+
|       R3         |  sp[3]
+------------------+
|       R2         |  sp[2]
+------------------+
|       R1         |  sp[1]
+------------------+
|       R0         |  sp[0]
+------------------+

Extract faulting PC:

uint32_t fault_pc = hardfault_ctx.stack_frame[6];  // PC from stack frame
// For precise faults, this is exactly the faulting instruction address.
// (Do not subtract bytes unless unwinding an interrupt or imprecise fault).

EXC_RETURN (LR) decoding:

Bit 2 (0x4) = 1 → PSP was active; 0 → MSP active. Bit 4 (0x10) = 0 → Extended frame (FPU state preserved); 1 → Standard frame.

CFSR Bitfield Reference (Quick Lookup)

MMFSR (CFSR[7:0]) - MemManage Fault Status
Bit 0: IACCVIOL  - Instruction access violation (MPU/Execute Never)
Bit 1: DACCVIOL  - Data access violation (MPU)
Bit 3: MUNSTKERR - Unstacking error (MemManage on exception return)
Bit 4: MSTKERR   - Stacking error (MemManage on exception entry)
Bit 5: MLSPERR   - Lazy FPU state preservation error
Bit 7: MMARVALID - MMFAR holds valid fault address

BFSR (CFSR[15:8]) - BusFault Status
Bit 0: IBUSERR   - Instruction bus error (prefetch abort)
Bit 1: PRECISERR - Precise data bus error (BFAR valid)
Bit 2: IMPRECISERR - Imprecise data bus error (write buffer)
Bit 3: UNSTKERR  - Unstacking bus error
Bit 4: STKERR    - Stacking bus error
Bit 5: BLSPERR   - Lazy FPU bus error
Bit 7: BFARVALID - BFAR holds valid fault address

UFSR (CFSR[31:16]) - UsageFault Status
Bit 0: UNDEFINSTR - Undefined instruction
Bit 1: INVSTATE   - Invalid EPSR state (T-bit=0, illegal IT)
Bit 2: INVPC      - Invalid PC load (EXC_RETURN integrity)
Bit 3: NOCP       - No coprocessor (FPU disabled, CP10/11 access)
Bit 8: UNALIGNED  - Unaligned access (when CCR.UNALIGN_TRP=1)
Bit 9: DIVBYZERO  - Divide by zero (when CCR.DIV_0_TRP=1)

HFSR bits:

• Bit 1 (VECTTBL): Vector table read fault (hardfault on exception entry)
• Bit 30 (FORCED): Configurable fault escalated to HardFault
• Bit 31 (DEBUGEVT): Debug event (breakpoint, watchpoint) with debug disabled

Fault Escalation Flow

+==============================================================+
|             CORTEX-M FAULT ESCALATION HIERARCHY              |
+==============================================================+
|                                                              |
|MemManage Fault     BusFault    UsageFault                    |
|(MPU violation)     (Bus error) (Undefined instr,             |
|CFSR[7:0]           CFSR[15:8]  div0, unaligned)              |
|        |                   |                |                |
|        |Handler enabled Y/N|                |                |
|        +---- NO ---------- +                |                |
|        |                   |                |                |
|        v                   v                v                |
|   +-------------------+--------+--------------------+        |
|   |HFSR.FORCED = 1    |escalated|to HardFault       |        |
|   +-------------------------------------------------+        |
|                            |                                 |
|                            v                                 |
|                  +---------------------+                     |
|                  |Reset (Priority -3)  |                     |
|                  |NMI   (Priority -2)  |                     |
|                  |HardFault Handler    |                     |
|                  |(Priority -1,        |                     |
|                  |cannot be masked)    |                     |
|                  +----------+-----------+                    |
|                             |                                |
|                             v                                |
|                  +---------------------+                     |
|                  |Post-Mortem          |                     |
|                  |Analysis (JTAG SWD   |                     |
|                  |SWD, .noinit dump)   |                     |
|                  +---------------------+                     |
|                                                              |
+==============================================================+

Common Fault Patterns & Root Causes

1. IBUSERR / PRECISERR — Flash/Peripheral Access Violation

Symptoms: CFSR = 0x00010001 (IBUSERR) or 0x00000200 (PRECISERR + BFARVALID) Causes:

• Executing from invalid address (branch to NULL, corrupted function pointer)
• Reading/writing unmapped peripheral register (clock not enabled)
• Flash wait states misconfigured for clock speed
• External memory (FSMC/QSPI) timing violation

Debug: Check BFAR/PC correlation. If PC points to 0x00000000 region → NULL function pointer. If PC in peripheral space → clock gating.

2. DACCVIOL / IACCVIOL — MPU Region Violation

Symptoms: CFSR = 0x00000002 (DACCVIOL) or 0x00000001 (IACCVIOL) Causes:

• Stack overflow into guarded region
• Task accessing memory outside its MPU region
• Executing from non-executable region (stack, data)

Fix: Verify MPU region configuration. Enable stack guard region (Region 7, size 32 bytes, no access) at stack limit.

3. INVSTATE — EPSR.T Bit Cleared

Symptoms: CFSR = 0x00020000 Causes:

• Branch to address with LSB=0 (interworking error)
• Corrupted LR on exception return
• Loading PC from stack with T-bit=0

Debug: Check PC alignment. All Thumb instructions require PC[0]=1. If PC is even, the T-bit was cleared on load.

4. NOCP — FPU Access with CP10/11 Disabled

Symptoms: CFSR = 0x00080000 Causes:

• Floating-point code compiled (-mfloat-abi=hard) but CPACR not configured
• Context switch saving FPU registers without enabling FPU

Fix: In SystemInit() or before first FPU use:

#if (__FPU_PRESENT == 1)
SCB->CPACR |= (0xF << 20);  // Enable CP10/CP11 full access
#endif

5. DIVBYZERO / UNALIGNED — Trappable UsageFaults

Symptoms: CFSR = 0x02000000 (DIVBYZERO) or 0x01000000 (UNALIGNED) Causes:

• Integer division by zero (enabled via CCR.DIV_0_TRP)
• Unaligned LDRD/STRD or LDR/STR to non-aligned address (enabled via CCR.UNALIGN_TRP)

Fix: Enable traps in debug builds only. In production, handle gracefully or let HardFault catch.

Post-Mortem Analysis Workflow

1. Dump .noinit via SWD/JTAG

# OpenOCD: dump 256 bytes from known symbol address
openocd -c "init; reset halt; mdb <hardfault_ctx_addr> 256 hardfault_dump.bin; shutdown"

2. Parse with Python

# parse_hardfault.py
import struct

with open("hardfault_dump.bin", "rb") as f:
    data = f.read()

# Verify magic
magic = struct.unpack("<I", data[72:76])[0]
assert magic == 0xDEADBEEF, "Invalid magic"

msp, psp, lr = struct.unpack("<III", data[0:12])
cfsr, hfsr, dfsr = struct.unpack("<III", data[12:24])
mmfar, bfar, afsr, abfsr = struct.unpack("<IIII", data[24:40])
stack_frame = struct.unpack("<8I", data[40:72])

print(f"LR (EXC_RETURN): 0x{lr:08X} -> {'PSP' if lr & 0x4 else 'MSP'} active")
print(f"CFSR: 0x{cfsr:08X}")
print(f"HFSR: 0x{hfsr:08X}")
if abfsr != 0:
    print(f"ABFSR: 0x{abfsr:08X} (M7 Cache/TCM Fault)")
print(f"Fault PC: 0x{stack_frame[6]:08X}")
print(f"Fault LR: 0x{stack_frame[5]:08X}")

# Decode CFSR
cfsr_bits = {
    0: "IACCVIOL", 1: "DACCVIOL", 3: "MUNSTKERR", 4: "MSTKERR", 5: "MLSPERR",
    7: "MMARVALID", 8: "IBUSERR", 9: "PRECISERR", 10: "IMPRECISERR",
    11: "UNSTKERR", 12: "STKERR", 13: "BLSPERR", 15: "BFARVALID",
    16: "UNDEFINSTR", 17: "INVSTATE", 18: "INVPC", 19: "NOCP",
    24: "UNALIGNED", 25: "DIVBYZERO"
}
for bit, name in cfsr_bits.items():
    if cfsr & (1 << bit):
        print(f"  CFSR.{name} = 1")

3. Correlate with Map File

# Find function containing fault PC
arm-none-eabi-addr2line -e firmware.elf -f 0x0800XXXX
# Or grep map file
grep -E " 0x0800[0-9A-F]{4} " firmware.map

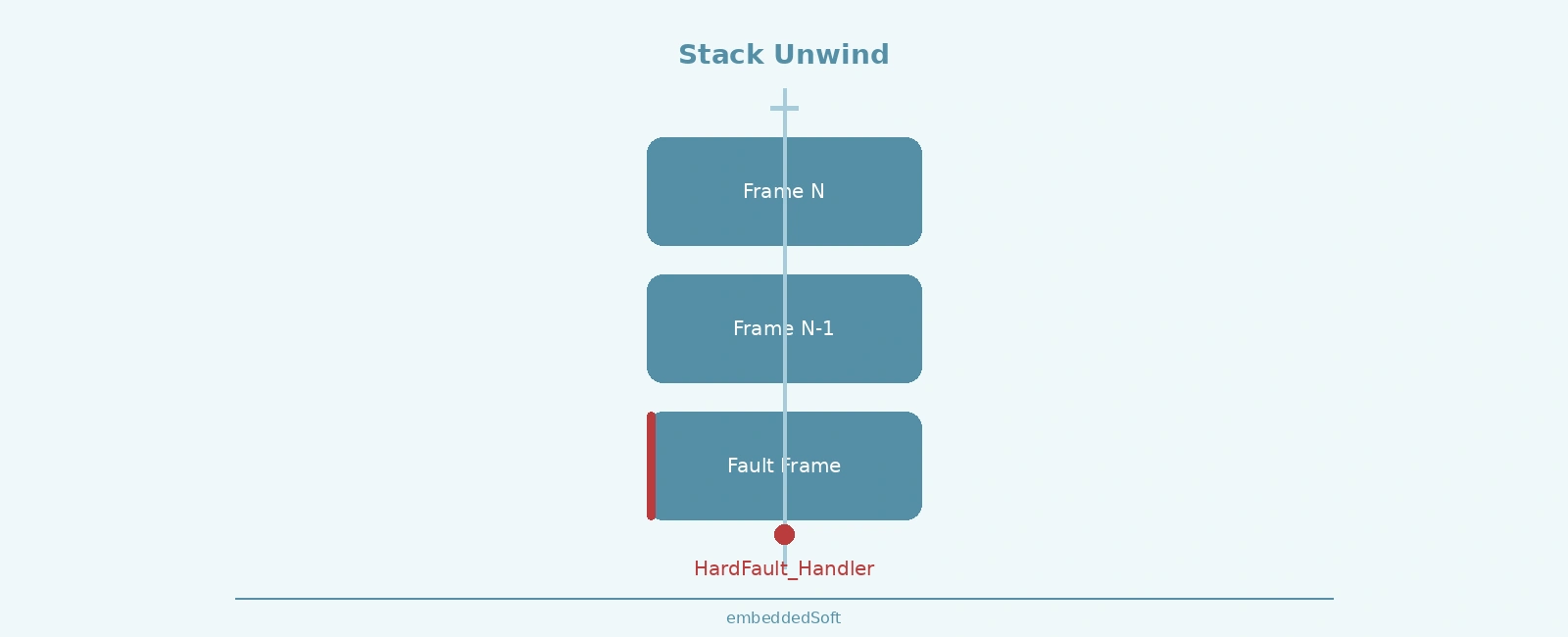

Advanced: Stack Unwinding for RTOS Tasks

When using FreeRTOS/Zephyr, the faulting task may use PSP. The HardFault handler captures PSP, but the task’s stack frame is buried under kernel context. To unwind:

// In hardfault_capture(), after saving basic context:
if (lr & 0x4) {  // PSP was active
    // PSP points to task stack frame (R0-R3, R12, LR, PC, xPSR)
    // But task may have been preempted  --  need to walk stack frames
    // using frame pointers (R7) if compiled with -fno-omit-frame-pointer

    // Note: R7 is NOT pushed by hardware on exception entry. It must be captured
    // in the assembly handler directly from the CPU register, or read from
    // the task's TCB if it was preempted. Assuming we captured it into `cpu_r7`:
    uint32_t *fp = (uint32_t *)cpu_r7;  // R7 = frame pointer in Thumb
    uint32_t fault_stack[16] = {0};
    int depth = 0;
    while (fp && depth < 16 && (uint32_t)fp > 0x20000000 && (uint32_t)fp < 0x20040000) {
        uint32_t saved_lr = fp[1];   // LR at fp+4
        uint32_t saved_fp = fp[0];   // Previous FP at fp+0
        fault_stack[depth++] = saved_lr;
        fp = (uint32_t *)saved_fp;
    }
}

Compiler flags for reliable unwinding:

-fno-omit-frame-pointer

Prevention Checklist (Code Review)

Summary

HardFaults are not mysteries — they are precise architectural signals. The difference between a 2-hour debug session and a 2-day one is a disciplined HardFault handler that captures CFSR, HFSR, PC, LR, and stack frame to non-volatile RAM before reset. Combine this with MPU stack guards, FPU enable checks, and post-mortem tooling, and the “random crash” becomes a traceable bug with a clear fix.

Key takeaways:

1. Capture first, analyze later — minimal handler, .noinit RAM, watchdog reset
2. Read CFSR and HFSR before clearing — clearing CFSR loses root cause when FORCED=1
3. Decode EXC_RETURN — tells you MSP vs PSP, FPU state, return mode
4. Correlate PC with map file — addr2line or map grep finds the line
5. Enable traps in debug — DIV_0_TRP, UNALIGN_TRP catch bugs early

Related Reading

• ARM Cortex-M NVIC Interrupt Latency Optimization
• Fixing I2C Clock Stretching Timeouts on STM32
• FreeRTOS Task Notification Latency vs Queue Performance
• Stack Overflow Detection and Monitoring in RTOS

References

1. ARM, Cortex-M3/M4/M7 Technical Reference Manuals, ARM DDI 0403/0439/0489
2. ARM, Cortex-M Programming Guide to Memory Barrier Instructions, ARM DAI 0321A
3. Joseph Yiu, The Definitive Guide to ARM Cortex-M3 and Cortex-M4 Processors, 3rd Ed., Newnes, 2014, ISBN 978-0124080829
4. FreeRTOS, FreeRTOS Hard Fault Handler Guide, https://www.freertos.org/Documentation/02-Kernel/03-Supported-devices/04-Demos/Others/Debugging-Hard-Faults-On-Cortex-M-Microcontrollers
5. Interrupt, How to debug a HardFault on an ARM Cortex-M MCU, https://interrupt.memfault.com/blog/cortex-m-hardfault-debug
6. SEGGER, AN00016: Analyzing HardFaults on Cortex-M, https://www.segger.com/downloads/application-notes/AN00016
