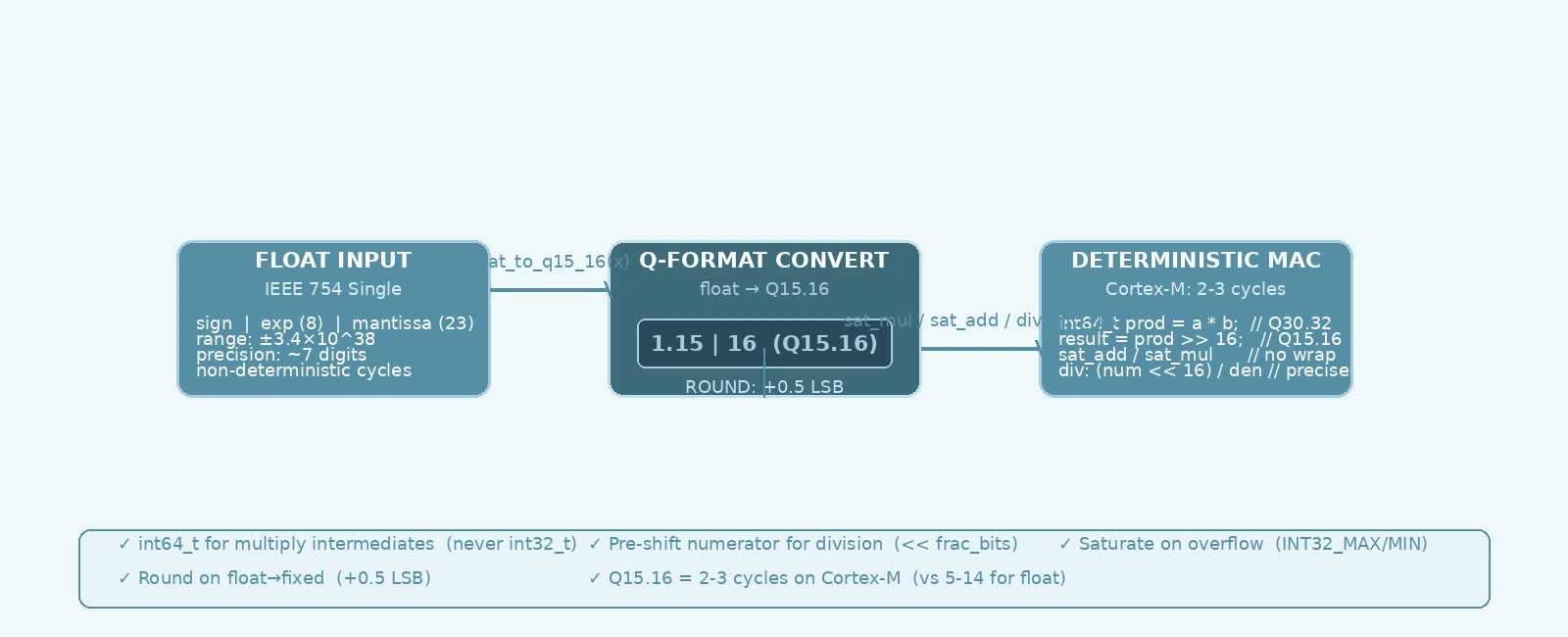

Fixed-Point Arithmetic in Embedded C: A Practical Guide

Q-Format Representation

Converting Float to Fixed-Point

Fixed-Point Multiplication

Fixed-Point Division

Overflow and Saturation Arithmetic

Practical Example: PID Controller in Q15.16

Q-Format Selection Checklist

Common Pitfalls

Summary

Q-Format Representation

A Qm.n format uses m integer bits (including sign) and n fractional bits in a signed 32-bit word:

Q15.16:  1 sign + 15 integer + 16 fractional  →  range: ±32767.99998,  res: 15.3 ppm
Q7.24:   1 sign + 7  integer + 24 fractional  →  range: ±127.9999999, res: 0.06 ppm
Q31.0:   1 sign + 31 integer + 0  fractional  →  range: ±2,147,483,647, res: 1.0

The binary point is implied by the format — it does not exist in hardware.

+-----------------------------------------------------------------------+
|                    Q15.16 Bit Layout (32-bit)                         |
+=======================================================================+
|                                                                       |
|  31                    16 15                                        0 |
|  +---------------------+---------------------+                       |
|  |  Integer (15 bits)  |  Fractional (16)    |                       |
|  |  (including sign)   |  (implicit point)   |                       |
|  +---------------------+---------------------+                       |
|           ↑                                       ↑                  |
|        bit 31                                    bit 0               |
|        (sign)                                    (LSB = 2^-16)      |
|                                                                       |
|  Value = (int32_t raw) / 65536.0                                      |
|                                                                       |
+-----------------------------------------------------------------------+

Converting Float to Fixed-Point

// Float → Q15.16 conversion with rounding
static inline int32_t float_to_q15_16(float f) {
    return (int32_t)(f * 65536.0f + (f >= 0 ? 0.5f : -0.5f));
}

// Q15.16 → Float
static inline float q15_16_to_float(int32_t q) {
    return (float)q / 65536.0f;
}

Critical: The + 0.5f rounding avoids systematic truncation bias. For negative values, subtract 0.5.

Fixed-Point Multiplication

// Q15.16 × Q15.16 → Q15.16 (with 64-bit intermediate)
static inline int32_t mul_q15_16(int32_t a, int32_t b) {
    int64_t prod = (int64_t)a * (int64_t)b;  // Q30.32 intermediate
    return (int32_t)(prod >> 16);            // Back to Q15.16
}

+-----------------------------------------------------------------------+
|                    Q15.16 Multiplication Flow                         |
+=======================================================================+
|                                                                       |
|   Input A (Q15.16)     Input B (Q15.16)                              |
|        │                      │                                       |
|        ▼                      ▼                                       |
|   +----------+         +----------+                                  |
|   │ int32_t  │         │ int32_t  │                                  |
|   +----------+         +----------+                                  |
|        │                      │                                       |
|        └──────────┬──────────┘                                       |
|                   ▼                                                  |
|         +------------------+                                         |
|         │ int64_t prod     │  // 64-bit = 32 + 32 bits              |
|         │ = a * b          │  // Q30.32 format                      |
|         +------------------+                                         |
|                   │                                                  |
|                   ▼                                                  |
|         +------------------+                                         |
|         │ prod >> 16       │  // Shift right 16 = divide by 65536   |
|         +------------------+                                         |
|                   │                                                  |
|                   ▼                                                  |
|         Output (Q15.16)                                              |
|                                                                       |
|  ⚠ WITHOUT int64_t: prod overflows at 32 bits → WRONG RESULT         |
|                                                                       |
+-----------------------------------------------------------------------+

Fixed-Point Division

// Q15.16 ÷ Q15.16 → Q15.16
static inline int32_t div_q15_16(int32_t num, int32_t den) {
    if (den == 0) return INT32_MAX;  // Saturate on div-by-zero

    // Pre-shift numerator to preserve fractional bits
    int64_t num_shifted = (int64_t)num << 16;  // Q31.32

    // Round: add half denominator before division
    int64_t result = (num_shifted + (den >= 0 ? (den >> 1) : -(den >> 1))) / den;

    return (int32_t)result;  // Back to Q15.16
}

Key insight: Without the << 16 pre-shift, integer division discards all fractional bits.

Overflow and Saturation Arithmetic

// Saturated addition for Q15.16
static inline int32_t sat_add_q15_16(int32_t a, int32_t b) {
    int64_t sum = (int64_t)a + (int64_t)b;
    if (sum > INT32_MAX)  return INT32_MAX;
    if (sum < INT32_MIN)  return INT32_MIN;
    return (int32_t)sum;
}

// Saturated multiplication
static inline int32_t sat_mul_q15_16(int32_t a, int32_t b) {
    int64_t prod = (int64_t)a * (int64_t)b;
    int64_t shifted = prod >> 16;
    if (shifted > INT32_MAX)  return INT32_MAX;
    if (shifted < INT32_MIN)  return INT32_MIN;
    return (int32_t)shifted;
}

+-----------------------------------------------------------------------+
|                    Overflow Scenarios in Q15.16                       |
+=======================================================================+
|                                                                       |
|  ADDITION:                                                            |
|  ─────────                                                            |
|  0x40000000  (+32768.0)  +  0x40000000  (+32768.0)                   |
|  = 0x80000000  (-32768.0)  ← WRONG: wrapped to negative!             |
|                                                                       |
|  MULTIPLICATION:                                                      |
|  ───────────────                                                      |
|  0x7FFF0000  (~32767.0)  ×  0x00020000  (2.0)                        |
|  = 0xFFFE00000000 (Q30.32)  >> 16 = 0xFFFE0000  (-2.0)  ← WRONG!     |
|                                                                       |
|  FIX: Use int64_t intermediate + saturation                          |
|                                                                       |
+-----------------------------------------------------------------------+

Practical Example: PID Controller in Q15.16

typedef struct {
    int32_t kp;      // Q15.16
    int32_t ki;      // Q15.16
    int32_t kd;      // Q15.16
    int32_t integral; // Q15.16 (accumulator)
    int32_t prev_error; // Q15.16
} pid_q15_16_t;

int32_t pid_update(pid_q15_16_t *pid, int32_t setpoint, int32_t measured, uint32_t dt_ms) {
    // Error = setpoint - measured (all Q15.16)
    int32_t error = sat_sub_q15_16(setpoint, measured);

    // Proportional: Kp * error
    int32_t p_term = sat_mul_q15_16(pid->kp, error);

    // Integral: Ki * integral (integral accumulates error * dt)
    int32_t error_dt = mul_q15_16(error, (int32_t)(dt_ms * 65536 / 1000));  // dt in Q15.16
    pid->integral = sat_add_q15_16(pid->integral, error_dt);
    int32_t i_term = sat_mul_q15_16(pid->ki, pid->integral);

    // Derivative: Kd * (error - prev_error) / dt
    int32_t d_error = sat_sub_q15_16(error, pid->prev_error);
    int32_t d_term = div_q15_16(sat_mul_q15_16(pid->kd, d_error),
                                (int32_t)(dt_ms * 65536 / 1000));
    pid->prev_error = error;

    // Sum all terms with saturation
    int32_t output = sat_add_q15_16(sat_add_q15_16(p_term, i_term), d_term);

    return output;  // Q15.16 output
}

Q-Format Selection Checklist

Application	Recommended Q-Format	Rationale
Motor control (current/position)	Q15.16	±32767 range covers most sensor scales; 15 ppm resolution
Audio processing	Q1.30 or Q15.16	High dynamic range; Q1.30 for [-1,1) normalized signals
Temperature sensing	Q7.24	Small range (±127°C), need micro-degree resolution
IMU sensor fusion	Q15.16 or Q3.28	Balance range (accel: ±16g) and precision
PID coefficients	Q15.16	Gains typically 0.01–100; fractional precision critical
FFT/DSP algorithms	Q1.30 or Q3.28	Normalized signals, maximize SNR

Common Pitfalls

Pitfall	Symptom	Fix
`int32_t prod = a * b;`	Overflow at 32 bits	Use `int64_t prod = (int64_t)a * b;`
`result = num / den;`	Loses all fractional bits	Pre-shift: `(int64_t)num << frac_bits`
No rounding on conversion	Systematic bias	Add `0.5 LSB` before truncation
Mixing Q-formats	Silent precision loss	Explicit conversion functions per format
Division by zero	HardFault / undefined	Check denominator, saturate to MAX/MIN

Summary

Fixed-point arithmetic trades dynamic range for deterministic execution and zero hardware dependencies. The discipline is simple:

Pick one Q-format per signal path — document it in the variable name (speed_q15_16)
Always use int64_t for multiply intermediates — shift back after
Pre-shift numerators for division — preserve fractional bits
Saturate, don’t wrap — overflow in control loops causes instability
Verify with error analysis — compute worst-case error propagation

On Cortex-M, a fixed-point multiply-accumulate (MAC) in Q15.16 compiles to 2–3 cycles (SMULL + shift) versus 5–14 cycles for soft-float or 3–5 for FPU single-precision. For ISR contexts and hard real-time loops, that determinism is the difference between meeting deadline and missing it.

References

ARM, “CMSIS-DSP Library User Guide”, ARM DUI 0603, Chapter “Fixed-Point Arithmetic”
Texas Instruments, “Fixed-Point Arithmetic: An Introduction”, SPRA684, 2004
Randy Yates, “Fixed-Point Arithmetic: An Introduction”, Digital Signal Labs, 2013
Joe Lemieux, “Fixed-Point Math in C”, Embedded Systems Programming, 2003
Jack Ganssle, “Fixed-Point vs Floating-Point: The Embedded Debate”, Embedded.com, 2017
ISO/IEC 9899:2018 (C18), Section 6.2.5 “Types” — Integer representation and arithmetic
