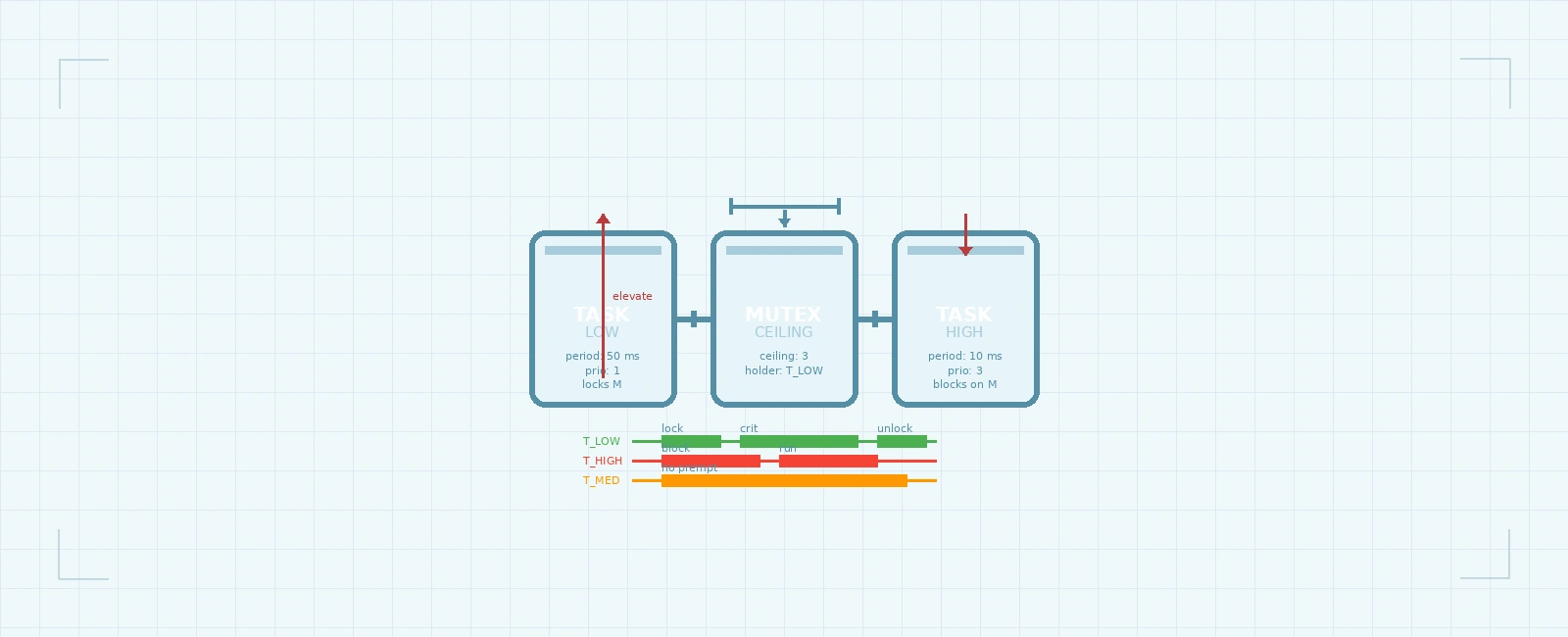

Rate Monotonic Priority Ceiling Protocol Fixes Priority Inversion

Rate Monotonic Scheduling (RMS) assigns static priorities based on period — shorter period, higher priority. It’s optimal among fixed-priority schemes, but it has a structural weakness: priority inversion. A high-priority task blocks on a mutex held by a low-priority task, and a medium-priority task preempts the low-priority holder, indefinitely delaying the high-priority task.

The Priority Ceiling Protocol (PCP) eliminates this by assigning each mutex a ceiling priority equal to the highest priority of any task that may lock it. When a task locks the mutex, its effective priority is immediately elevated to the ceiling. No medium-priority task can preempt it. The high-priority task waits at most one critical section — the blocking is bounded and non-transitive.

This article shows how PCP works, how to implement it in FreeRTOS, and how to verify the blocking bound in response-time analysis.

The Priority Inversion Problem

Consider three tasks under RMS:

+--------+--------+-----------+--------------------------+
| Task   | Period | Priority  | Critical Section (mutex) |
+--------+--------+-----------+--------------------------+
| T_High | 10 ms  | 3 (High)  | Locks M for 2 ms         |
| T_Med  | 20 ms  | 2 (Med)   | No mutex                 |
| T_Low  | 50 ms  | 1 (Low)   | Locks M for 5 ms         |
+--------+--------+-----------+--------------------------+

Timeline without PCP:

Time →
T_Low:    [===== Lock M (5ms) =====]
T_High:              [BLOCKED on M]
T_Med:               [======== PREEMPTS T_Low ========]
T_High:                                   [STILL BLOCKED]
T_Low:                                                       [UNLOCK M]
T_High:                                                                            [RUNS]

T_High suffers unbounded blocking — it waits for T_Low and T_Med. The medium-priority task indirectly blocks the high-priority task.

Priority Ceiling Protocol Mechanics

Each mutex M gets a ceiling priority C(M):

C(M) = max{ priority(T) | T may lock M }

In the example above: C(M) = priority(T_High) = 3.

When T_Low locks M, its effective priority becomes 3. T_Med (priority 2) cannot preempt. T_Low runs to completion of its critical section at priority 3, then unlocks and drops back to priority 1.

Time →
T_Low:    [===== Lock M (5ms) =====]   ← runs at priority 3 (ceiling)
T_High:              [BLOCKED on M]
T_Med:               [CANNOT PREEMPT — T_Low at ceiling 3]
T_High:                                   [RUNS immediately after unlock]

Key properties:

• Bounded blocking: Each task blocks at most once per period, for the duration of the longest critical section of any lower-priority task sharing a resource.
• No chained blocking: A task cannot be blocked by a chain of lower-priority tasks.
• Deadlock-free: The ceiling protocol prevents circular wait conditions.

Implementing PCP in FreeRTOS

FreeRTOS does not implement PCP natively. It provides Priority Inheritance (PIP) via configUSE_MUTEXES + xSemaphoreCreateMutex(). For PCP, you must implement the ceiling logic manually or use a wrapper.

Ceiling Mutex Wrapper

#include "FreeRTOS.h"
#include "semphr.h"
#include "task.h"

typedef struct {
    SemaphoreHandle_t mutex;
    UBaseType_t       ceiling_priority;  // PCP ceiling
    UBaseType_t       holder_priority;   // Original priority of holder
    TaskHandle_t      holder;            // Current holder
} CeilingMutex_t;

/* Create a ceiling mutex with explicit ceiling priority */
CeilingMutex_t *CeilingMutex_Create(UBaseType_t ceiling_prio) {
    CeilingMutex_t *cm = pvPortMalloc(sizeof(CeilingMutex_t));
    if (!cm) return NULL;

    cm->mutex = xSemaphoreCreateMutex();
    cm->ceiling_priority = ceiling_prio;
    cm->holder = NULL;
    cm->holder_priority = 0;

    return cm;
}

/* Lock with priority ceiling elevation */
BaseType_t CeilingMutex_Lock(CeilingMutex_t *cm, TickType_t timeout) {
    if (xSemaphoreTake(cm->mutex, timeout) != pdTRUE) {
        return pdFALSE;
    }

    /* Elevate priority to ceiling */
    cm->holder = xTaskGetCurrentTaskHandle();
    cm->holder_priority = uxTaskPriorityGet(cm->holder);
    vTaskPrioritySet(cm->holder, cm->ceiling_priority);

    return pdTRUE;
}

/* Unlock and restore original priority */
void CeilingMutex_Unlock(CeilingMutex_t *cm) {
    if (cm->holder == xTaskGetCurrentTaskHandle()) {
        vTaskPrioritySet(cm->holder, cm->holder_priority);
        cm->holder = NULL;
        cm->holder_priority = 0;
    }
    xSemaphoreGive(cm->mutex);
}

/* Delete and free */
void CeilingMutex_Delete(CeilingMutex_t *cm) {
    vSemaphoreDelete(cm->mutex);
    vPortFree(cm);
}

Usage Example

/* Mutex ceiling = highest priority of any task using it (Priority 3) */
static CeilingMutex_t *spi_mutex = NULL;

void SystemInit(void) {
    spi_mutex = CeilingMutex_Create(3);  /* Ceiling = Priority 3 (T_High) */
}

void Task_High(void *pv) {
    for (;;) {
        if (CeilingMutex_Lock(spi_mutex, pdMS_TO_TICKS(100))) {
            /* Critical section: SPI transaction */
            SPI_Transaction();
            CeilingMutex_Unlock(spi_mutex);
        }
        vTaskDelay(pdMS_TO_TICKS(10));
    }
}

void Task_Low(void *pv) {
    for (;;) {
        if (CeilingMutex_Lock(spi_mutex, pdMS_TO_TICKS(100))) {
            /* Long critical section: 5ms SPI DMA setup */
            SPI_DMA_Setup();
            CeilingMutex_Unlock(spi_mutex);
        }
        vTaskDelay(pdMS_TO_TICKS(50));
    }
}

Response-Time Analysis with PCP

The classic response-time equation for task τ_i under RMS:

R_i = C_i + B_i + Σ_{j ∈ hp(i)} ⌈R_i / T_j⌉ × C_j

Where:

• C_i = WCET of task τ_i
• B_i = Blocking time from lower-priority tasks
• hp(i) = set of higher-priority tasks

Blocking Term B_i with PCP

Under PCP, task τ_i can be blocked at most once by a lower-priority task holding a resource whose ceiling is ≥ priority of τ_i:

B_i = max{ C_k^crit | priority(k) < priority(i) AND ceiling(M) ≥ priority(i) }

Where C_k^crit is the WCET of the critical section of task τ_k on mutex M.

Example calculation:

Ceiling(M) = 3 (from T_H)

• B_H = 0 (no lower-priority task holds resource with ceiling ≥ 3 while T_H runs — T_L’s ceiling is 3, but T_H preempts)
• B_M = 4 ms (T_L’s critical section, ceiling 3 ≥ priority 2)
• B_L = 0 (lowest priority, no blocking)

Wait — this is a common misconception. Let’s correct:

Under PCP, T_H can be blocked by T_L if T_L holds M when T_H is released. But the blocking is bounded by T_L’s critical section (4 ms). The key is: T_H is blocked only by T_L’s critical section, not by T_M.

Correct blocking terms:

B_H = max critical section of lower-priority tasks with ceiling ≥ 3 = 4 ms (T_L)
B_M = max critical section of lower-priority tasks with ceiling ≥ 2 = 4 ms (T_L)
B_L = 0

Response times:

• R_H = 2 + 4 + 0 = 6 ms ≤ 10 ms ✓
• R_M = 3 + 4 + ⌈R_M/10⌉×2 → converges to 13 ms ≤ 20 ms ✓
• R_L = 5 + 0 + ⌈R_L/10⌉×2 + ⌈R_L/20⌉×3 → converges to 18 ms ≤ 50 ms ✓

All tasks schedulable.

ASCII Art: PCP State Transitions

+------------------------------------------------------------------+
|                    PRIORITY CEILING PROTOCOL                     |
|                         STATE MACHINE                            |
+------------------------------------------------------------------+

    TASK STATES (per task)                          MUTEX STATE
    +-----------------+                             +-----------------+
    |                 |                             |                 |
    |   READY         |                             |   UNLOCKED      |
    |     |           |                             |   ceiling = 3   |
    |     v           |                             |                 |
    |   RUNNING       |                             +-----------------+
    |     |           |                                   |
    |     | lock(M)   |                                   | lock(M) by T_Low
    |     v           |                                   v
    |   BLOCKED  <----+---------------------------------->+-----------------+
    |     |           |                             |   LOCKED        |
    |     | unlock(M) |                             |   holder = T_Low|
    |     v           |                             |   eff_prio = 3  |
    |   READY         |                             |   (ceiling)     |
    |                 |                             +-----------------+
    +-----------------+                                   |
          ^                                             | unlock(M)
          |                                             v
          |                                      +-----------------+
          +-------------------------------------->|   UNLOCKED      |
                                                     +-----------------+


    PREEMPTION BEHAVIOR WITH PCP

    Timeline (Time ->)
    +------------------------------------------------------------------+
    | T_Low (prio 1):    [====== LOCK M ========] [UNLOCK] [==========] |
    |                       |              |           |                |
    |                       |  eff_prio=3  |  eff_prio=3 |                |
    |                       v              v           v                |
    | T_High (prio 3):    ------ BLOCKED ------> RUNNING ------------> |
    |                       ^              ^           ^                |
    | T_Med (prio 2):     --- CANNOT ----- CANNOT ---- CANNOT --------- |
    |                       PREEMPT        PREEMPT     PREEMPT         |
    +------------------------------------------------------------------+

    Legend: [====] = Running at effective priority  [===] = Critical section

PCP vs PIP: Decision Matrix

Practical Considerations

1. Ceiling assignment: Compute ceilings offline during system configuration. The ceiling is the maximum priority of any task that may lock the mutex — not just tasks that currently do.

2. Interrupt safety: ISRs must not call CeilingMutex_Lock with blocking timeout. Use timeout = 0 or a separate lock-free ring buffer for ISR-to-task communication.

3. Nested critical sections: PCP handles nested locks correctly if ceilings are computed transitively. The effective priority becomes the maximum of all held mutex ceilings.

4. Stack usage: Priority elevation means the task runs at a higher priority — ensure its stack can accommodate worst-case preemption depth at that priority.

5. Verification: Use response-time analysis with the B_i blocking term. Tools like Rapita RapiTime, LDRA, or Mast can automate this.

Summary

Priority inversion is not a theoretical curiosity — it caused the Mars Pathfinder reset in 1997. Rate Monotonic Scheduling guarantees optimal fixed-priority assignment, but without a resource protocol, the scheduling guarantees collapse under resource sharing.

The Priority Ceiling Protocol restores the guarantees:

• Bounded blocking — each task waits at most one critical section
• No chained blocking — transitive priority inversion eliminated
• Deadlock freedom — by construction
• Analyzable — blocking term B_i fits directly into response-time analysis

For safety-critical systems (automotive, avionics, medical), PCP or its dynamic variants (DPCP, Stack Resource Policy) are mandatory. For general-purpose FreeRTOS applications, the native Priority Inheritance mutex is often sufficient — but understand its limits. If your system cannot tolerate chained blocking, implement PCP explicitly as shown.

Related Reading

• Mutex vs Semaphore in RTOS: Choosing the Right Synchronization Primitive
• Priority Inversion and Inheritance in RTOS
• FreeRTOS Task Notification Latency vs Queue Performance
• Rate Monotonic Scheduling and Schedulability Analysis in RTOS

References

1. Sha, L., Rajkumar, R., & Lehoczky, J. P. (1990). “Priority Inheritance Protocols: An Approach to Real-Time Synchronization.” IEEE Transactions on Computers, 39(9), 1175-1185.
2. Liu, C. L., & Layland, J. W. (1973). “Scheduling Algorithms for Multiprogramming in a Hard-Real-Time Environment.” Journal of the ACM, 20(1), 46-61.
3. Burns, A., & Wellings, A. (2009). Real-Time Systems and Programming Languages: Ada, Real-Time Java and C/Real-Time POSIX (4th ed.). Addison-Wesley. ISBN 978-0321417459.
4. AUTOSAR Consortium. (2019). Specification of OS (AUTOSAR CP 4.4.0). Section 7.5: Resource Management and Priority Ceiling Protocol.
5. Barr, M. (2011). “Priority Inversion: What It Is and How to Prevent It.” Embedded Systems Programming. Retrieved from https://barrgroup.com/embedded-systems/how-to/priority-inversion
6. FreeRTOS Kernel Developer Guide. Mutexes and Priority Inheritance. https://www.freertos.org/Real-time-embedded-RTOS-mutexes.html
