Automating Firmware Release Pipelines with GitHub Actions

The Problem: Manual Firmware Releases Don’t Scale

You push a tag. Someone clones the repo, checks out the tag, runs the build script manually, copies artifacts to a shared drive, emails the team. A week later, production runs a binary nobody can trace back to source. No SHA. No version string. No signature. Just a .hex file named firmware_v2_final_REAL.hex.

This is how embedded teams ship. It works until it doesn’t — until a customer reports a bug in “v2.1” but your git history shows three different v2.1 builds from that week, each with different compiler flags.

Automated release pipelines fix this. Every release artifact is reproducible, traceable, and verifiable. GitHub Actions makes this practical without maintaining Jenkins servers.

What This Pipeline Solves

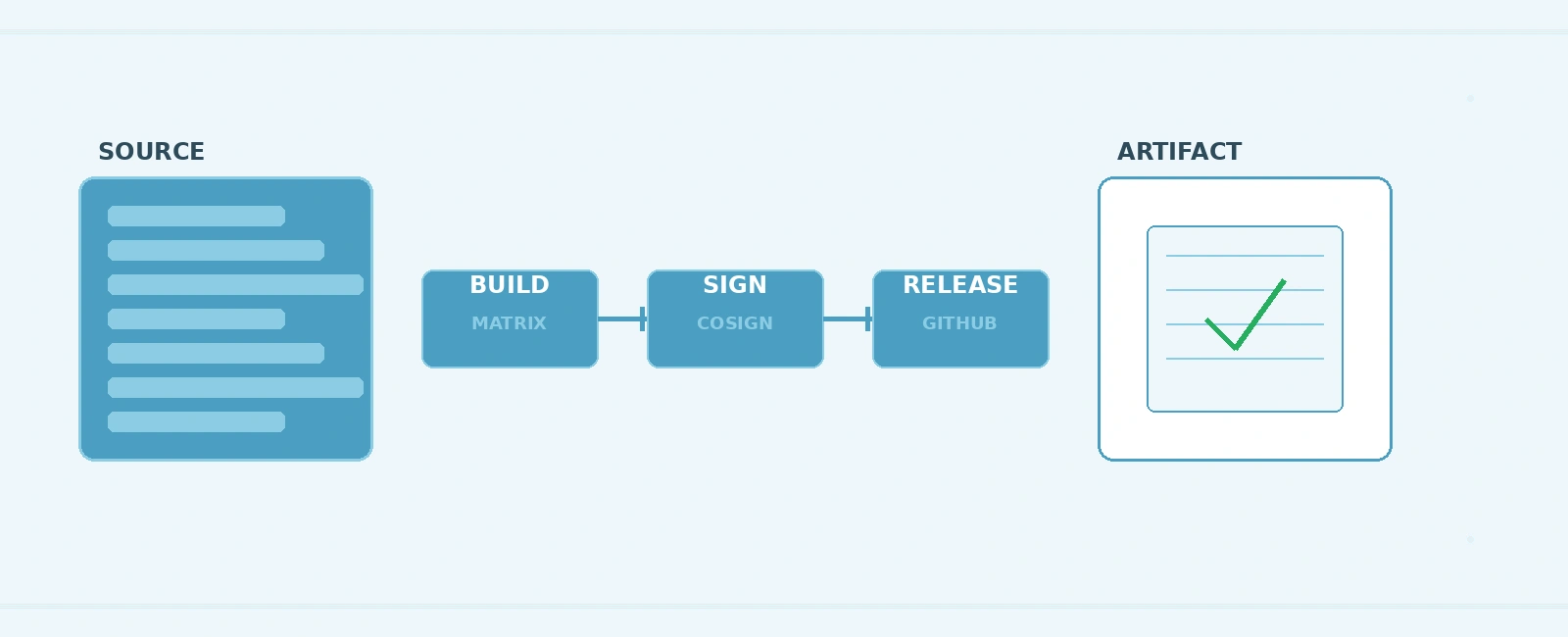

Architecture Overview

+------------------+     +------------------+     +------------------+
|   Push Tag       |---->|  Matrix Build    |---->|  Collect & Sign  |
|  (v1.2.3)        |     |  (STM32/ESP32/   |     |  Artifacts       |
|                  |     |   nRF52)         |     |                  |
+------------------+     +------------------+     +------------------+
                                                          |
                                                          v
+------------------+     +------------------+     +------------------+
|  GitHub Release  |<----|  Attach          |<----|  Verify          |
|  (auto-generated)|     |  Artifacts       |     |  Checksums/Sigs  |
+------------------+     +------------------+     +------------------+

Step 1: Pin Your Toolchain in Docker

Reproducibility starts with the build environment. Don’t rely on apt-get install gcc-arm-none-eabi — versions drift.

Dockerfile Structure

# .github/docker/arm-toolchain/Dockerfile
FROM ubuntu:22.04

# Pin exact versions -- update intentionally, not accidentally
ARG GCC_VERSION=13.2.rel1
ARG CMAKE_VERSION=3.28.3
ARG NINJA_VERSION=1.11.1

RUN apt-get update && apt-get install -y --no-install-recommends \
    wget ca-certificates xz-utils python3 python3-pip git \
    && rm -rf /var/lib/apt/lists/*

# ARM GCC from Arm developer site (stable URLs)
RUN wget -q "https://developer.arm.com/-/media/Files/downloads/gnu/${GCC_VERSION}/binrel/arm-gnu-toolchain-${GCC_VERSION}-x86_64-arm-none-eabi.tar.xz" \
    && tar -xf "arm-gnu-toolchain-${GCC_VERSION}-x86_64-arm-none-eabi.tar.xz" -C /opt \
    && ln -s "/opt/arm-gnu-toolchain-${GCC_VERSION}-x86_64-arm-none-eabi/bin/arm-none-eabi-gcc" /usr/local/bin/arm-none-eabi-gcc \
    && rm "arm-gnu-toolchain-${GCC_VERSION}-x86_64-arm-none-eabi.tar.xz"

# CMake
RUN wget -q "https://github.com/Kitware/CMake/releases/download/v${CMAKE_VERSION}/cmake-${CMAKE_VERSION}-linux-x86_64.tar.gz" \
    && tar -xf "cmake-${CMAKE_VERSION}-linux-x86_64.tar.gz" -C /opt \
    && ln -s "/opt/cmake-${CMAKE_VERSION}-linux-x86_64/bin/cmake" /usr/local/bin/cmake \
    && rm "cmake-${CMAKE_VERSION}-linux-x86_64.tar.gz"

# Ninja
RUN wget -q "https://github.com/ninja-build/ninja/releases/download/v${NINJA_VERSION}/ninja-linux.zip" \
    && unzip -q ninja-linux.zip -d /opt/ninja \
    && ln -s /opt/ninja/ninja /usr/local/bin/ninja \
    && rm ninja-linux.zip

ENV PATH="/opt/arm-gnu-toolchain-${GCC_VERSION}-x86_64-arm-none-eabi/bin:/opt/cmake-${CMAKE_VERSION}-linux-x86_64/bin:/opt/ninja:${PATH}"

WORKDIR /workspace
ENTRYPOINT ["/bin/bash"]

Build and push once; reference by digest in workflows:

docker build -t ghcr.io/yourorg/arm-toolchain:13.2.rel1 .github/docker/arm-toolchain
docker push ghcr.io/yourorg/arm-toolchain:13.2.rel1

Version Pinning Strategy

Pin the Docker image by SHA256 digest in workflows, not by tag. Tags are mutable; digests are immutable. Update the digest intentionally when you validate a new toolchain version.

Step 2: Embed Version and Git Metadata in the Binary

The binary must know its own identity. Generate a header at configure time:

# cmake/Version.cmake
# Runs at configure time -- embeds version + git SHA into firmware

execute_process(
    COMMAND git rev-parse HEAD
    WORKING_DIRECTORY ${CMAKE_SOURCE_DIR}
    OUTPUT_VARIABLE GIT_SHA1
    OUTPUT_STRIP_TRAILING_WHITESPACE
)

execute_process(
    COMMAND git rev-parse --short HEAD
    WORKING_DIRECTORY ${CMAKE_SOURCE_DIR}
    OUTPUT_VARIABLE GIT_SHA1_SHORT
    OUTPUT_STRIP_TRAILING_WHITESPACE
)

# Check for uncommitted changes
execute_process(
    COMMAND git status --porcelain
    WORKING_DIRECTORY ${CMAKE_SOURCE_DIR}
    OUTPUT_VARIABLE GIT_STATUS
    OUTPUT_STRIP_TRAILING_WHITESPACE
)

set(GIT_DIRTY "${GIT_STATUS}")
if(GIT_DIRTY)
    set(GIT_DIRTY "1")
else()
    set(GIT_DIRTY "0")
endif()

# Version from git tag or fallback
execute_process(
    COMMAND git describe --tags --always --dirty=-dirty
    WORKING_DIRECTORY ${CMAKE_SOURCE_DIR}
    OUTPUT_VARIABLE FULL_VERSION
    OUTPUT_STRIP_TRAILING_WHITESPACE
)

# Build timestamp (ISO 8601)
string(TIMESTAMP CMAKE_BUILD_TIME "%Y-%m-%dT%H:%M:%SZ" UTC)

# Generate version header
configure_file(
    ${CMAKE_SOURCE_DIR}/include/version.h.in
    ${CMAKE_BINARY_DIR}/generated/version.h
    @ONLY
)

target_include_directories(${PROJECT_NAME} PRIVATE ${CMAKE_BINARY_DIR}/generated)

// include/version.h.in -- template
#pragma once

#define FIRMWARE_VERSION          "@FULL_VERSION@"
#define FIRMWARE_GIT_SHA          "@GIT_SHA1@"
#define FIRMWARE_GIT_SHA_SHORT    "@GIT_SHA1_SHORT@"
#define FIRMWARE_GIT_DIRTY        @GIT_DIRTY@
#define FIRMWARE_BUILD_TIMESTAMP  "@CMAKE_BUILD_TIME@"

// src/main.c -- print at boot
#include "version.h"

void print_firmware_info(void) {
    printf("\n========================================\n");
    printf("Firmware: %s\n", FIRMWARE_VERSION);
    printf("Git SHA:  %s\n", FIRMWARE_GIT_SHA_SHORT);
    if (FIRMWARE_GIT_DIRTY) {
        printf("WARNING: Built from dirty tree!\n");
    }
    printf("Built:    %s\n", FIRMWARE_BUILD_TIMESTAMP);
    printf("========================================\n\n");
}

Now every boot identifies the exact source.

Step 3: Matrix Build for Multiple Targets

One workflow, multiple MCUs. The matrix strategy scales:

# .github/workflows/release.yml
name: Firmware Release

on:
  push:
    tags:
      - 'v*'  # Only trigger on version tags

permissions:
  contents: write      # Create release, upload artifacts
  id-token: write      # For cosign signing
  attestations: write  # For SLSA provenance

env:
  DOCKER_IMAGE: ghcr.io/yourorg/arm-toolchain@sha256:<digest>
  ARTIFACT_RETENTION_DAYS: 90

jobs:
  build:
    name: Build ${{ matrix.target }}
    runs-on: ubuntu-latest
    timeout-minutes: 30
    strategy:
      fail-fast: false
      matrix:
        include:
          - target: stm32f407
            board: STM32F407VG
            cmake_args: "-DMCU=STM32F407VGT6 -DBOARD=STM32F4_DISCOVERY"
            artifact_name: "firmware-stm32f407"
          - target: esp32
            board: ESP32-WROOM-32
            cmake_args: "-DMCU=ESP32 -DBOARD=ESP32_DEVKIT_V1"
            artifact_name: "firmware-esp32"
          - target: nrf52840
            board: nRF52840-DK
            cmake_args: "-DMCU=NRF52840 -DBOARD=NRF52840_DK"
            artifact_name: "firmware-nrf52840"

    container:
      image: ${{ env.DOCKER_IMAGE }}
      options: --user root

    steps:
      - name: Checkout
        uses: actions/checkout@v4
        with:
          fetch-depth: 0  # Full history for git describe
          submodules: recursive

      - name: Configure CMake
        run: |
          cmake -B build/${{ matrix.target }} \
            -G Ninja \
            -DCMAKE_BUILD_TYPE=Release \
            ${{ matrix.cmake_args }}

      - name: Build
        run: |
          cmake --build build/${{ matrix.target }} -- -j$(nproc)

      - name: Verify artifacts exist
        run: |
          ls -la build/${{ matrix.target }}/*.{bin,hex,elf,map} || exit 1

      - name: Generate checksums
        run: |
          cd build/${{ matrix.target }}
          sha256sum *.bin *.hex *.elf > checksums.txt
          cat checksums.txt

      - name: Upload artifacts
        uses: actions/upload-artifact@v4
        with:
          name: ${{ matrix.artifact_name }}
          path: |
            build/${{ matrix.target }}/*.bin
            build/${{ matrix.target }}/*.hex
            build/${{ matrix.target }}/*.elf
            build/${{ matrix.target }}/*.map
            build/${{ matrix.target }}/checksums.txt
          retention-days: ${{ env.ARTIFACT_RETENTION_DAYS }}

Step 4: Sign Artifacts with Cosign (Keyless)

Keyless signing via OIDC — no long-lived secrets in GitHub:

sign:
    name: Sign Artifacts
    needs: build
    runs-on: ubuntu-latest
    permissions:
      id-token: write
      attestations: write
      contents: read
    steps:
      - name: Download all artifacts
        uses: actions/download-artifact@v4
        with:
          pattern: firmware-*
          path: artifacts
          merge-multiple: true

      - name: Install cosign
        uses: sigstore/cosign-installer@v3
        with:
          cosign-release: 'v2.4.0'

      - name: Sign each artifact
        run: |
          for f in artifacts/*.bin artifacts/*.hex artifacts/*.elf; do
            [ -f "$f" ] || continue
            cosign sign-blob --yes --bundle "${f}.bundle" "$f"
          done

      - name: Upload signatures
        uses: actions/upload-artifact@v4
        with:
          name: signatures
          path: artifacts/*.bundle
          retention-days: ${{ env.ARTIFACT_RETENTION_DAYS }}

The signatures are verifiable by anyone using the Sigstore bundle (certificate + transparency log proof published to Rekor). No secret management or long-lived keys needed.

Step 5: Create GitHub Release with All Artifacts

release:
    name: Create GitHub Release
    needs: [build, sign]
    runs-on: ubuntu-latest
    permissions:
      contents: write
    steps:
      - name: Checkout
        uses: actions/checkout@v4
        with:
          fetch-depth: 0  # Full history for release notes generation

      - name: Download all artifacts
        uses: actions/download-artifact@v4
        with:
          pattern: firmware-*
          path: release-assets
          merge-multiple: true

      - name: Download signatures
        uses: actions/download-artifact@v4
        with:
          name: signatures
          path: release-assets

      - name: Verify all checksums
        run: |
          cd release-assets
          for dir in firmware-*/; do
            if [ -f "${dir}checksums.txt" ]; then
              echo "Verifying ${dir}"
              (cd "$dir" && sha256sum -c checksums.txt) || exit 1
            fi
          done

      - name: Generate release notes
        id: changelog
        run: |
          # Extract commits since last tag
          PREV_TAG=$(git describe --tags --abbrev=0 HEAD^ 2>/dev/null || echo "")
          if [ -n "$PREV_TAG" ]; then
            git log --pretty=format:"- %s (%h)" ${PREV_TAG}..HEAD > release_notes.md
          else
            git log --pretty=format:"- %s (%h)" -n 20 > release_notes.md
          fi
          cat release_notes.md

      - name: Create Release
        uses: softprops/action-gh-release@v2
        with:
          tag_name: ${{ github.ref_name }}
          name: Release ${{ github.ref_name }}
          body_path: release_notes.md
          files: |
            release-assets/firmware-*/*.bin
            release-assets/firmware-*/*.hex
            release-assets/firmware-*/*.elf
            release-assets/firmware-*/*.map
            release-assets/firmware-*/checksums.txt
            release-assets/*.bundle
          draft: false
          prerelease: ${{ contains(github.ref_name, '-rc') }}
          generate_release_notes: false

Step 6: Hardware-in-the-Loop Testing (Optional but Recommended)

For release candidates, run on real hardware:

hil-test:
    name: HIL Test ${{ matrix.target }}
    needs: build
    if: contains(github.ref_name, '-rc')
    runs-on: [self-hosted, linux, arm64, hil]  # Your lab runner
    timeout-minutes: 60
    strategy:
      fail-fast: false
      matrix:
        include:
          - target: stm32f407
            openocd_cfg: "board/stm32f4discovery.cfg"
            test_binary: "build/stm32f407/firmware-stm32f407.elf"
          - target: nrf52840
            openocd_cfg: "interface/jlink.cfg -f target/nrf52.cfg"
            test_binary: "build/nrf52840/firmware-nrf52840.elf"

    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Install OpenOCD + GDB
        run: |
          apt-get update && apt-get install -y openocd gdb-multiarch

      - name: Download test binary
        uses: actions/download-artifact@v4
        with:
          name: firmware-${{ matrix.target }}
          path: firmware

      - name: Flash and run smoke test
        run: |
          openocd -f ${{ matrix.openocd_cfg }} \
            -c "program ${{ matrix.test_binary }} verify reset exit" \
            2>&1 | tee flash.log

      - name: Run automated test suite
        run: |
          # Connect via GDB, run test functions, check results
          gdb-multiarch -ex "target extended-remote :3333" \
            -ex "load" -ex "continue" \
            -batch ${{ matrix.test_binary }} \
            2>&1 | tee test.log
          # Parse test.log for PASS/FAIL

Self-hosted runner in your lab connects to target boards via OpenOCD. The workflow flashes, runs a test suite, reports results. Only for -rc tags — keeps PR checks fast.

Step 7: Enforce Clean Tree and Required Checks

Branch protection + workflow rules prevent accidental releases:

# .github/workflows/pr-checks.yml -- runs on every PR
name: PR Checks

on:
  pull_request:
    branches: [main]

env:
  DOCKER_IMAGE: ghcr.io/yourorg/arm-toolchain@sha256:<digest>

jobs:
  build-check:
    name: Build Check ${{ matrix.target }}
    runs-on: ubuntu-latest
    strategy:
      fail-fast: false
      matrix:
        include:
          - target: stm32f407
            cmake_args: "-DMCU=STM32F407VGT6 -DBOARD=STM32F4_DISCOVERY"
          - target: esp32
            cmake_args: "-DMCU=ESP32 -DBOARD=ESP32_DEVKIT_V1"
          - target: nrf52840
            cmake_args: "-DMCU=NRF52840 -DBOARD=NRF52840_DK"

    container:
      image: ${{ env.DOCKER_IMAGE }}

    steps:
      - uses: actions/checkout@v4
        with: { submodules: recursive, fetch-depth: 0 }

      - name: Configure
        run: cmake -B build/${{ matrix.target }} -G Ninja -DCMAKE_BUILD_TYPE=Release ${{ matrix.cmake_args }}

      - name: Build
        run: cmake --build build/${{ matrix.target }}

      - name: Static analysis
        run: |
          # cppcheck, clang-tidy, or your preferred analyzer
          cppcheck --enable=all --std=c11 --error-exitcode=1 src/

Branch protection rule on main:

• Require status checks: Build Check stm32f407, Build Check esp32, Build Check nrf52840
• Require linear history
• Require signed commits (optional but recommended)
• No force pushes

Now you cannot push a tag unless all targets build clean.

Release Pipeline Flow

+-----------------------------------------------------------------------+
|                        RELEASE PIPELINE FLOW                          |
+-----------------------------------------------------------------------+
|                                                                       |
|  DEVELOPER                                                         CI |
|  +----------+      +----------+      +----------+      +----------+   |
|  |  Code    |      |  Push    |      |  Matrix  |      |   Tag    |   |
|  |  Changes | ---> |  Branch  | ---> |  Build   | ---> |   Push   |   |
|  +----------+      +----------+      +----------+      +----------+   |
|       |                 |                 |                 |         |
|       |                 |                 |                 |         |
|       v                 v                 v                 v         |
|  +----------+      +----------+      +----------+      +----------+   |
|  |  PR      |      |  Checks  |      | Artifacts|      | Release  |   |
|  |  Review  |      |  Pass    |      | Generated|      | Created  |   |
|  +----------+      +----------+      +----------+      +----------+   |
|                                                                       |
|  HARDWARE LAB (self-hosted runner)                                    |
|  +----------+      +----------+      +----------+                     |
|  |  Flash   | ---> | Run Test | ---> |  Report  |                     |
|  |  Binary  |      |  Suite   |      |  Results |                     |
|  +----------+      +----------+      +----------+                     |
|                                                                       |
+-----------------------------------------------------------------------+

Step 8: Verify the Release Locally

Anyone can verify a release artifact matches the source:

#!/bin/bash
# verify-release.sh -- run after downloading release artifacts

TAG="v1.2.3"
REPO="yourorg/your-firmware"

# Download artifacts
gh release download "$TAG" -R "$REPO" -D ./release-$TAG

# Verify checksums
cd ./release-$TAG
for f in firmware-*/checksums.txt; do
  echo "Verifying $f"
  (cd "$(dirname "$f")" && sha256sum -c checksums.txt) || exit 1
done

# Verify cosign signatures (keyless)
# Note: For keyless, you must specify the exact workflow identity that signed it
IDENTITY="https://github.com/${REPO}/.github/workflows/release.yml@refs/tags/${TAG}"
ISSUER="https://token.actions.githubusercontent.com"

for bundle in *.bundle; do
  artifact="${bundle%.bundle}"
  if [ -f "$artifact" ]; then
    echo "Verifying signature for $artifact"
    cosign verify-blob \
      --bundle "$bundle" \
      --certificate-identity "$IDENTITY" \
      --certificate-oidc-issuer "$ISSUER" \
      "$artifact" || exit 1
  fi
done

# Extract git SHA embedded in binary and display it
for elf in firmware-*/*.elf; do
  SHA=$(strings "$elf" | grep -E '^[0-9a-f]{40}$' | head -1)
  echo "$elf -> Git SHA: $SHA"
done

echo "All verifications passed."

Common Pitfalls

Summary

Automated firmware releases aren’t a luxury — they’re the minimum viable process for any team shipping to production. The pipeline above gives you:

• Reproducibility: Pinned toolchain in Docker, full git history at build time
• Traceability: Git SHA, version, dirty flag embedded in every binary
• Verifiability: SHA256 checksums + cosign signatures on every artifact
• Scalability: Matrix strategy adds new targets in 5 lines of YAML
• Hardware validation: Optional HIL tests on real boards for release candidates

Start with the Dockerfile and version embedding — those two changes alone eliminate the “which commit built this?” problem. Add matrix builds, signing, and HIL incrementally. The first automated release pays for the setup time.

Related Reading

• CMake for Embedded C: Cross-Compilation and Dependency Management
• Debugging Hard Faults on ARM Cortex-M: A Systematic Approach
• Reducing Embedded Firmware Size with Linker Garbage Collection

References

1. GitHub Actions Documentation — “Using matrix strategies for multi-platform builds” — https://docs.github.com/en/actions/using-jobs/using-a-matrix-for-your-jobs
2. Sigstore Cosign — “Keyless signing with GitHub Actions OIDC” — https://docs.sigstore.dev/cosign/
3. ARM Embedded Toolchain — “Arm GNU Toolchain releases on GitLab” — https://gitlab.arm.com/tooling/gnu-toolchains-for-arm/-/tree/main
4. CMake Documentation — “configure_file() for generating version headers” — https://cmake.org/cmake/help/latest/command/configure_file.html
5. Semantic Versioning 2.0.0 — “Specification for versioning schemes” — https://semver.org/
6. SLSA Framework — “Supply chain Levels for Software Artifacts” — https://slsa.dev/
