CMake for Embedded C: Cross-Compilation & Dependency Management

CMake has become the de facto standard build system for embedded C projects, displacing hand-written Makefiles and vendor-specific IDE project files. Its strength lies not in building code — any build system can invoke a compiler — but in modeling the build configuration as a directed acyclic graph of targets, each carrying compile options, include directories, link libraries, and transitive usage requirements. For embedded development, this target-oriented model maps directly to the problems we face daily: cross-compilation toolchains, vendor SDK integration, firmware image generation, and reproducible CI builds.

This article walks through a production-grade CMake setup for a Cortex-M4 project using the ARM GCC toolchain, FreeRTOS, and CMSIS. It covers toolchain files, FetchContent-based dependency management, generator expressions for build-type-specific flags, linker script integration, and post-build steps for binary/hex generation.

Toolchain File: The Cross-Compilation Contract

The toolchain file is the single source of truth for the target environment. It tells CMake: this is not the host system; do not search host paths for libraries or headers.

# cmake/toolchains/arm-none-eabi-gcc.cmake
cmake_minimum_required(VERSION 3.20)

set(CMAKE_SYSTEM_NAME Generic)
set(CMAKE_SYSTEM_PROCESSOR arm)

# Bypass compile/link test failures on bare-metal targets
set(CMAKE_TRY_COMPILE_TARGET_TYPE STATIC_LIBRARY)

# Cross-compiler triplet
set(CMAKE_C_COMPILER arm-none-eabi-gcc)
set(CMAKE_CXX_COMPILER arm-none-eabi-g++)
set(CMAKE_ASM_COMPILER arm-none-eabi-gcc)
set(CMAKE_OBJCOPY arm-none-eabi-objcopy)
set(CMAKE_OBJDUMP arm-none-eabi-objdump)
set(CMAKE_SIZE arm-none-eabi-size)

# Isolate find_* commands to the sysroot
set(CMAKE_FIND_ROOT_PATH_MODE_PROGRAM NEVER)
set(CMAKE_FIND_ROOT_PATH_MODE_LIBRARY ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_INCLUDE ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_PACKAGE ONLY)

# Note: Architecture-specific flags (e.g., -mcpu=cortex-m4) and linker specs
# should NOT go here. Keep the toolchain file generic and apply CPU flags
# at the target level in your CMakeLists.txt via target_compile_options.

# Optional: point to a sysroot if you have one
# set(CMAKE_FIND_ROOT_PATH /opt/arm/gcc-arm-none-eabi/arm-none-eabi)

Invoke it at configure time:

cmake -B build -S . \
      -DCMAKE_TOOLCHAIN_FILE=cmake/toolchains/arm-none-eabi-gcc.cmake \
      -DCMAKE_BUILD_TYPE=Release

Key point: CMAKE_SYSTEM_NAME=Generic disables CMake’s platform detection logic. Without it, CMake tries to run uname or inspect /usr/include, which fails or pollutes the build with host headers. Setting CMAKE_TRY_COMPILE_TARGET_TYPE=STATIC_LIBRARY is critical; it forces CMake’s compiler checks to compile test files into static libraries rather than fully linked executables. This prevents false compiler check failures caused by missing bare-metal runtime syscalls (such as _exit or _sbrk). The FIND_ROOT_PATH_MODE_* variables force find_package, find_library, and find_path to search only under CMAKE_FIND_ROOT_PATH (your SDK/sysroot), never the host filesystem.

Project Structure and Minimal CMakeLists.txt

firmware/
├── CMakeLists.txt
├── cmake/
│   ├── toolchains/
│   │   └── arm-none-eabi-gcc.cmake
│   └── modules/
│       └── GenerateFirmwareImages.cmake
├── src/
│   ├── main.c
│   ├── startup_stm32f407xx.S
│   └── system_stm32f4xx.c
├── include/
│   └── board.h
├── linker/
│   └── stm32f407vg_flash.ld
├── deps/          # FetchContent populates here
└── build/         # Out-of-tree build directory

# CMakeLists.txt
cmake_minimum_required(VERSION 3.20)
project(firmware LANGUAGES C ASM)

# --- Toolchain is passed via -DCMAKE_TOOLCHAIN_FILE=... ---
# No need to set compiler variables here.

# --- Build type default ---
if(NOT CMAKE_BUILD_TYPE)
  set(CMAKE_BUILD_TYPE Release CACHE STRING "Build type" FORCE)
endif()

# --- Linker script ---
set(LINKER_SCRIPT ${CMAKE_SOURCE_DIR}/linker/stm32f407vg_flash.ld)

# --- Main target ---
add_executable(${PROJECT_NAME}.elf
  src/main.c
  src/startup_stm32f407xx.S
  src/system_stm32f4xx.c
)

target_include_directories(${PROJECT_NAME}.elf PRIVATE
  ${CMAKE_SOURCE_DIR}/include
)

# Cortex-M4F flags via generator expressions (per-config)
target_compile_options(${PROJECT_NAME}.elf PRIVATE
  $<$<CONFIG:Debug>:-Og -g3 -gdwarf-4>
  $<$<CONFIG:Release>:-O2 -g>
  $<$<CONFIG:MinSizeRel>:-Os -g>
  -Wall -Wextra -Wpedantic -Werror=implicit-function-declaration
  -ffunction-sections -fdata-sections
  -mcpu=cortex-m4 -mthumb -mfloat-abi=hard -mfpu=fpv4-sp-d16
)

target_link_options(${PROJECT_NAME}.elf PRIVATE
  -T${LINKER_SCRIPT}
  -Wl,--gc-sections
  -Wl,--print-memory-usage
  -specs=nosys.specs -specs=nano.specs
)

# --- Post-build: .bin, .hex, size report ---
add_custom_command(TARGET ${PROJECT_NAME}.elf POST_BUILD
  COMMAND ${CMAKE_OBJCOPY} -O binary $<TARGET_FILE:${PROJECT_NAME}.elf> $<TARGET_FILE_DIR:${PROJECT_NAME}.elf>/${PROJECT_NAME}.bin
  COMMAND ${CMAKE_OBJCOPY} -O ihex $<TARGET_FILE:${PROJECT_NAME}.elf> $<TARGET_FILE_DIR:${PROJECT_NAME}.elf>/${PROJECT_NAME}.hex
  COMMAND ${CMAKE_SIZE} -B -d $<TARGET_FILE:${PROJECT_NAME}.elf>
  COMMENT "Generating firmware images and size report"
)

Why generator expressions for compile flags? Hardcoding -O2 in CMAKE_C_FLAGS locks you to Release optimization. With $<$<CONFIG:Debug>:-Og>, a single build tree supports cmake --build build --config Debug (multi-config generators like Ninja Multi-Config, VS) and CMAKE_BUILD_TYPE=Debug (single-config generators). The same CMakeLists.txt works for both.

Dependency Management with FetchContent

Vendor SDKs (STM32Cube, NXP MCUXpresso) and middleware (FreeRTOS, FatFS, mbedTLS) are dependencies, not submodules you copy-paste. FetchContent downloads them at configure time and makes them available as CMake targets.

# cmake/dependencies.cmake
include(FetchContent)

# --- FreeRTOS Config ---
# FreeRTOS CMake requires a 'freertos_config' target pointing to the config directory.
# Since FreeRTOSConfig.h resides in our include/ directory, we define it here.
add_library(freertos_config INTERFACE)
target_include_directories(freertos_config INTERFACE
  ${CMAKE_SOURCE_DIR}/include
)

# --- FreeRTOS ---
# Set the port before fetching so FreeRTOS configures the right portable layer
set(FREERTOS_PORT GCC_ARM_CM4F CACHE STRING "")
FetchContent_Declare(
  freertos
  GIT_REPOSITORY https://github.com/FreeRTOS/FreeRTOS-Kernel.git
  GIT_TAG        V11.1.0
)
FetchContent_MakeAvailable(freertos)

# Create an alias target to match namespacing guidelines
add_library(freertos::kernel ALIAS freertos_kernel)
target_link_libraries(${PROJECT_NAME}.elf PRIVATE freertos::kernel)

# --- CMSIS Core (Cortex-M) ---
FetchContent_Declare(
  cmsis
  GIT_REPOSITORY https://github.com/ARM-software/CMSIS_5.git
  GIT_TAG        5.9.0
)
FetchContent_GetProperties(cmsis)
if(NOT cmsis_POPULATED)
  FetchContent_Populate(cmsis)
endif()

# CMSIS doesn't have a CMakeLists.txt, so we create an INTERFACE target
# and alias it with a namespace for clean downstream consumption.
add_library(cmsis_core INTERFACE)
target_include_directories(cmsis_core INTERFACE
  ${cmsis_SOURCE_DIR}/CMSIS/Core/Include
)
add_library(cmsis::core ALIAS cmsis_core)

target_link_libraries(${PROJECT_NAME}.elf PRIVATE cmsis::core)

# --- STM32 HAL (device-specific) ---
FetchContent_Declare(
  stm32hal_src
  GIT_REPOSITORY https://github.com/STMicroelectronics/STM32CubeF4.git
  GIT_TAG        v1.28.0
)
FetchContent_GetProperties(stm32hal_src)
if(NOT stm32hal_src_POPULATED)
  FetchContent_Populate(stm32hal_src)
endif()

# Compile HAL sources into a static library
add_library(stm32hal STATIC
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal.c
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal_cortex.c
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal_dma.c
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal_flash.c
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal_gpio.c
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal_pwr.c
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal_rcc.c
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal_uart.c
  # Add more as needed
)

# STM32 HAL requires the HAL includes, CMSIS Core, and CMSIS Device-specific headers.
target_include_directories(stm32hal PUBLIC
  ${CMAKE_SOURCE_DIR}/include  # stm32f4xx_hal_conf.h lives here
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Inc
  ${stm32hal_src_SOURCE_DIR}/Drivers/STM32F4xx_HAL_Driver/Inc/Legacy
  ${stm32hal_src_SOURCE_DIR}/Drivers/CMSIS/Device/ST/STM32F4xx/Include
)

# Link STM32 HAL against CMSIS Core so that consumers get both transitively
target_link_libraries(stm32hal PUBLIC cmsis::core)

target_compile_definitions(stm32hal PUBLIC
  USE_HAL_DRIVER
  STM32F407xx
)
add_library(stm32hal::hal ALIAS stm32hal)

target_link_libraries(${PROJECT_NAME}.elf PRIVATE stm32hal::hal)

Why FetchContent over git submodules?

• Submodules pin a commit but don’t integrate with CMake’s target model. You still write target_include_directories by hand.
• FetchContent makes the dependency a CMake target (or at least exposes its source path as a variable), so target_link_libraries and target_include_directories work naturally.
• It runs at configure time — CI caches the downloaded source, so repeated builds are fast.

Pitfall: FetchContent re-downloads on every clean configure. Set FETCHCONTENT_FULLY_DISCONNECTED=ON in CI after the first run, or use a local mirror.

Generator Expressions: Per-Config Flags Without Duplication

Embedded builds need different flags for Debug vs Release vs MinSizeRel. Generator expressions ($<...>) evaluate at build time, not configure time, enabling a single CMakeLists.txt to drive all configurations.

# Compile options
target_compile_options(${PROJECT_NAME}.elf PRIVATE
  # Optimization per config
  $<$<CONFIG:Debug>:-Og -g3 -gdwarf-4>
  $<$<CONFIG:Release>:-O2 -g>
  $<$<CONFIG:MinSizeRel>:-Os -g>

  # Warnings (always)
  -Wall -Wextra -Wpedantic
  -Werror=implicit-function-declaration
  -Werror=return-type
  -Wshadow
  -Wdouble-promotion

  # Embedded-specific
  -ffunction-sections -fdata-sections
  -fno-common
  -fshort-enums
  -fno-builtin

  # Architecture
  -mcpu=cortex-m4 -mthumb -mfloat-abi=hard -mfpu=fpv4-sp-d16
)

# Link options
target_link_options(${PROJECT_NAME}.elf PRIVATE
  -T${LINKER_SCRIPT}
  -Wl,--gc-sections
  -Wl,--print-memory-usage
  -Wl,-Map=$<TARGET_FILE_DIR:${PROJECT_NAME}.elf>/${PROJECT_NAME}.map
  -specs=nosys.specs -specs=nano.specs
)

# Defines per config
target_compile_definitions(${PROJECT_NAME}.elf PRIVATE
  $<$<CONFIG:Debug>:DEBUG=1>
  $<$<CONFIG:Release>:NDEBUG=1>
  USE_HAL_DRIVER
  STM32F407xx
)

Anti-pattern to avoid: Setting CMAKE_C_FLAGS_DEBUG globally. It affects all targets, including third-party libraries that may not support -Og. Target-specific generator expressions keep flags scoped.

Linker Script Integration

The linker script defines memory regions and section placement. CMake passes it via -T in target_link_options.

/* linker/stm32f407vg_flash.ld */
MEMORY
{
  FLASH (rx)  : ORIGIN = 0x08000000, LENGTH = 1024K
  RAM   (rwx) : ORIGIN = 0x20000000, LENGTH = 128K
  CCM   (rwx) : ORIGIN = 0x10000000, LENGTH = 64K
}

SECTIONS
{
  .isr_vector :
  {
    . = ALIGN(4);
    KEEP(*(.isr_vector))
    . = ALIGN(4);
  } >FLASH

  .text :
  {
    . = ALIGN(4);
    *(.text*)
    *(.rodata*)
    *(.glue_7)
    *(.glue_7t)
    . = ALIGN(4);
  } >FLASH

  .ARM.extab : { *(.ARM.extab*) } >FLASH
  .ARM.exidx : { *(.ARM.exidx*) } >FLASH

  .preinit_array : { KEEP(*(.preinit_array)) } >FLASH
  .init_array : { KEEP(*(SORT(.init_array.*))) KEEP(*(.init_array)) } >FLASH
  .fini_array : { KEEP(*(SORT(.fini_array.*))) KEEP(*(.fini_array)) } >FLASH

  _sidata = LOADADDR(.data);
  .data :
  {
    . = ALIGN(4);
    _sdata = .;
    *(.data*)
    . = ALIGN(4);
    _edata = .;
  } >RAM AT>FLASH

  .bss :
  {
    . = ALIGN(4);
    _sbss = .;
    *(.bss*)
    *(COMMON)
    . = ALIGN(4);
    _ebss = .;
  } >RAM

  .heap :
  {
    . = ALIGN(8);
    _sheap = .;
    . = . + 16K;
    _eheap = .;
  } >RAM

  .stack :
  {
    . = ALIGN(8);
    _sstack = .;
    . = . + 16K;
    _estack = .;
  } >RAM
}

CMake’s --print-memory-usage (via -Wl,--print-memory-usage) emits a summary at link time:

Memory region         Used Size  Region Size  %age Used
FLASH:                    48 KB        1 MB      4.69%
RAM:                      12 KB      128 KB      9.38%
CCM:                       0 B       64 KB      0.00%

ASCII Art: Build System Dependency Graph

+------------------------------------------------------------------------------+
|           CMake Target Dependency Graph: Embedded Firmware Project           |
+------------------------------------------------------------------------------+
|                          firmware.elf (EXECUTABLE)                           |
|                                                                              |
|├── PRIVATE (compile-time only)                                               |
|│                                                                             |
|│   ├── include/         [target_include_directories]                         |
|│   ├── cmake/toolchains/arm-none-eabi-gcc.cmake  [CMAKE_TOOLCHAIN_FILE]      |
|│   └── linker/stm32f407vg_flash.ld  [target_link_options -T]                 |
|│                                                                             |
|├── COMPILE OPTIONS (generator expressions)                                   |
|│   ├── $<$<CONFIG:Debug>:-Og -g3>                                            |
|│   ├── $<$<CONFIG:Release>:-O2 -g>                                           |
|│   ├── $<$<CONFIG:MinSizeRel>:-Os -g>                                        |
|│   ├── -mcpu=cortex-m4 -mthumb -mfloat-abi=hard                              |
|│   ├── -ffunction-sections -fdata-sections                                   |
|│   └── -Wall -Wextra -Werror=implicit-function-declaration                   |
|│                                                                             |
|├── LINK OPTIONS                                                              |
|│   ├── -Wl,--gc-sections --print-memory-usage                                |
|│   ├── -specs=nosys.specs -specs=nano.specs                                  |
|│   └── -T linker/stm32f407vg_flash.ld                                        |
|│                                                                             |
|├── PUBLIC / INTERFACE (transitive usage requirements)                        |
|│                                                                             |
|│   ├── freertos::kernel  (INTERFACE)                                         |
|│   │   ├── include/  ->  FreeRTOS.h, task.h, queue.h                         |
|│   │   ├── portable/GCC/ARM_CM4F  ->  port.c, portmacro.h                    |
|│   │   └── SOURCE_SUBDIR via FetchContent  (Git tag V11.1.0)                 |
|│                                                                             |
|│   ├── cmsis::core  (INTERFACE)                                              |
|│   │   ├── CMSIS/Core/Include  ->  core_cm4.h, cmsis_gcc.h                   |
|│   │   └── SOURCE_SUBDIR via FetchContent  (Git tag 5.9.0)                   |
|│                                                                             |
|│   └── stm32hal::hal  (STATIC)                                              |
|│       ├── Drivers/STM32F4xx_HAL_Driver/Inc                                  |
|│       └── Drivers/CMSIS/Device/ST/STM32F4xx/Include                         |
|│                                                                             |
|└── POST-BUILD COMMANDS (add_custom_command POST_BUILD)                       |
|    ├── objcopy -O binary  firmware.elf  -> firmware.bin                      |
|    ├── objcopy -O ihex    firmware.elf  -> firmware.hex                      |
|    └── size -B -d         firmware.elf  -> memory report                     |
+------------------------------------------------------------------------------+

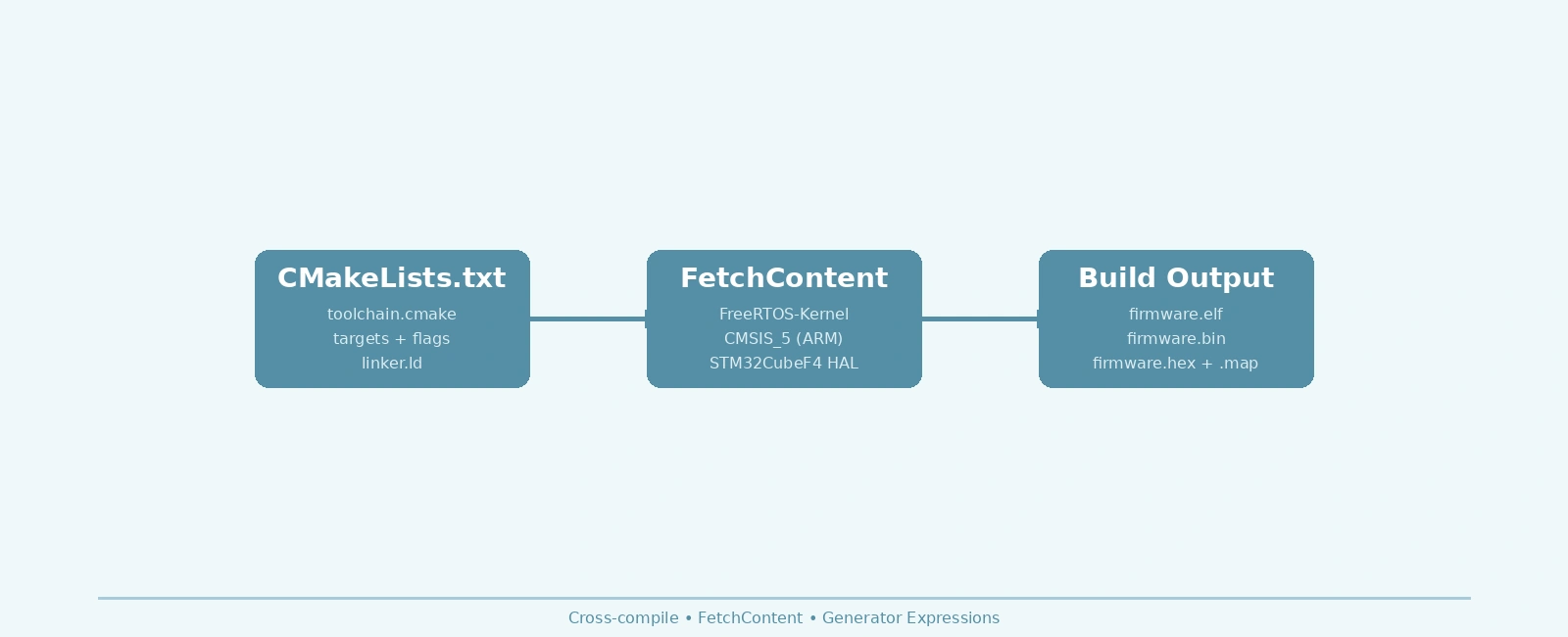

|                                  BUILD FLOW                                  |
+------------------------------------------------------------------------------+
|CMakeLists.txt                                                                |
|    |                                                                         |
|    v                                                                         |
|cmake/toolchains/arm-none-eabi-gcc.cmake                                      |
|    (cross-compile config)                                                    |
|    |                                                                         |
|    v                                                                         |
|FetchContent_Populate()  -->  freertos/  cmsis/                               |
|    (cloned at configure time)                                                |
|    |                                                                         |
|    v                                                                         |
|add_executable(firmware.elf  src/*.c  src/*.S)                                |
|    |                                                                         |
|    +-- target_include_directories()                                          |
|        --> include/, deps/freertos/include, ...                              |
|    |                                                                         |
|    +-- target_compile_options()                                              |
|        --> per-config flags via $<CONFIG:...>                                |
|    |                                                                         |
|    +-- target_link_options()                                                 |
|        --> -T linker.ld  --gc-sections                                       |
|    |                                                                         |
|    v                                                                         |
|arm-none-eabi-gcc (compile) --> link                                          |
|    |                                                                         |
|    v                                                                         |
|POST_BUILD: objcopy -> .bin/.hex                                              |
|         size -> report                                                       |
|    |                                                                         |
|    v                                                                         |
|firmware.bin + firmware.hex                                                   |
|  + firmware.map (flash artifacts)                                            |
+------------------------------------------------------------------------------+

CI Integration: Reproducible Builds

# .github/workflows/build.yml
name: Firmware Build

on: [push, pull_request]

jobs:
  build:
    runs-on: ubuntu-latest
    container: arm-none-eabi/gcc:13.2.1  # Pinned toolchain image

    steps:
      - uses: actions/checkout@v4

      - name: Cache FetchContent
        uses: actions/cache@v4
        with:
          path: build/_deps
          key: ${{ runner.os }}-cmake-deps-${{ hashFiles('**/CMakeLists.txt') }}

      - name: Configure CMake
        run: |
          cmake -B build \
            -DCMAKE_TOOLCHAIN_FILE=cmake/toolchains/arm-none-eabi-gcc.cmake \
            -DCMAKE_BUILD_TYPE=Release \
            -S .

      - name: Build
        run: cmake --build build -- -j$(nproc)

      - name: Upload Artifacts
        uses: actions/upload-artifact@v4
        with:
          name: firmware-images
          path: |
            build/firmware.bin
            build/firmware.hex
            build/firmware.map
          retention-days: 30

Key CI practices:

• Pinned container image (arm-none-eabi/gcc:13.2.1) — guarantees the same compiler version everywhere.
• Dependency Caching (actions/cache) — caches the build/_deps directory, avoiding repeated network calls for FetchContent on subsequent runs.
• Artifact upload for .bin, .hex, .map — the map file is essential for post-mortem analysis.

Summary

CMake brings three concrete advantages to embedded C projects:

1. Toolchain isolation — The toolchain file cleanly separates host and target environments, eliminating “works on my machine” bugs from host header leakage.
2. Dependency modeling — FetchContent + target_link_libraries replaces manual include-path management with a declarative graph. Adding FreeRTOS or mbedTLS is a FetchContent_Declare call, not a directory copy.
3. Configuration granularity — Generator expressions let you express per-build-type flags (optimization, debug info, assertions) in one CMakeLists.txt without duplicating logic.

The minimal setup shown here — toolchain file, FetchContent for FreeRTOS/CMSIS/HAL, generator expressions for flags, linker script integration, and post-build image generation — scales to projects with 50+ source files, multiple build configurations, and CI pipelines that ship signed firmware images. The same CMakeLists.txt builds on a developer’s laptop, in GitHub Actions, and in a Docker-based release pipeline.

Related Reading

• Fixing I2C Clock Stretching Timeouts on STM32
• JTAG and SWD Debugging Strategies for Embedded Systems
• Bootloader Design for Embedded Systems

References

1. CMake Documentation — “Cross Compiling With CMake” — https://cmake.org/cmake/help/latest/manual/cmake-toolchains.7.html
2. CMake Documentation — “FetchContent Module” — https://cmake.org/cmake/help/latest/module/FetchContent.html
3. CMake Documentation — “Generator Expressions” — https://cmake.org/cmake/help/latest/manual/cmake-generator-expressions.7.html
4. ARM — “CMSIS_5 Repository” — https://github.com/ARM-software/CMSIS_5
5. FreeRTOS — “FreeRTOS-Kernel Repository” — https://github.com/FreeRTOS/FreeRTOS-Kernel
6. STMicroelectronics — “STM32CubeF4 Repository” — https://github.com/STMicroelectronics/STM32CubeF4
